1.10 Clamp quick adjustment jacket/
trouser (option)
With the additional initiator at the folder (1) a valve for
the additional clamp move is controlled.
Adjuste the outer position of the clamp with the two ou-
ter setting screws (2) in a way that there is a distance of
1.5 mm between the folder sole and the inner side of the
main clamp.
1.9 Clamp quick adjustment double/
single piping (option)
An initiator is mounted at the insertion station, which re-
cognizes the folder for double or single piping. The main
clamps will be driven into the correct position dependant
on the inserted folder. These positions are adjustable.

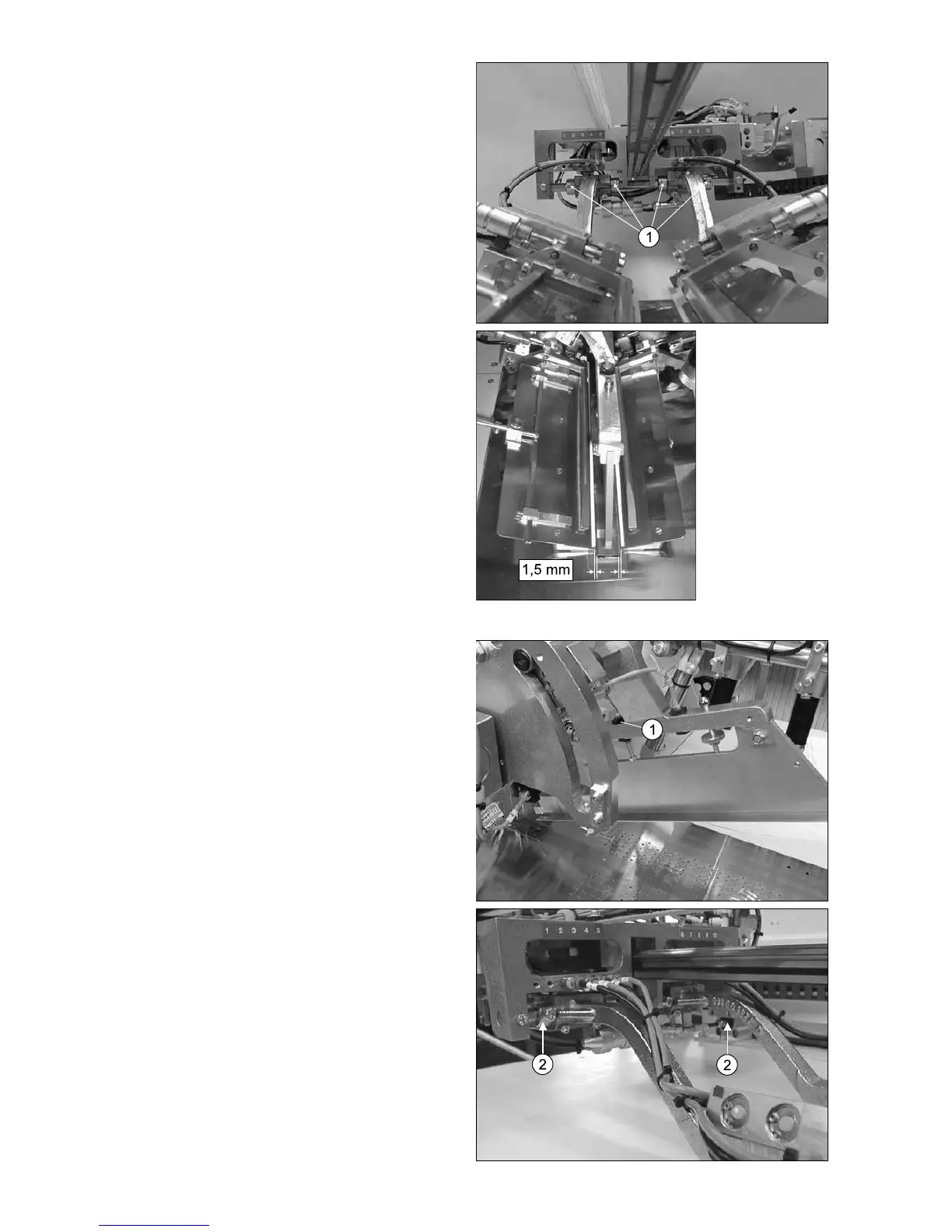

Mount the folder for the double piping and move both
inner setting rings (1) in a way that there is a distance of
1.5 mm between sole edge and main clamp edge (see
lower picture).
Mount the folder for single piping and move the outer
setting ring (1) until there is a distance of 1.5 mm and
the clamp can only move to one side.
Tighten the fixing screws of all setting rings.
