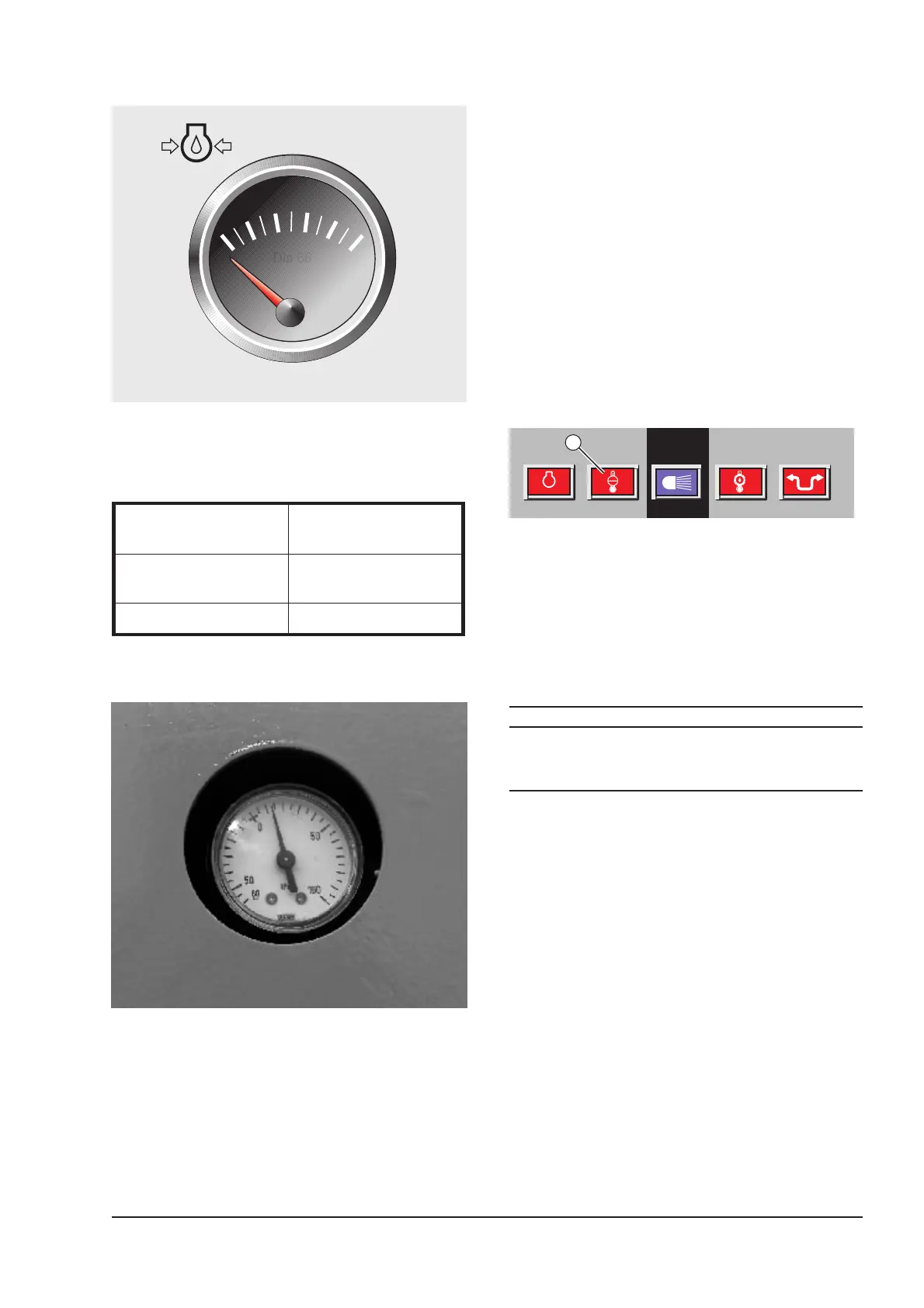

Engine Oil Pressure Gauge
The engine oil pressure gauge is located on the main
instrument panel.
The following pressures are normal:-
Hydraulic Tank Pressure Gauge
The hydraulic tank pressure gauge is located on the
side of the hydraulic tank adjacent to the fluid level
sight glasses.
This gauge indicates the air pressure in the hydraulic
tank .
The hydraulic tank is pressurised by the pneumatic
system and is protected by a pressure relief valve
set at 70 kPa (10 psi).
Warning Indicators
When the ignition switch is turned to the ON (I) posi-
tion the following indicators will either flash or remain
illuminated until the engine has been started:-
• Engine oil pressure indicator (flash).
• Park brake indicator (flash).
• Transmission oil pressure indicator (flash).
• Low water level.
• Battery charge indicator (remain on).
Engine Temperature Warning Indicator
The engine temperature warning indicator is located
on the main instrument panel.
The warning indicator illuminates and a warning
buzzer sounds when the engine coolant temperature
exceeds 95
o
C (203
o
F).
The operator must stop and allow the engine to idle
until temperatures have returned to normal.
CAUTION
Stop and idle the machine if the engine tempera-
ture indicator illuminates. Failure to do so may
cause serious engine damage.
870984-01 13
June 1, 1999
F000381
n/min
1
S005053
S005051
Dia 56
X100
kPa
0
1
2
3
4
5
Minimum operating
pressure
50 kPa (7 psi) @ 500
rpm
Operating pressure 250 to 600 kPa (36 to 87
psi) @ 2 100 rpm
Relief valve setting 650 kPa (94 psi)
