Machine Tie-down Points

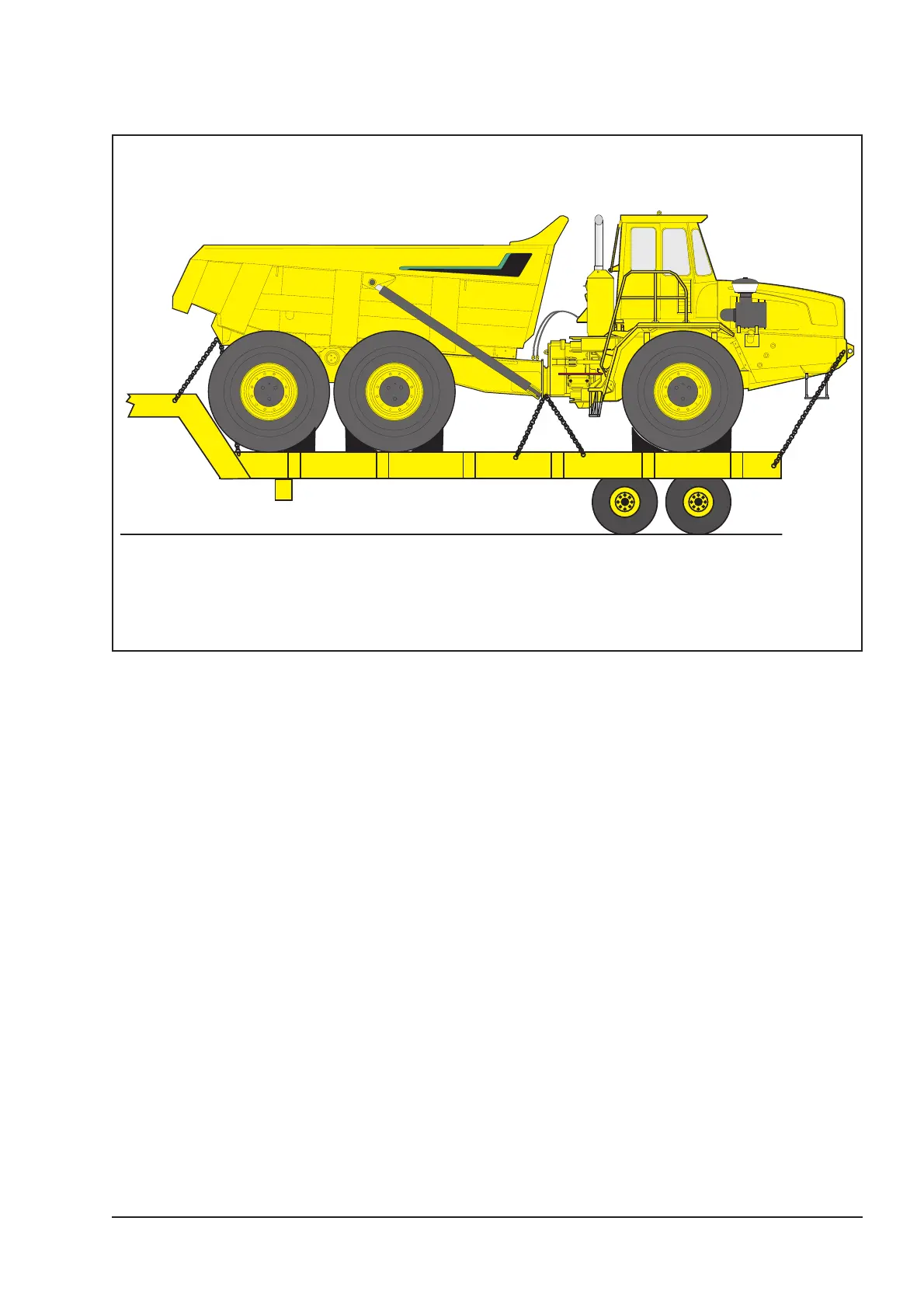

The following figure indicates the machine tie-down points:
Note: Ensure that the articulation safety lock bar is
installed.
Transporting
Transporting the Machine on
Other Vehicles
Safety Rules
Always use the aid of spotters when loading the ma-
chine onto the transporting vehicle.
Ensure the transporting vehicle is capable of safely
carrying the machine.
When driving the machine onto other transportation
vehicles do not install the articulation safety lock bar
until the machine is secured.
When the machine is lifted onto the transportation
vehicle the articulation safety lock bar must be in-
stalled.
Always chock the machine when securing it to the
transportation vehicle.
Driving the Machine onto a
Transporting Vehicle
To drive the machine onto the transporting vehicle
the following must be done:
Position the transporting vehicle’s trailer against
the loading ramp.
Drive the machine onto the trailer very slowly fol-
lowing the instruction of the spotter.
Install the articulation safety lock bar.
Chock all the machine wheels.
Secure the machine to the transporting vehicle’s
trailer with chains.
Drive the transporting machine away slowly.
870984-01 47
June 1, 1999
B40C
X000475
