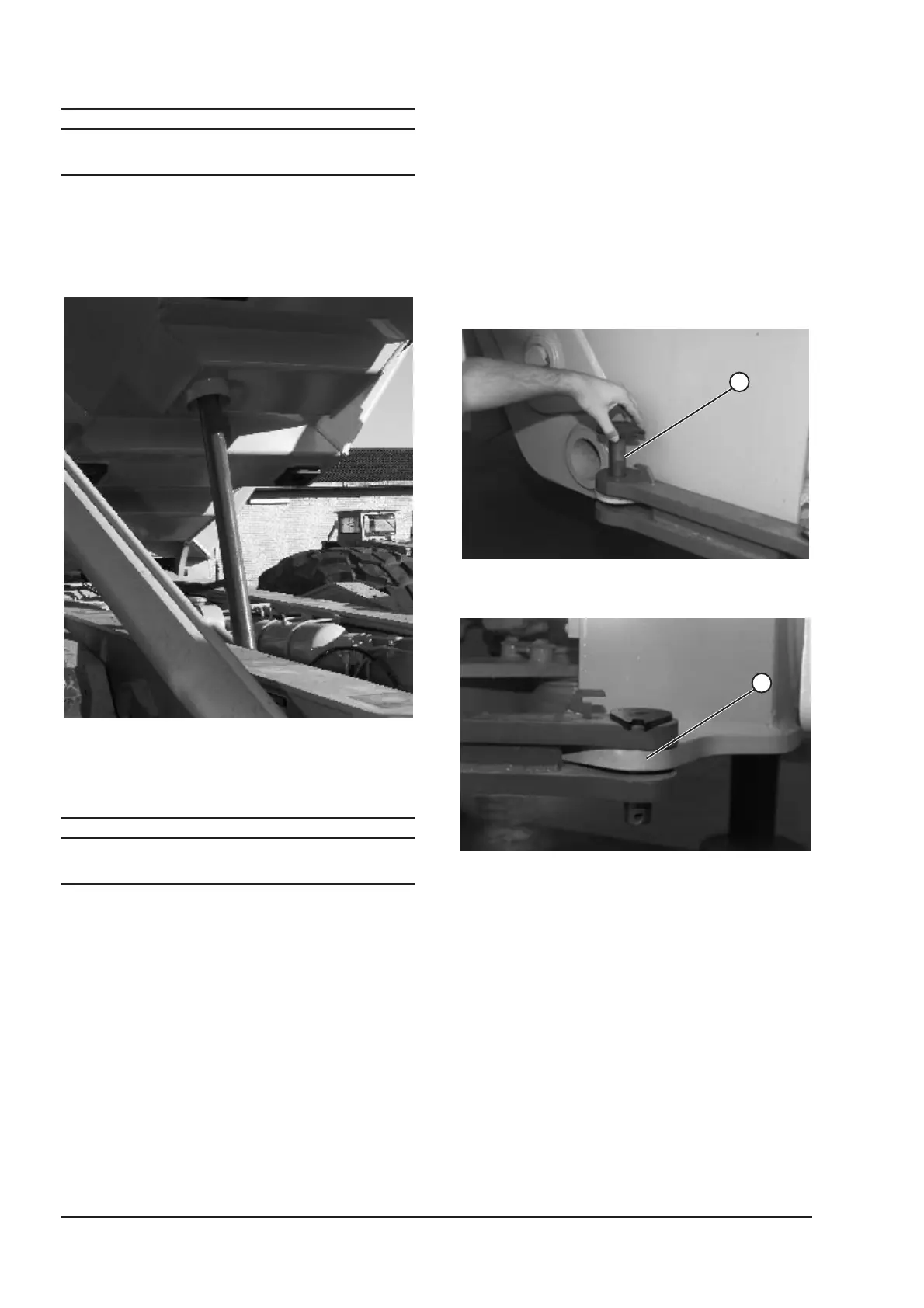

Install the Bin Prop
WARNING
When the bin is raised to perform maintenance
tasks, the bin prop must be installed.
The following procedures must be used to install the
bin prop:
1. The operator, in the cab, must control the bin op-
eration.
2. Raise the bin high enough to allow the bin prop
to be hinged up to the vertical position.
3. Lower the bin until the bin prop is located safely
in the holder.
WARNING
Check to ensure that the bin prop is located
safely inside the holder.
Install the Articulation Safety
Lock Bar
The following procedures must be used to install the
articulation safety lock bar:
1. Park the machine in the straight ahead position.
2. Shut down the engine and apply the park/emer-
gency brake
3. Remove the keys from the ignition switch and at-
tach the “DO NOT OPERATE” warning sign to
the steering wheel.
4. Remove the pin (1) from the articulation safety
lock bar mounting.
5. Swing the articulation safety bar out and locate it
on the lug (1).
6. Fit the pin through the holes to secure in posi-
tion. The steering wheel must be turned so that
the articulation allows the holes to align.
7. Secure the articulation safety bar back in the
travelling position after the service.
50 870984-01
June 1, 1999
F000258
F000863
1
F000862
1
