Operator’s Seat
The operator’s seat is fully adjustable to suit the op-
erator’s individual height, weight and reach.

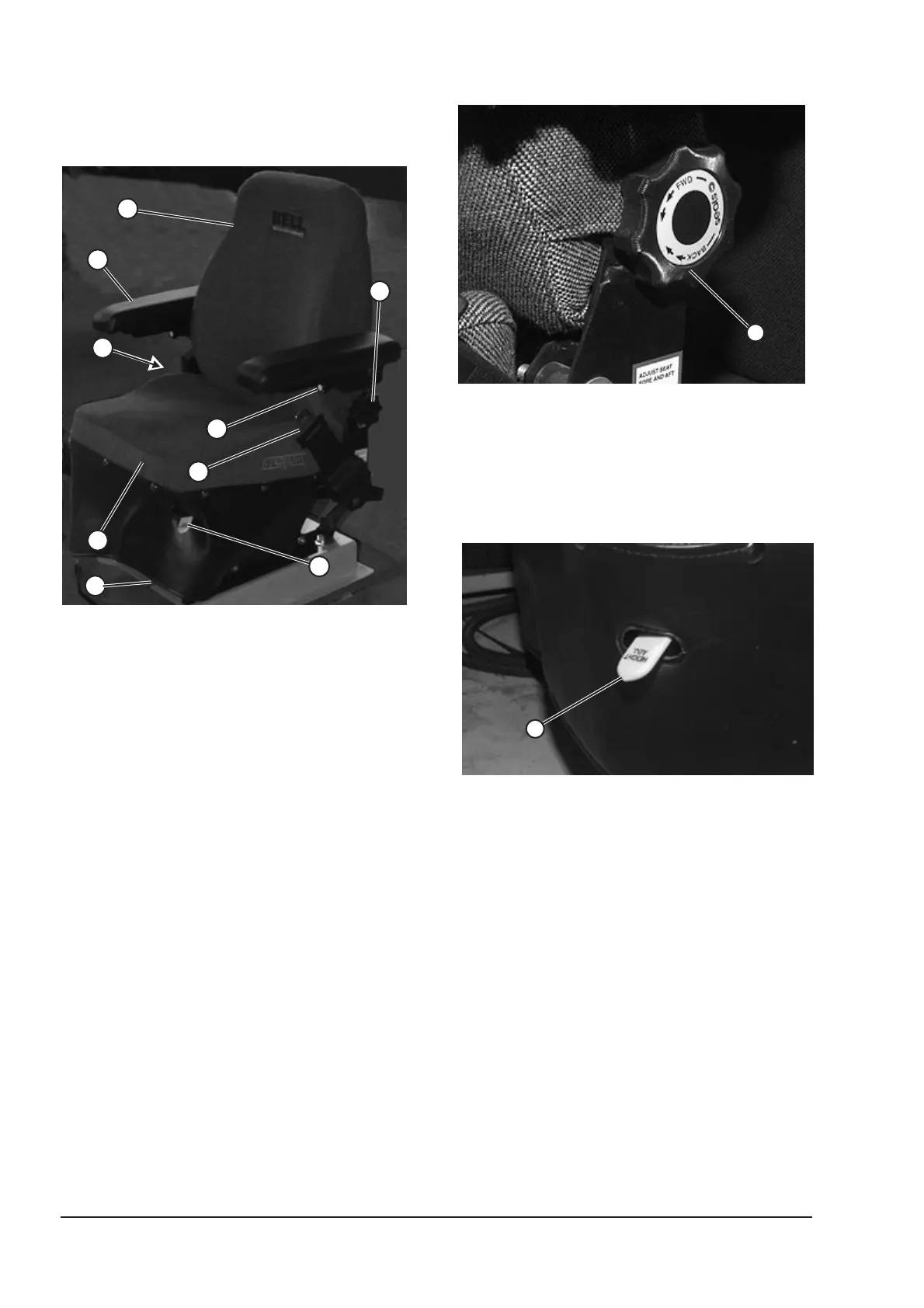

The main components of the operator’s seat are as
follows:
• Back rest (1).
• Seat squab (2).
• Arm rest (3).
• Back rest angle adjustment knob (4).
• Seat squab height adjustment lever (5).
• Weight adjustment lever (6).
• Arm rest angle adjustment knob (7).
• Seat belt (8).
• Backwards/forwards adjustment lever (9).
The seat is adjusted as follows:
Back Rest Angle Adjustment
The backrest adjustment knob (1) is located on the
left of the seat.
Turn the knob to obtain the required angle of the
back rest.
Squab Height Adjustment
The seat squab height adjustment lever (1) is lo-
cated on the front right of the seat.
Pull and hold the adjustment lever up to obtain the
most comfortable driving position.
