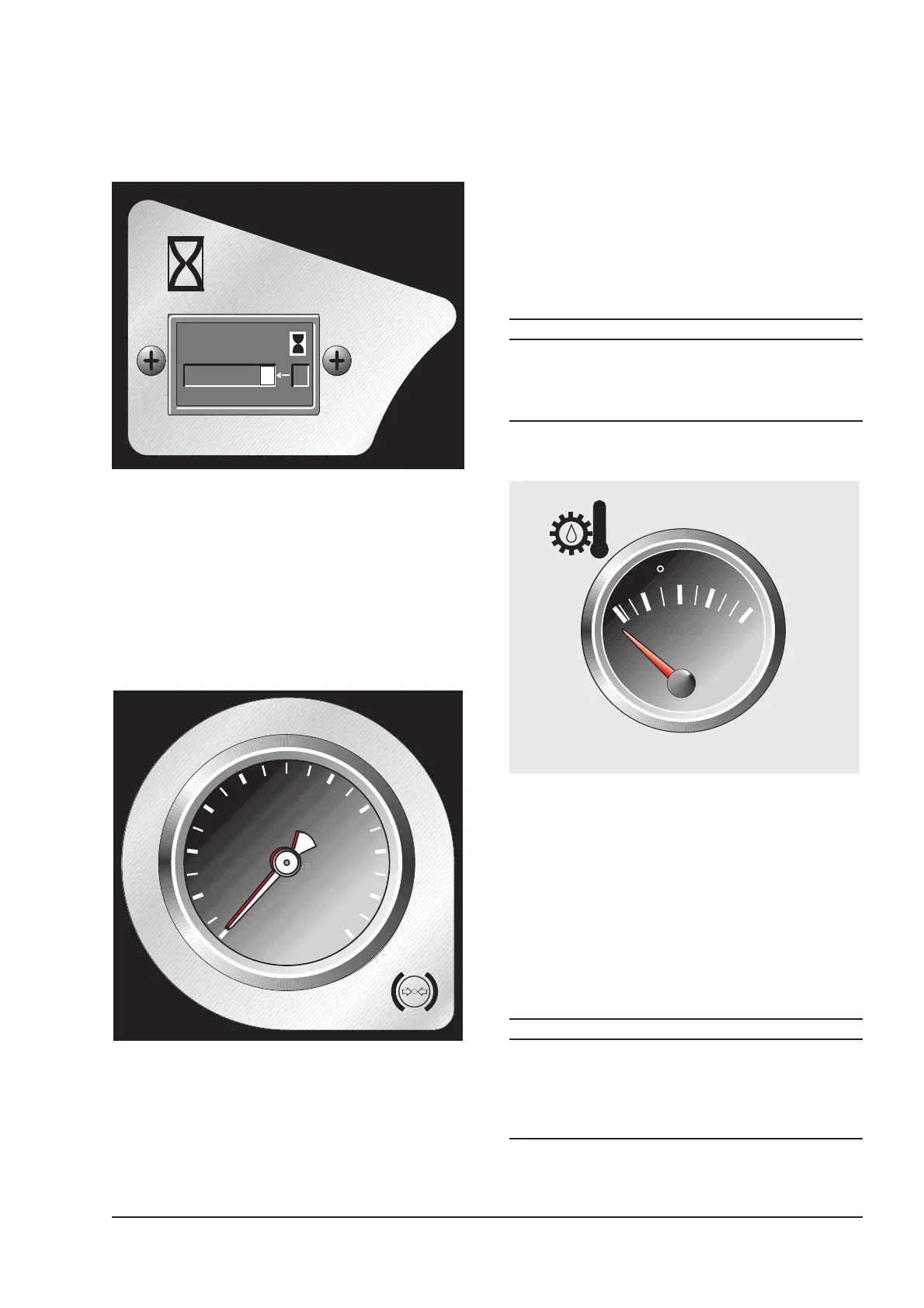

Controls and Instruments
Gauges
Hour Meter (SMR Meter)
The hour meter (SMR) is located on the right side in-
strument panel.
The gauge displays the service meter readings
(SMR) for the machine service life.
The gauge is used to determine the service intervals
for the machine.
Air Pressure Gauge
The air pressure gauge is located on the right side in-
strument panel.
The gauge measures the pneumatic system pres-
sure.
System pressure is 930 kPa (134 psi).
Note: The accelerator pedal is not operational until
the air pressure has reached normal operating pres-
sure 930 kPa (134 psi).
The red needle indicates the pressure in the front
pneumatic circuit.
The white needle indicates the pressure in the rear
pneumatic circuit.
 WARNING
Never operate the machine with the air pressure
below 500 kPa (73 psi). This may cause brake
failure which may result in machine damage,
personal injury and/or death.
Transmission Oil Temperature Gauge
The transmission oil temperature gauge is located
on the main instrument panel .
The gauge measures the temperature of the trans-
mission oil in degrees Celsius (
o
C).
The normal operating temperature is between 71
o
C
and 93
o
C (176
o
Fto230
o
F)
If overheating occurs stop the machine, engage neu-
tral and allow the engine to run at 1 500 rpm until the
transmission temperature returns to normal.
 CAUTION
The maximum operating temperature is 145
o
C
(293
o
F). The machine must not be operated at
this temperature for more than one minute,
longer periods may cause serious damage to the
transmission.
870984-01 11
June 1, 1999
0
QUARTZ
HOURS
0
1
10
I00
0
Hobbs
S005042
Dia 61
0
1
2
3
4
5
X100
kPa
6
7
8
9
10
S005043
Dia 53
Cels.
50
80
100
120
150
S005048
