Hydraulics

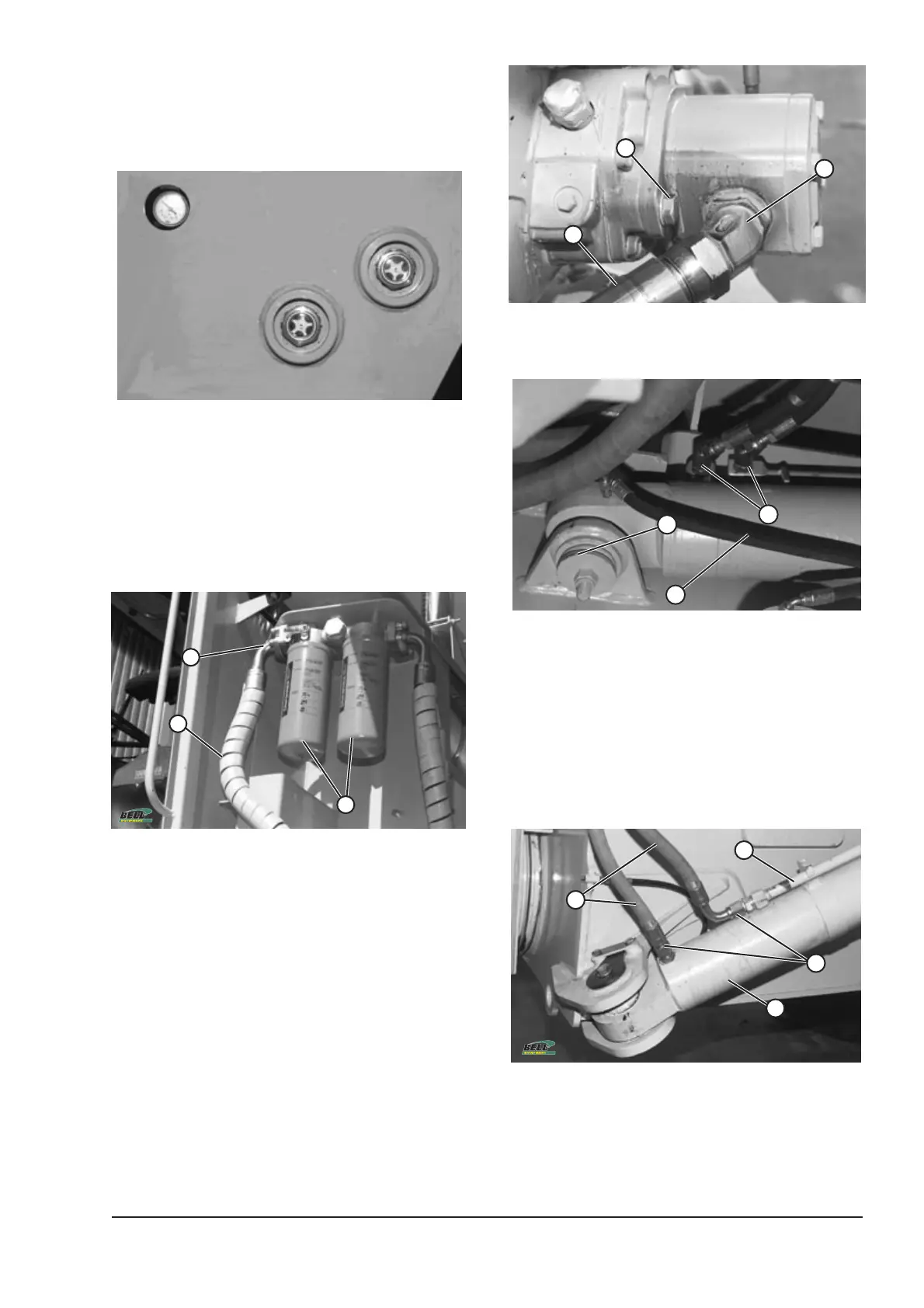

Check the Hydraulic Fluid Level
1. Ensure that the bin is in the lowered position.
2. The fluid level must just show in the upper sight
glass when cold.
3. If necessary replenish the fluid in the hydraulic
tank. Refer to Specifications, Chapter 1 - Rec-
ommended Fuels, Lubricants and Coolant
Additives.
Check the Return Filters, Breather,
Hoses and Connections
1. Check the return filters (1) for damage, security
and leaks.
2. Check that the hoses (2) and connectors (2) are
secure and not damaged.
Check the Hydraulic Pump, Hoses and
Clamps
1. Check the hydraulic pump mounting bolts (1),
connections (2) and hoses (3) for security.
2. Check the hoses and connections for damage
and leaks.
Check the Steering Cylinders, Hoses
and Connections
1. Check both of the steering cylinders for damage
and leaks and ensure that the mountings (1) are
secure.
2. Ensure that the hydraulic hoses and connec-
tions (2) are secure and undamaged.
3. Check that the lubrication hoses (3) are secure
and not damaged.
Check the Tip Cylinders, Hoses, Pipes
and Connections
1. Check the tip cylinders (1) for damage and
leaks.
2. Ensure that the connections (2), pipes (3) and
hoses (4) are secure and undamaged.
870984-01 67
June 1, 1999
F002013
2
3
1
F002121
2
3
1
f000265
F000882
1
2
3
f002051
1
3
2
4
