Bender RCMB300 Series User Manual

Installation and connection
19
RCMB300-series_D00372_01_M_XXEN/06.2019

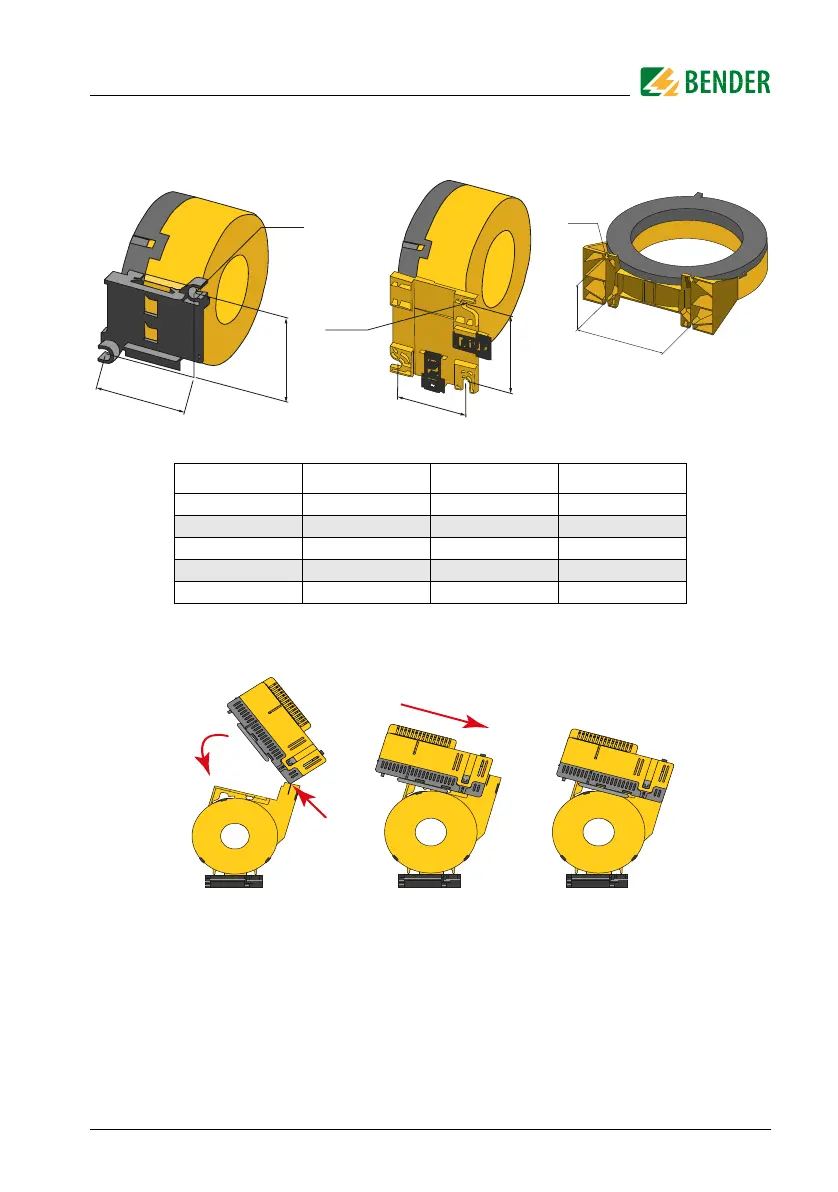

4.2.2 Mountings
all dimensions in mm, tolerance ±0.5 mm
4.3 Assembly
Fig. 4.2: Assembly electronic module
Steps
1. Place the electronic module on the mark on the measuring current transformer.
2. Fold the electronic module down onto the measuring current transformer.
3. Slide the electronic module onto the plug contacts of the measuring current
transformer.
CTBC20(P)/CTBC35(P) CTBC60(P) CTBC120(P)/CTBC210(P)
Type a b c
CTBC20(P) 31.4 49 2 x ø 5.5
CTBC35(P) 49.8 49 2 x ø 5.5
CTBC60(P) 56 66 2 x ø 6.5
CTBC120(P) 103 81 4 x ø 6.5
CTBC210(P) 180 98 4 x ø 5.5
a
b
c
a
b
c
a
b
c
3
1
2
