Bender RCMB300 Series User Manual

Frequency responses
51
RCMB300-series_D00372_01_M_XXEN/06.2019

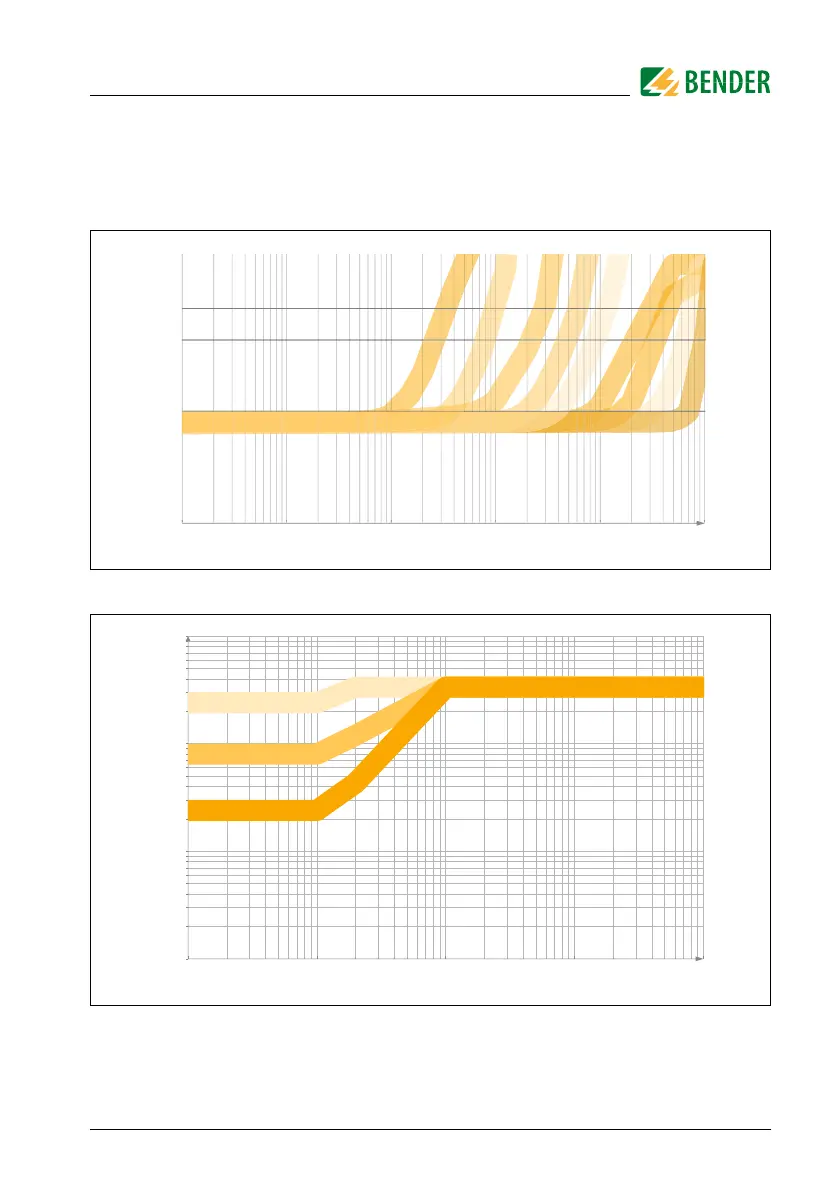

9. Frequency responses
9.1 Low passes LP
9.2 Type B+
1 10 100 1000 10000 100000
TP 60 Hz
TP 180 Hz
TP 500 Hz
TP 10 kHz
TP 5 kHz
TP 2 kHz
TP 1 kHz
TP 50 kHz
TP 20 kHz
I
∆n
f (Hz)
10 x I
∆n
1 x I
∆n
5 x I
∆n
1
10
100
1000
10 100 1000 10000 100000
I
∆n
= 300 mA
I
∆n
= 30 mA
I
∆n
= 100 mA
I
∆n
(mA)
f (Hz)
