GrandPrix (GP-7 Series) Two-Post Lifts 17 P/N 5900209 — August 2018 — Rev. C2

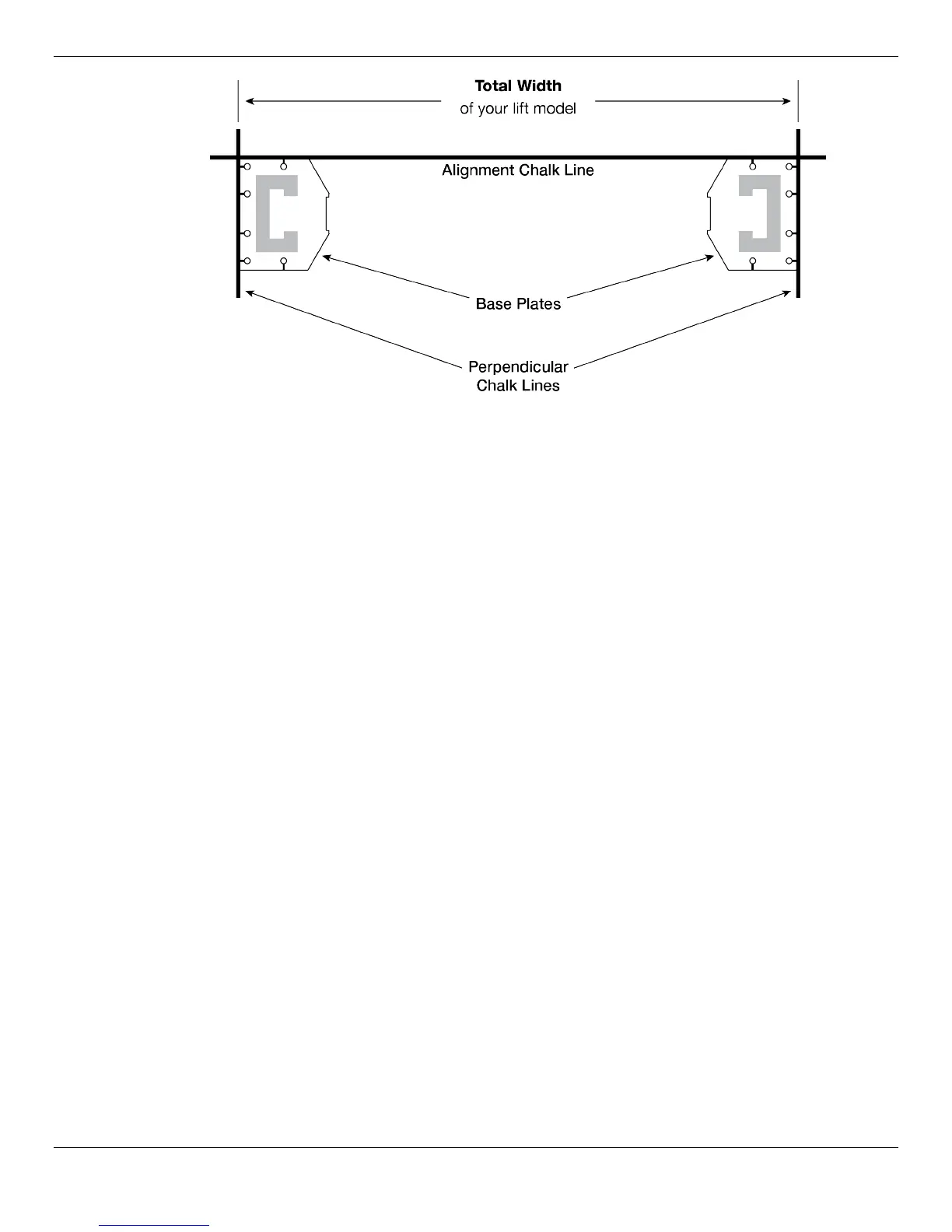

To add Chalk Line Guides:
1. Decide where you want to locate the lift.
2. Create an alignment chalk line at the desired location.
The alignment chalk line must be longer than the Width Overall setting for your lift model.
3. Create two perpendicular chalk lines at 90° angles to the alignment chalk lines.
The two perpendicular chalk lines must be x distance from each other, where x is the Width
Overall setting for your lift model.
4. When you move the posts into position, put the corners of the base plates into the corners created
by the Chalk Line Guides.
