Installing the Safety Assemblies and the Safety Cable
Each GP-7 lift has two Safety Assemblies: one on the Powerside Post (above the Power Unit) and the
other on the Offside Post.
The two Safety Assemblies work together to take the load off the Hydraulic Cylinder and the lifting
cables once the lift has reached the desired working height. The Safety Assemblies need to be
disengaged at the same time so that the Lift Arms lower together. In order to do this, the two Safety
Assemblies have to be connected to each other via the Safety Cable, which was routed through the
Top Trough earlier in the installation.

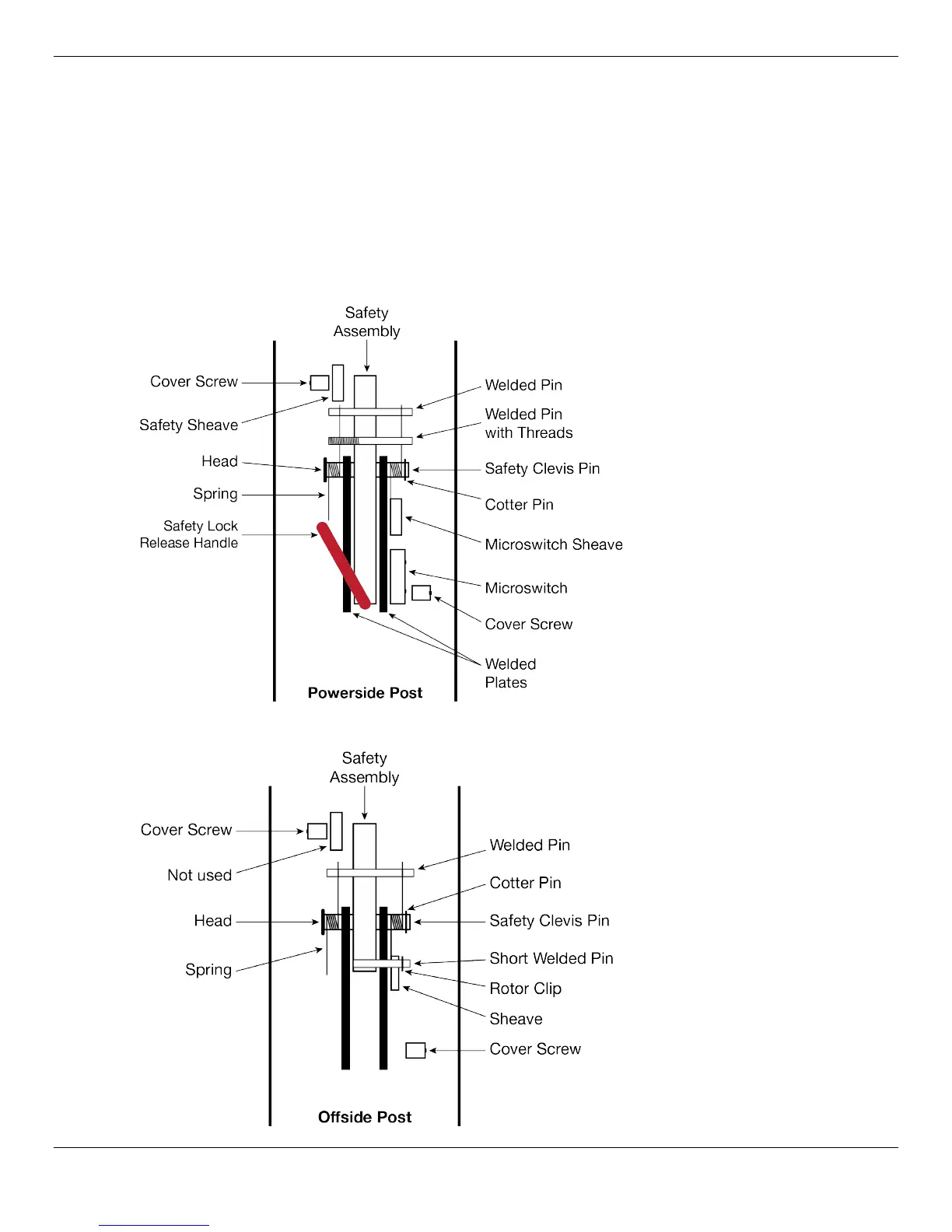

The following drawing shows the components of the Powerside Safety Assembly.
The following drawing shows the components of the Offside Safety Assembly.
