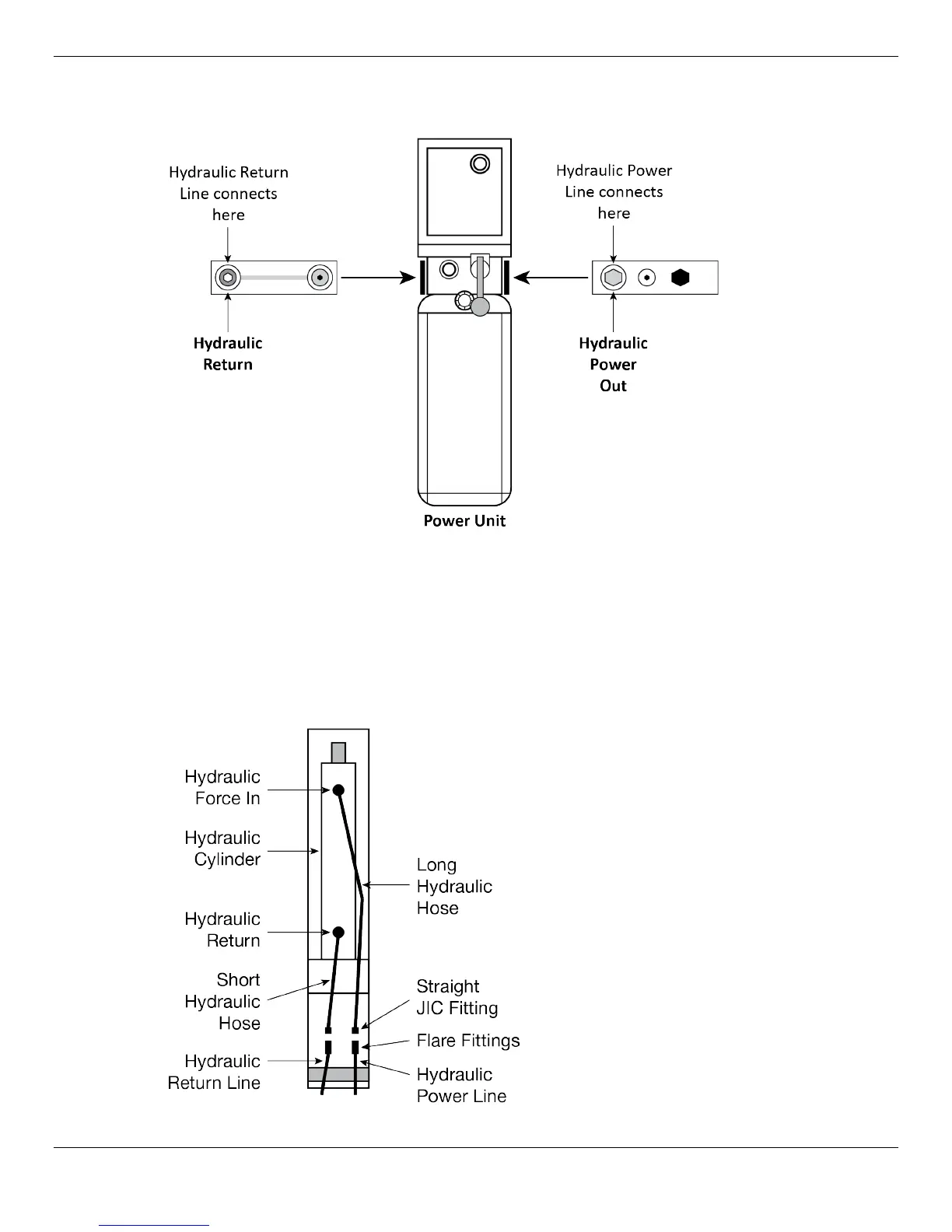

3. Remove the plastic plugs from the appropriate ports on the Power Unit: the Hydraulic Return port
(left
rear connector) and the Hydraulic Power Out port (right front connector).
4. For the Hydraulic Return port, install a 90° hydraulic fitting. Connect that 90° fitting to the fitting on
the bottom of the Hydraulic Return Line.
5. For the Hydraulic Power Out port, connect a 90° ORB fitting. Connect that 90° ORB fitting to the
fitting on the bottom of the Hydraulic Power Line.
Use thread seal tape on the NPT
threads only .
6. In the Top Trough, install a straight JIC fitting to the to the end of each Hydraulic Hose, then install
Flare Fittings to the end of each Hydraulic Line.
7. Connect the Hydraulic Hoses to the corresponding Hydraulic Lines.
