GrandPrix (GP-7 Series) Two-Post Lifts 39 P/N 5900209 — August 2018 — Rev. C2
Connecting the Lifting Cables
The threaded ends of the Lifting Cables, which were installed in the Top Trough earlier in the
installation, connect to the Lift Heads inside the Offside and Powerside Posts; two Lifting Cables per
post.
To connect the Lifting Cables:

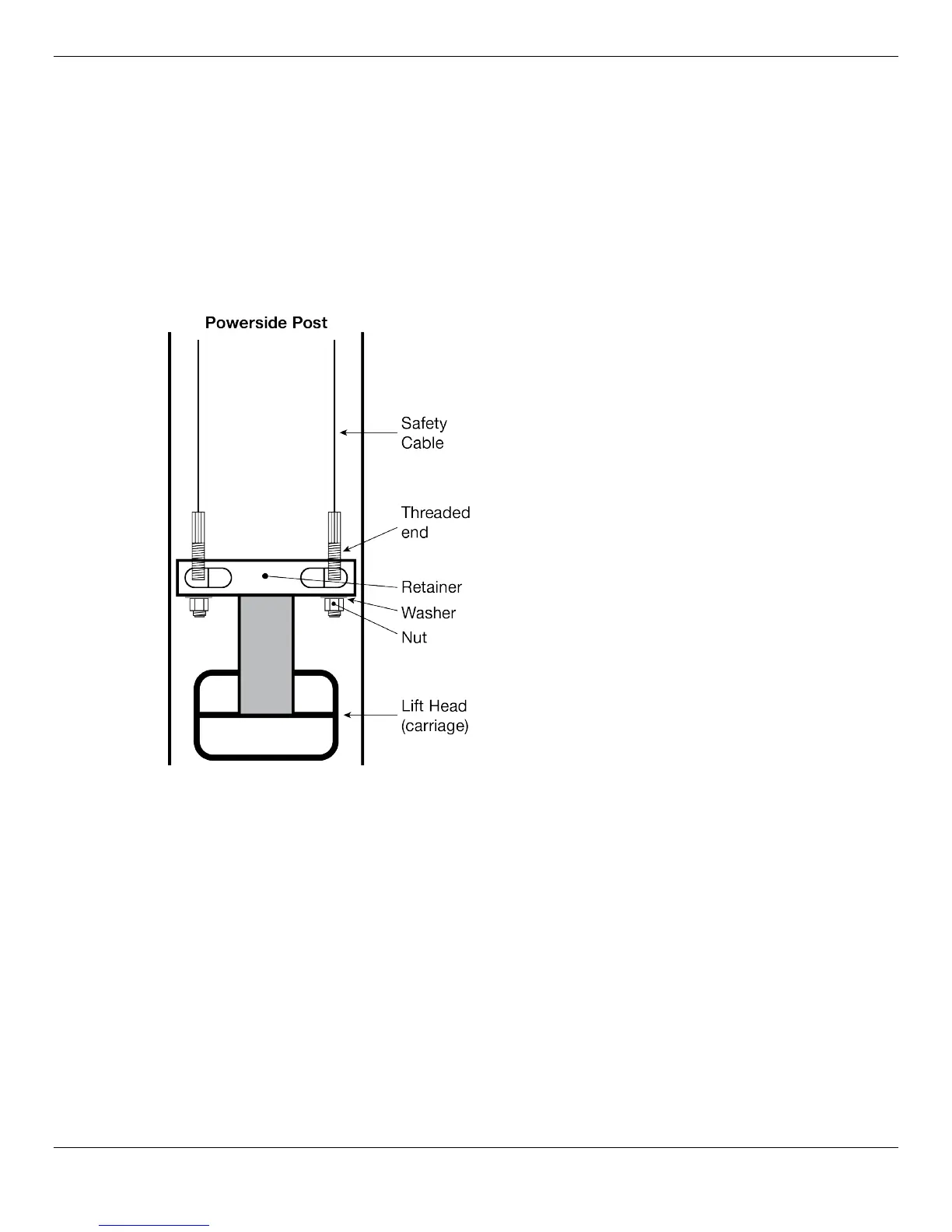

1. Inside the Powerside Post, insert the threaded ends of the two Lifting Cables through the retainer
on the top of the Lift Heads.
Make sure the threaded ends of the Lifting Cables on the Powerside are inserted to the
outside
of the retainer.
2. Place one M18 washer and M18 Nyloc nut on the threaded cable end; tighten the nuts until taut,
making sure both cables have equal tension.
