GrandPrix (GP-7 Series) Two-Post Lifts 40 P/N 5900209 — August 2018 — Rev. C2

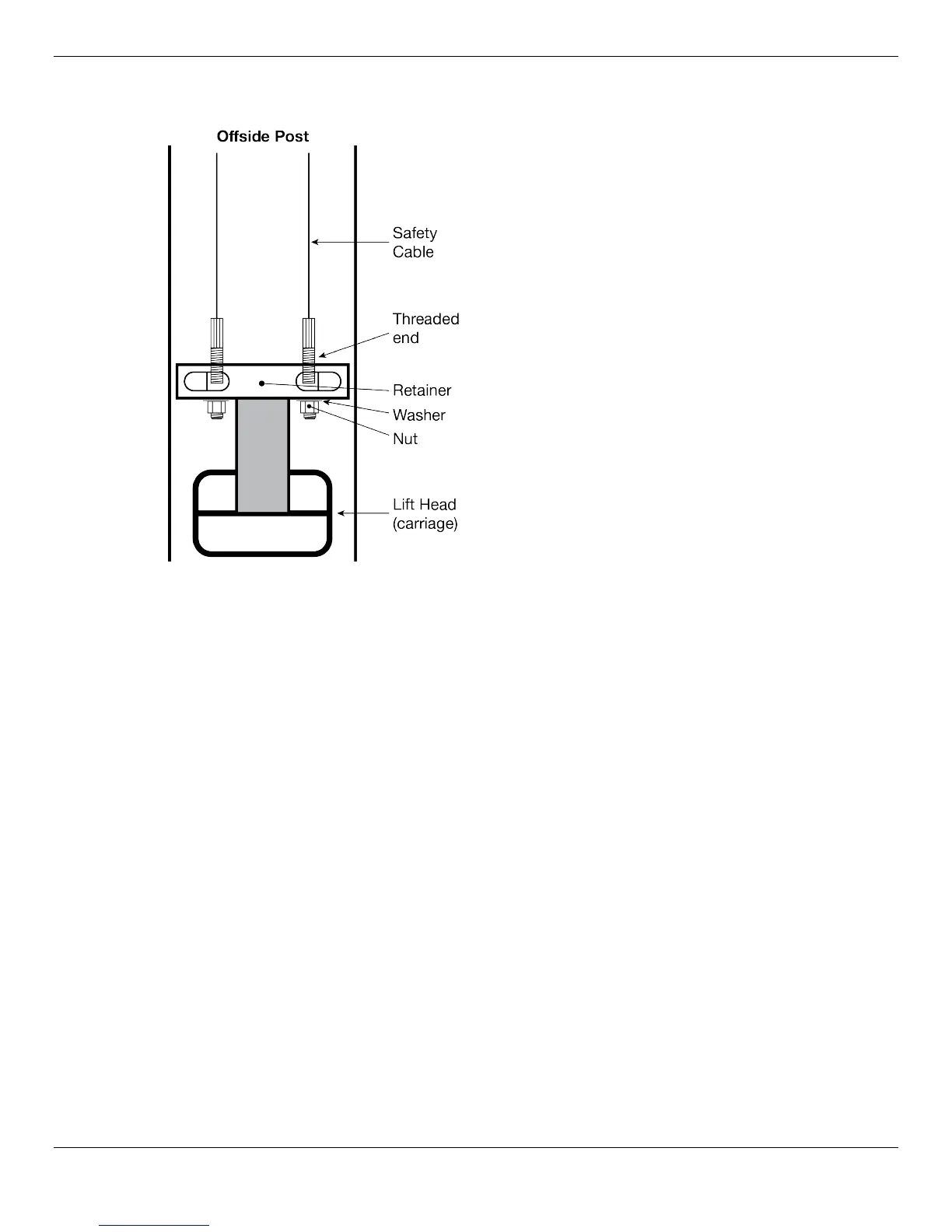

3. For the Offside post, repeat the same process, except the threaded ends of the cables are
inserted to the
inside
of the retainer.
4. Place one M18 washer and M18 Nyloc nut on the threaded cable end; tighten the nuts until taut,
making sure both cables have equal tension.
Installing the Safety Covers
There are two Safety Covers, one for each Safety Assembly. Refer to Installing the Safety
Assemblies and the Safety Cable for more information about Safety Assemblies.
The Safety Covers are
not
interchangeable:
• The Offside Post Safety Cover can be installed in either orientation.
• The Powerside Post Safety Cover can only be installed in one orientation: there is a slot on the
front for the Safety Lock Release Handle and a hole in the bottom for the Microswitch Cable.
Both Safety Covers connect to their posts via holes in the upper left and lower right corners.
To install the Safety Covers:
1. On the Offside Post, make sure the cover screws are installed in each block.
There must be enough space between the block and the screw to fit the Safety Cover.
2. Put the Safety Cover into position, then tighten both cover screws.
3. On the Powerside Post, make sure the cover screws are installed in each block.
4. Put the Safety Cover into position.
Make sure the Safety Lock Release Handle comes through the slot on the front and that the
Microswitch Cable comes through the hole on the bottom.
5. Tighten both cover screws.
