Installing the Lift Arms
Lift Arms are what actually raise vehicles off the ground.
Your lift has four arms:
• Two Straight Arms: install them at the rear of the lift.
• Two Angled Arms: install them at the front of the lift.
To install the lift arms:

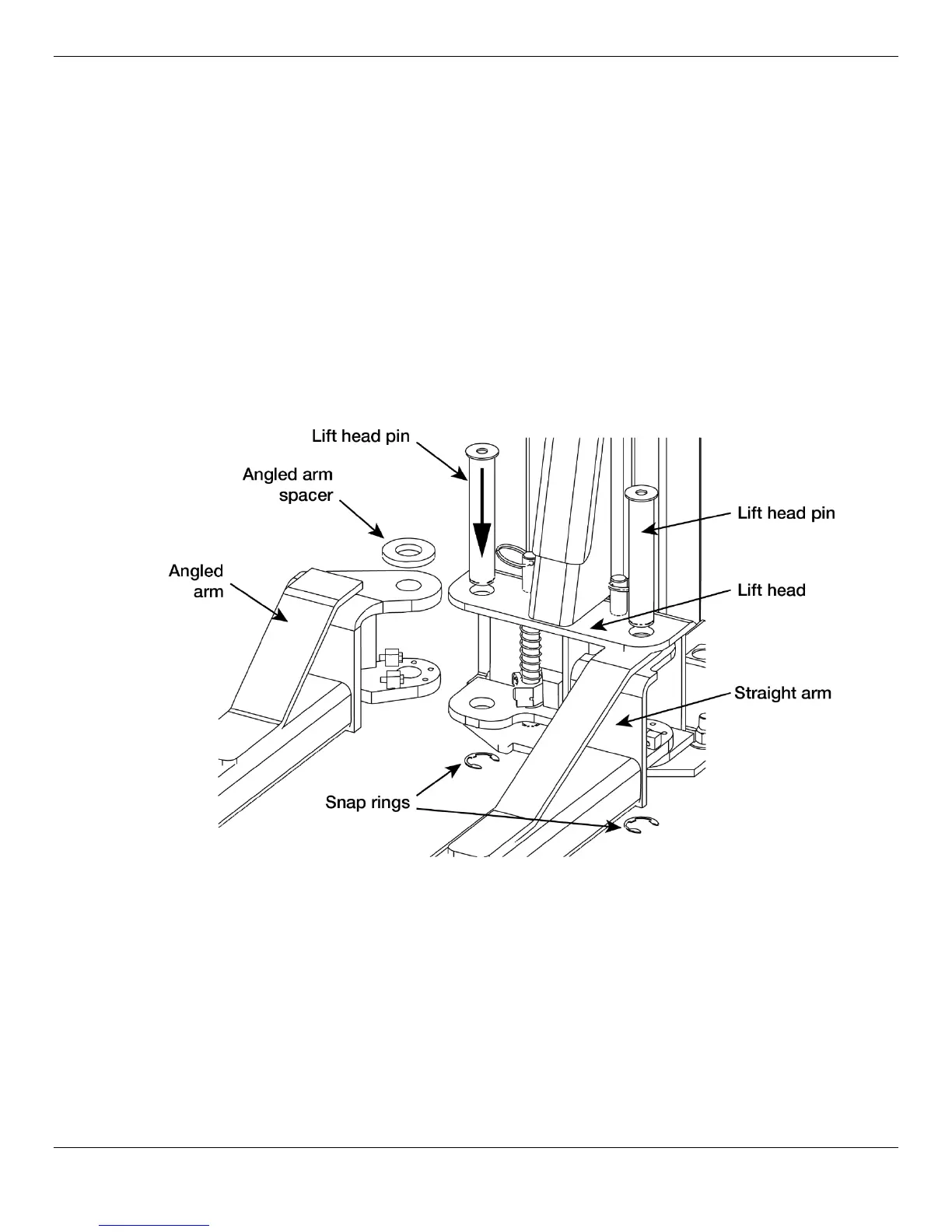

1. Raise a Lift Head two to three inches off the ground.
2. Move a Lift Arm into place in the Lift Head.
3. Install a Lift Head Pin through the Lift Head and the Lift Arm, then push a Snap Ring into its
grooves on the bottom of the Lift Head Pin.
Make sure an Angled Arm Spacer is in place on top of each Angled Lift Arm; they are not
necessary for Straight Lift Arms.
4. Repeat Steps 2 and 3 for each of the other Lift Arms.
⚠ DANGER The gears must be positioned and adjusted properly. Confirm proper gear
engagement prior to operation of the lift. Periodic inspection and adjustment is also
required. Failure to properly inspect and adjust the arm restraint gears on all four
arms can result in damage to the vehicle, injury, or even death.
