19

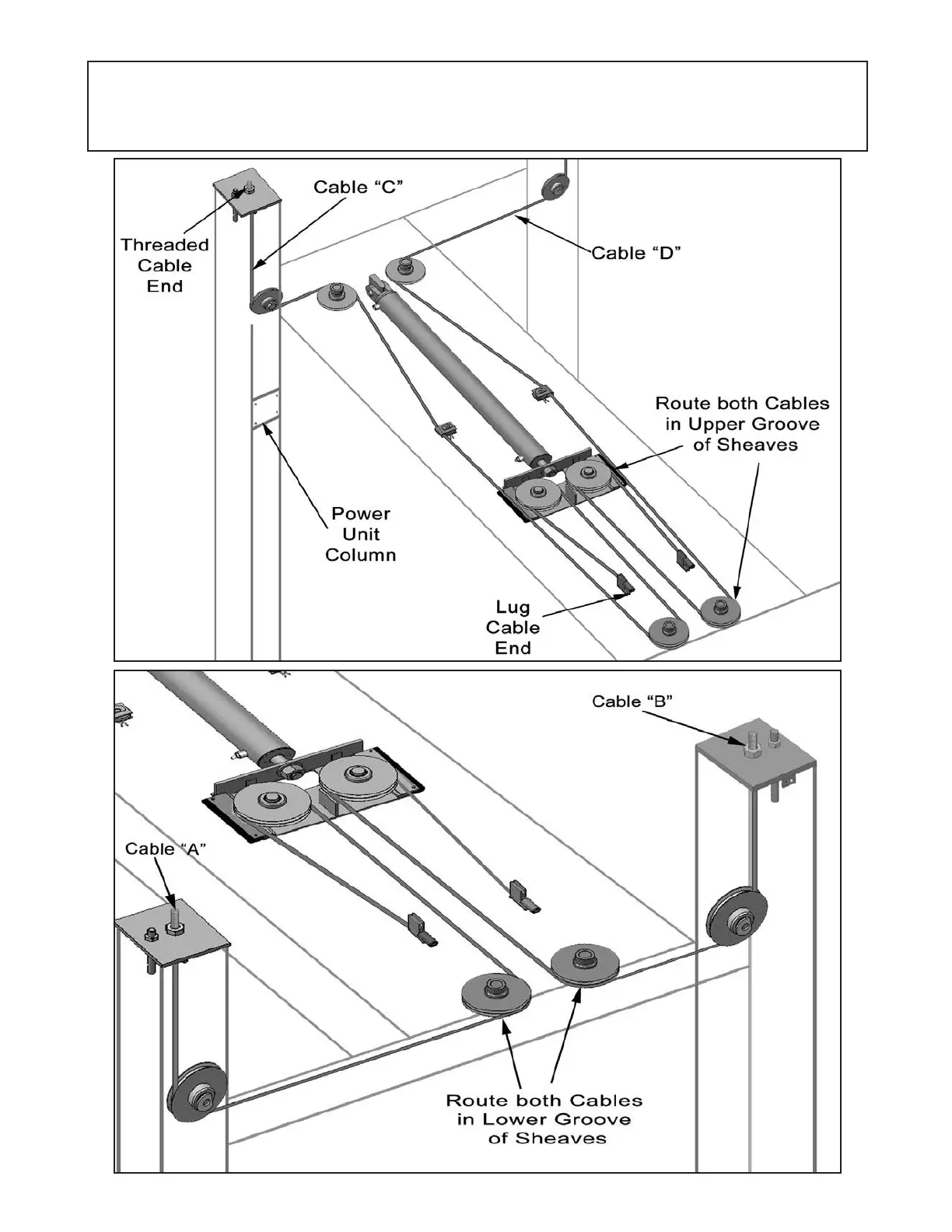

Cable Routing Diagrams
Please review the following diagrams and Cable List.
Install Lifting Cables “C” and “D” in the upper grooves of the Sheaves rst.
