BendPak HD-7PBX - HD-7 P;W, HD-7500 SERIES ASSEMBLY VIEW

8
When removing the lift from shipping angles, pay close attention as the posts
can slide and can cause injury. Prior to removing the bolts, make sure the posts
are held securely by a fork lift or some other heavy lifting device.
HD-7P/W, HD-7500 SERIES

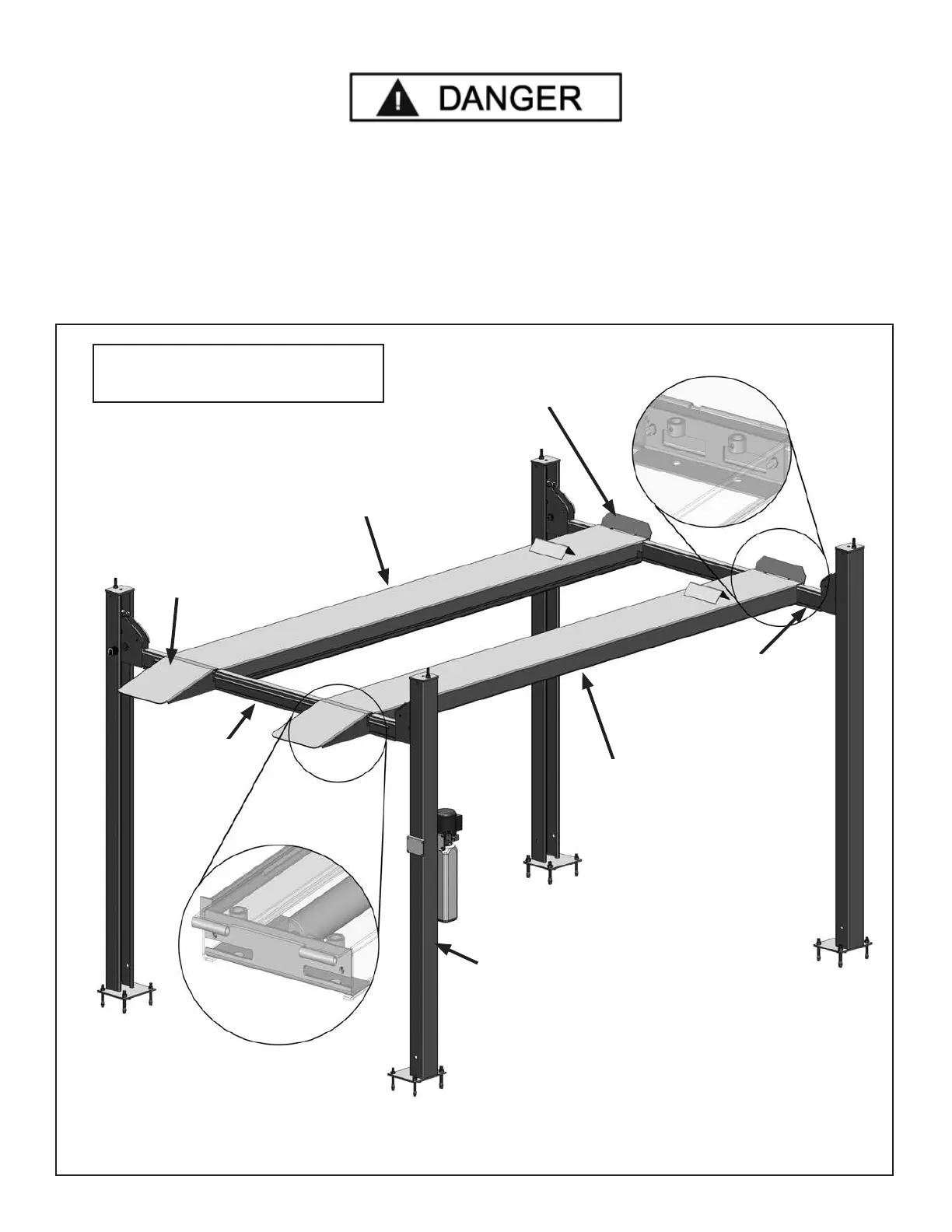

ASSEMBLY VIEW
Large Windows
(4 Pulleys)
Small Windows
(2 Pulleys)
Drive Up
Ramps
Rear
Crosstube
Front Crosstube
Offside Runway
Tire Stops
Power Unit
Column
Powerside
Runway
