VALUES ARE STATED IN FOOT POUNDS (ft-lb)
SAE 0-1-2 SAE Grade 5 SAE Grade 8 SOCKET HEAD CAP SCREW
CLASS 4.8 CLASS 8.8 CLASS 10.9 CLASS 12.9
Bolt Size
(SAE)
Bolt Size
(Metric)
1/4-20 M6 x 1.0 6 10 14 13
5/16-18 M8 x 1.25 12 19 29 31.4
3/8-16 M10 x 1.50 20 33 47 62
7/16-14 32 54 78
1/2-13 M12 x 1.75 47 78 119 108
9/16-12 M14 x 2.00 69 114 169 173
5/8-11 M16 x 2.00 96 154 230 269
3/4-10 M18 x 2.50 155 257 380 372
7/8-9 M22 x 2.50 206 382 600 716
3/4 Anchor Bolts 75 MIN 110 MAX
Torque Recommendations

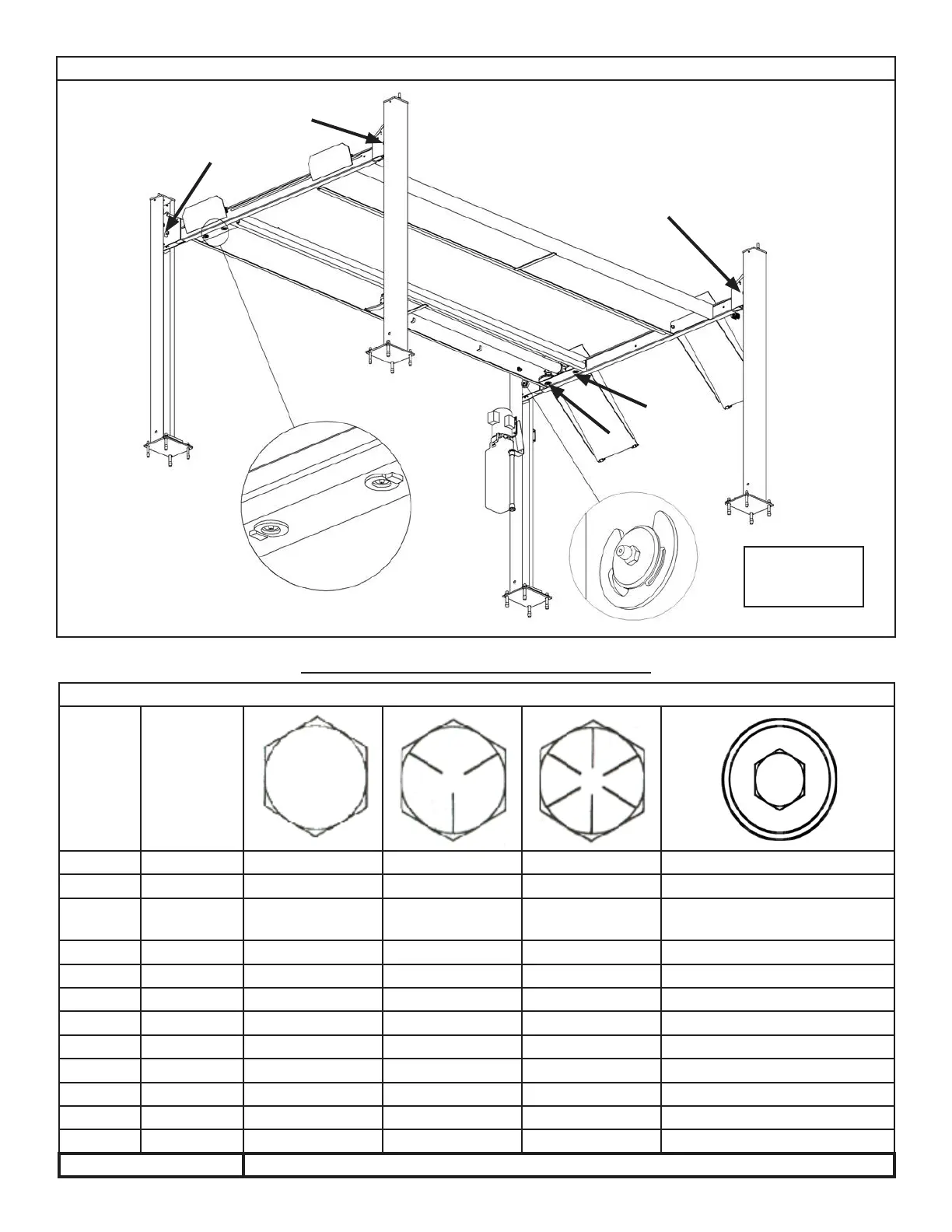

Grease Port / Lubrication Locations
Lubricate
Once A Week
