HD-973P Series Multi-Level Parking Lift 23 P/N 5900076 — Rev. B3 — January 2024
Installing the Crosstubes
Your Lift has a total of four Crosstubes, two per Platform:
Upper Platform:
• Crosstube with Large Windows: holds two
Large
Double Cable Sheaves, on the Non-Power
Post Side of the Lift.
• Crosstube with Small Windows: holds two Cable Sheaves, perpendicular to the Power Post.
Lower Platform:
• Crosstube with Medium Windows: holds two
Medium
Double Cable Sheaves, on the
Non-Power Post Side of the Lift.
• Crosstube with Small Windows: holds two Cable Sheaves, perpendicular to the Power Post.
Important It is possible to install the Crosstubes incorrectly in several different ways. Take your
time and get it right the first time.

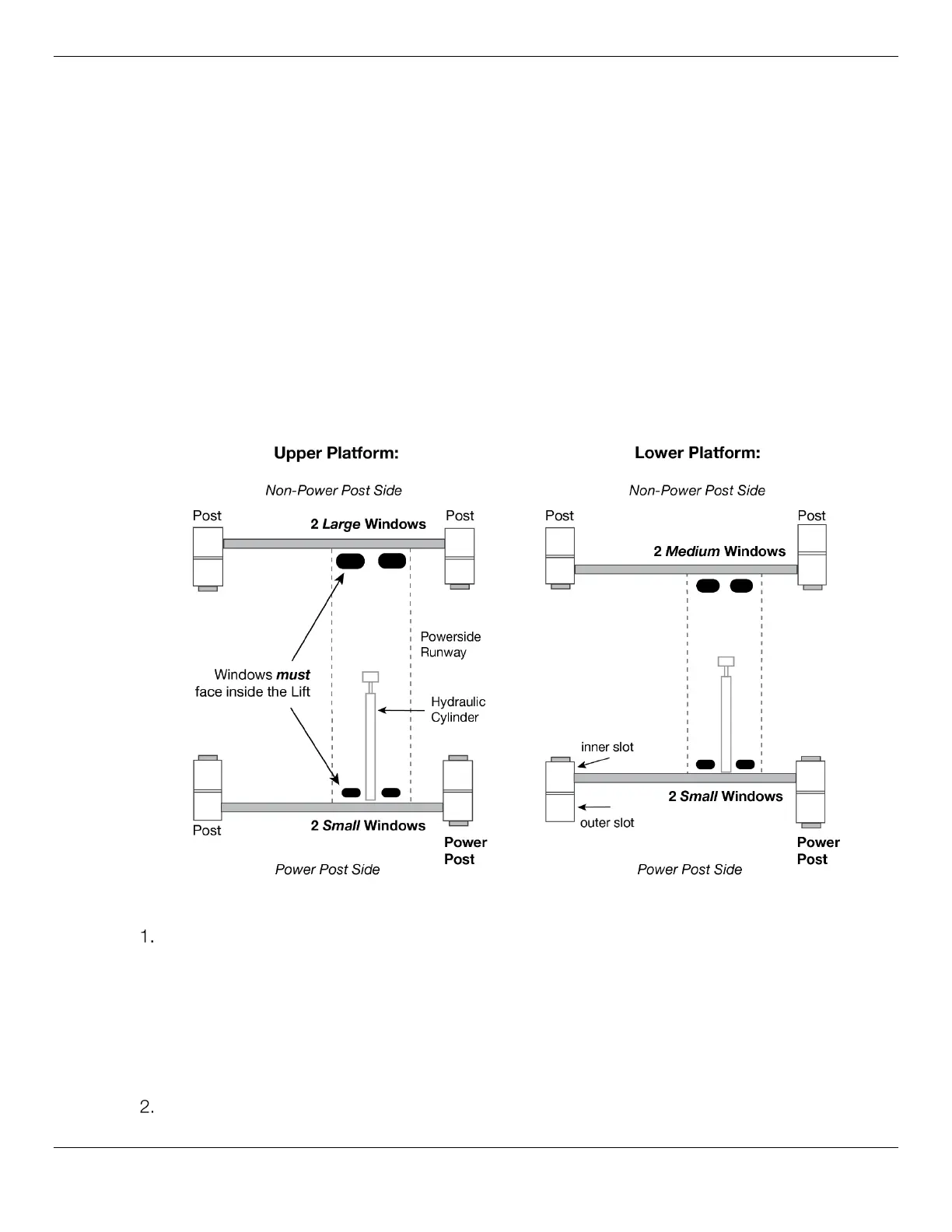

The following drawing shows both Crosstubes for each Platform.
To install the Crosstubes:
Decide which Platform you want to start with, then find the two Crosstubes that go with that
Platform.
NOTICE The Crosstubes with Small Windows are the same for both Platforms, so it
does not matter what Platform they go to; the other two Crosstubes are not
interchangeable.
Make sure you have the correct Crosstubes for the Platform on which you are
working.
With the Posts on the ground, slide the Crosstubes into place.
