Removing the Sheaves
To route the Lifting Cables, you need to first remove the Cable Sheaves and Gusset Sheaves.
When you remove the Sheaves, keep all the components together. You will be reinstalling them
at the same location, using the same components; do not mix the components for each Platform.

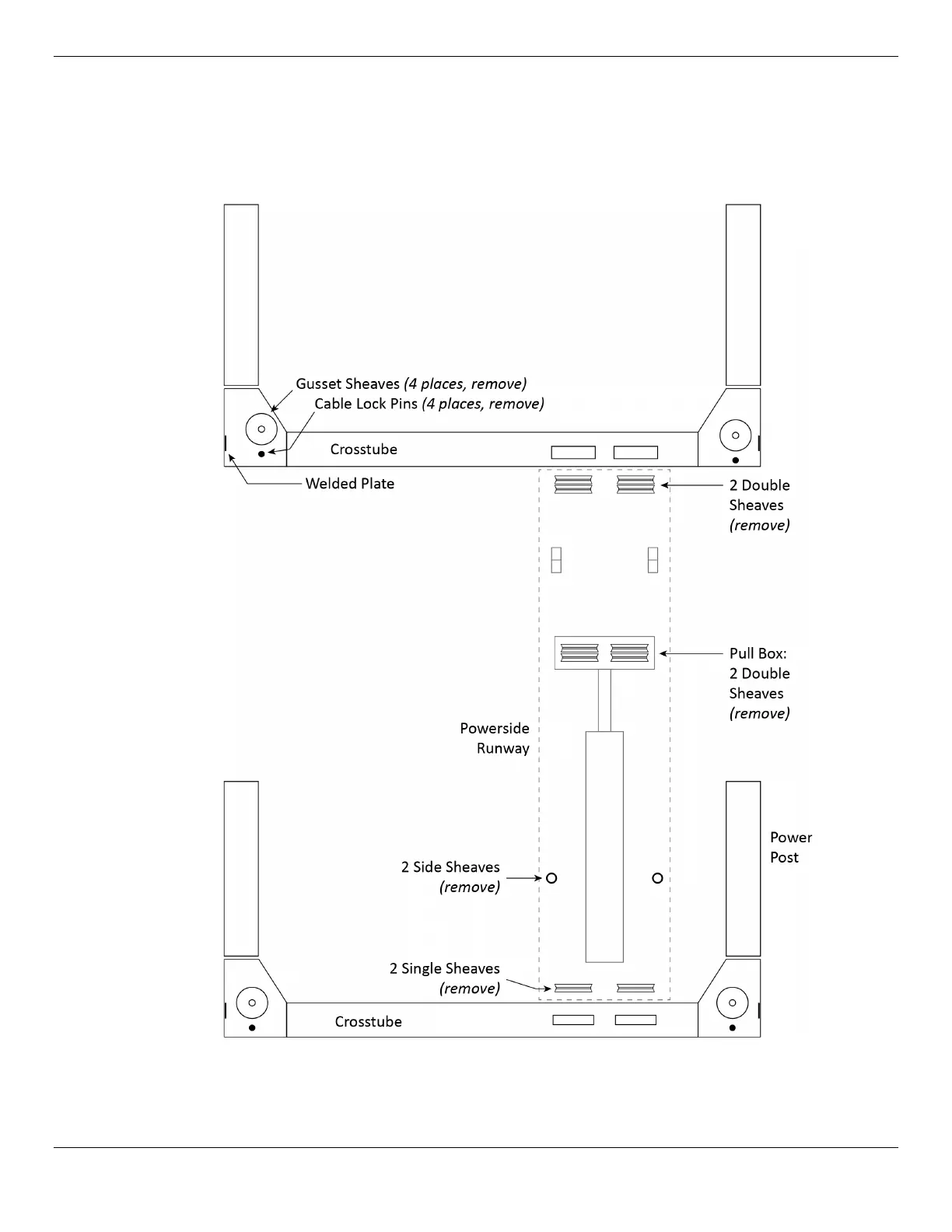

Pull Box and Side Sheaves are for Upper Platform only. Not to scale. Not all components shown.
