Installing the Runways
Your Multi-Level Lift has two sets of Runways. Each Platform has a:
• Powerside Runway: Holds the Hydraulic Cylinder underneath it. Has a hole on the outside that
lets you route the Hydraulic Hose, Air Lines, and Return Line, (also a Microswitch for the Upper
Platform only) to the Power Unit. Cable routing starts under the Powerside Runway.
• Offside Runway: The Offside Runway does not have a Hydraulic Cylinder under it, nor are there
any Cables under it.
You can double check this by:
• Looking under the Runways. Only the Powerside Runways have a Hydraulic Cylinder underneath.
• Finding the ~1.5-inch-wide hole in the side of the Powerside Runway at the Power Post for the
Flex Tube (which holds the Air, Return, and Hydraulic Hoses).

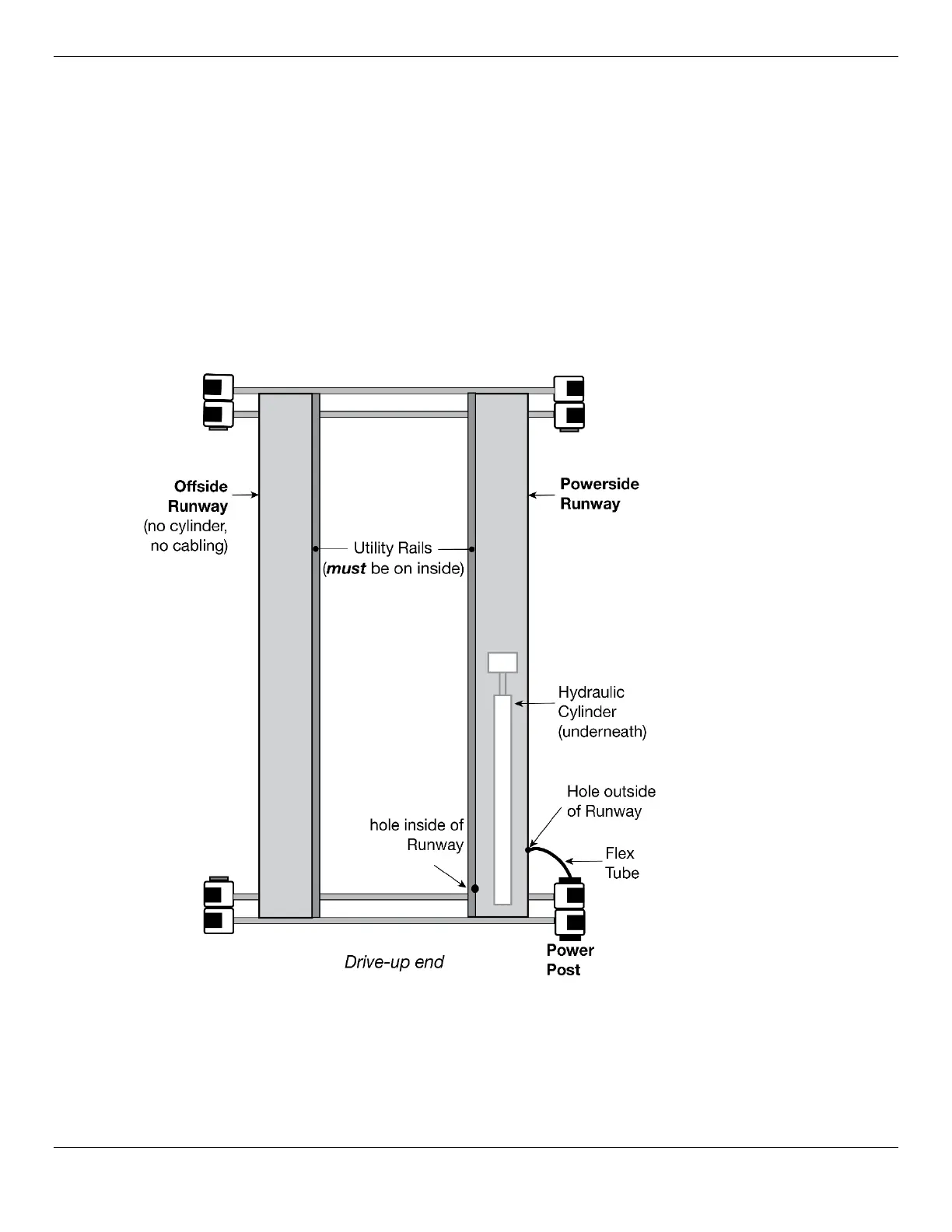

Top View. The opening on the inside of the Powerside Runway is for the Upper Platform only. Not to
scale. Not all components shown.
