HD-973P Series Multi-Level Parking Lift 32 P/N 5900076 — Rev. B3 — January 2024
Use a Forklift or Shop Crane to raise the Runways and move them into position.
⚠ WARNING Pay close attention when moving the Runways into position; they are very heavy
and very long, and could shift position or fall, potentially causing severe injury.
To install the Runways:
We recommend beginning with the Lower Platform and then continue with the Upper Platform.
Correctly orient the Powerside Runway and the Offside Runway.
On the underside of the Powerside Runway, make sure the Sheaves have been removed.
See Removing the Sheaves for more information.
Use a Forklift or Shop Crane to pick up the Powerside Runway and move it into place on the
Powerside of the Lift.
Make sure the Utility Rail is on the inside.
Bolt the Powerside Runway into place, two M12 x 1.75 x 90 mm Bolts on each end going into the
Crosstubes.

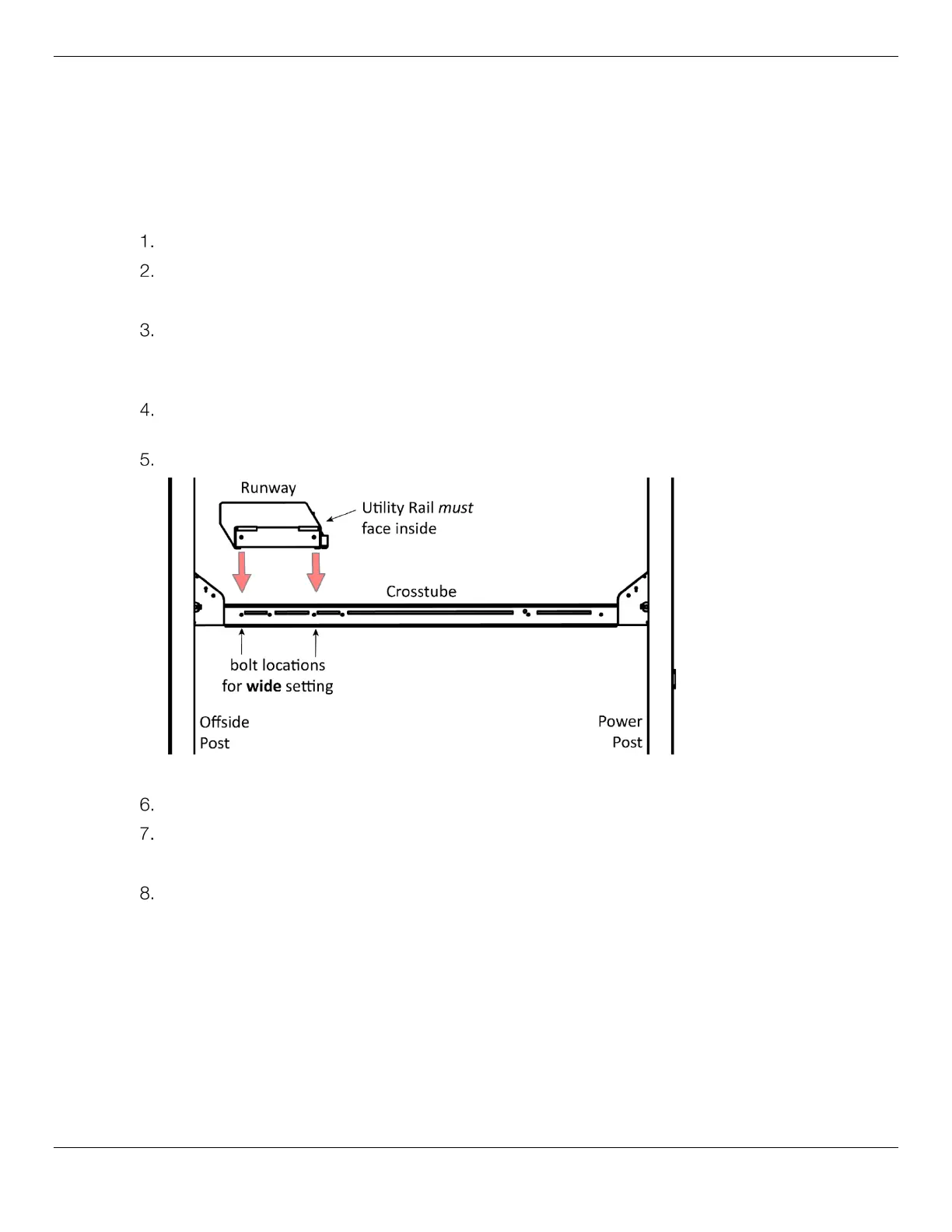

Using a Forklift or Shop Crane, pick up the Offside Runway and position it in the wide setting.
Front view. Not all components are shown.
Bolt the Offside Runway into place, using two more M12 x 1.75 x 90 mm Bolts.
Make sure the Primary Safety Locks are engaged.
You do not want anyone going under the Runways unless the Safety Locks are engaged.
Repeat Steps 1 through 7 for the Upper Platform.
⚠ WARNING Do not continue with the installation until you have visually confirmed that all four
Safety Locks are engaged on each Platform. If they are not engaged, the Runways
could move or fall, possibly causing personal injury or product damage.
