HD-973P Series Multi-Level Parking Lift 34 P/N 5900076 — Rev. B3 — January 2024
Routing the Lifting Cables on the Upper Platform
The Upper Platform uses two Cable Anchor Plates along the sides of the Powerside Runway to hold
the Button ends of the Lifting Cables.
Lifting Cables A and B are routed through two Cable Sheaves and then one Gusset Sheave; Cables C
and D route through three Cable Sheaves, one Side Sheave, and one Gusset Sheave.

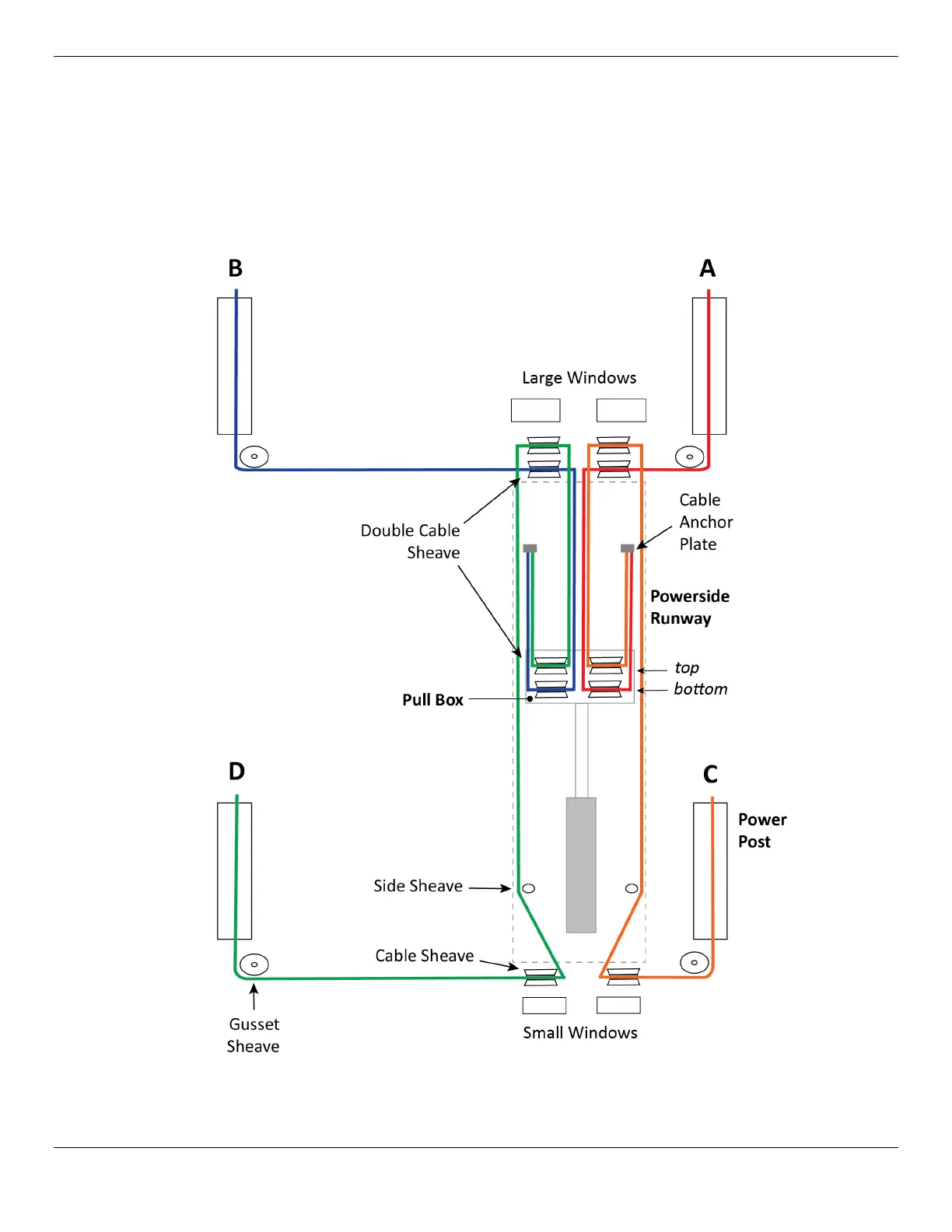

The following drawing shows the routing for all four Lifting Cables on the Upper Platform.
Cable Sheaves separated from Windows for clarity. Crosstubes not shown. Not to scale.
To Next Page
