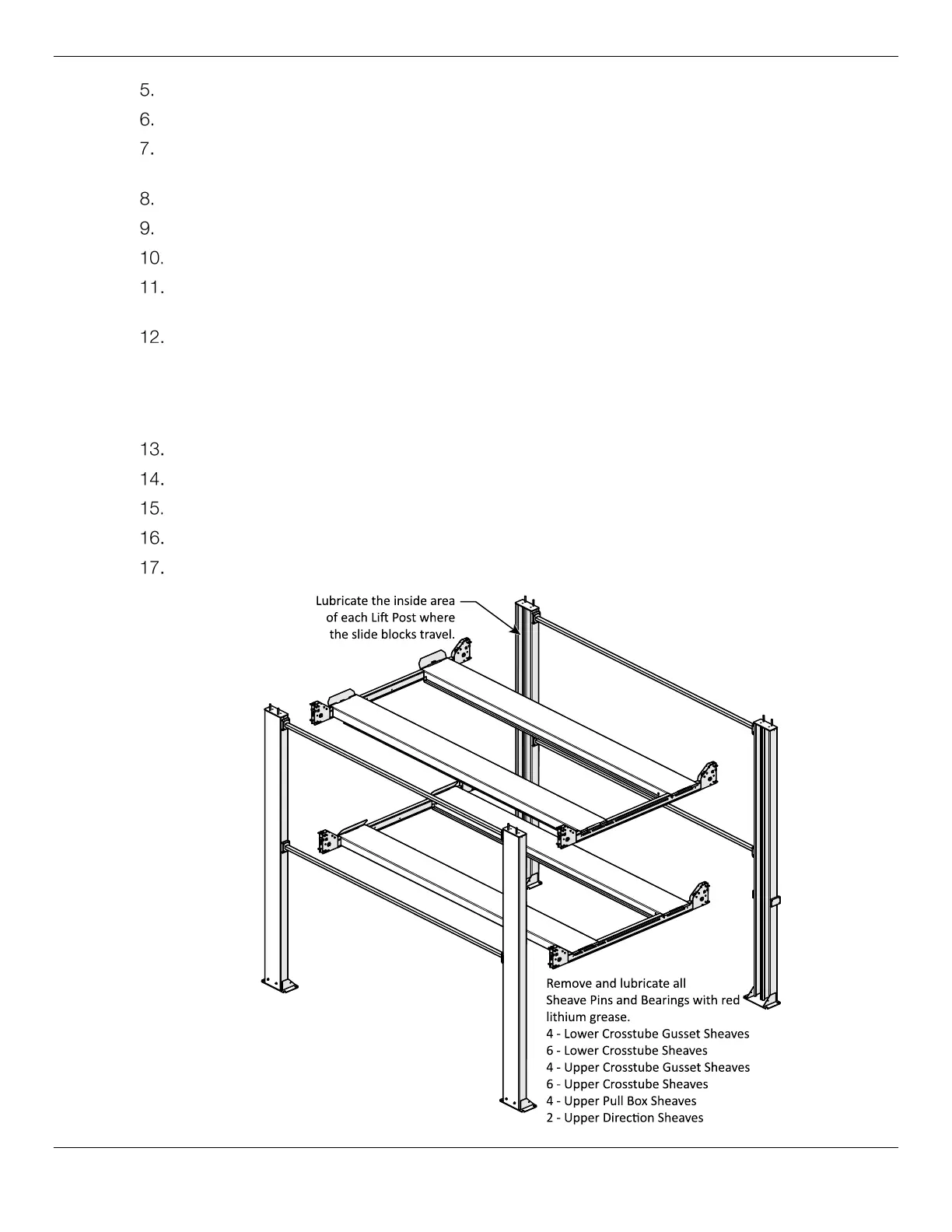

Remove the Sheave Pin and the Sheaves one at a time.
Clean and then lubricate the Sheave Pin and the Sheave Bearing with red lithium grease.
Place the Lift Cable(s) back in the Sheave Groove(s), replace the Sheaves then secure the Sheave
Pin. Verify all Lift Cables are routed correctly without crossing over adjacent cables.
Repeat the process with all remaining Sheaves and Sheave Pins.
Remove excess grease with a rag.
Using a spray lithium grease, lubricate the outside of all Cable Sheaves in the Crosstubes.
After lubricating all Sheaves and Pins on the Lower Platform apply power to the Lift and raise it off
its Safety Locks, then lower the Platform to the ground.
Lower the Upper Platform to a comfortable height for the work and rest it on the nearest Safety
Lock, then lockout/tagout power to prevent unintended operation.
⚠ WARNING Verify all four corners of the Upper Platform are resting on their Safety Locks before
lubricating the Lift.
Perform steps 5 through 10 on the Upper Platform Sheaves and Sheave Pins.
Verify all Lift Cables are routed correctly without crossing over adjacent cables.
Lubricate the inside of all four Lift Posts (where the Crosstubes travel) with a white lithium grease.
Raise and lower both platforms to aid in distributing the lubrication.
Clean and remove any excess lubricant from around the Lift and on the Lift surfaces.
