MD-6XP Mid-Rise Scissor Lift 32 P/N 5900108 — Rev. F — March 2020
Move the Lift
The MD-6XP is portable, which means you can move it around your work space. This can be done
using the Tow Cart; the Tow Cart has a Tow Pin at the Base that hooks onto the Lift so you can move
it around.
If you take the Lift outside, make sure to bring it back inside once you are done using it.
⚠ DANGER Never expose the Power Unit motor to rain or other damp environments. Damage
to the motor caused by water is
not
covered by the warranty.
To move the Lift:
1. Make sure the Lift is fully lowered.
2. Unplug the Power Cord and wrap the cord around the Power Unit Stand.
3. Place the Power Unit Stand carefully on the Lift to move the two together.
⚠ CAUTION The Power Unit is heavy; use care when moving it.
4. Take the Tow Cart and hook the Tow Pin into the Latch on Lift Base near the bottom of the
Hydraulic Cylinders.

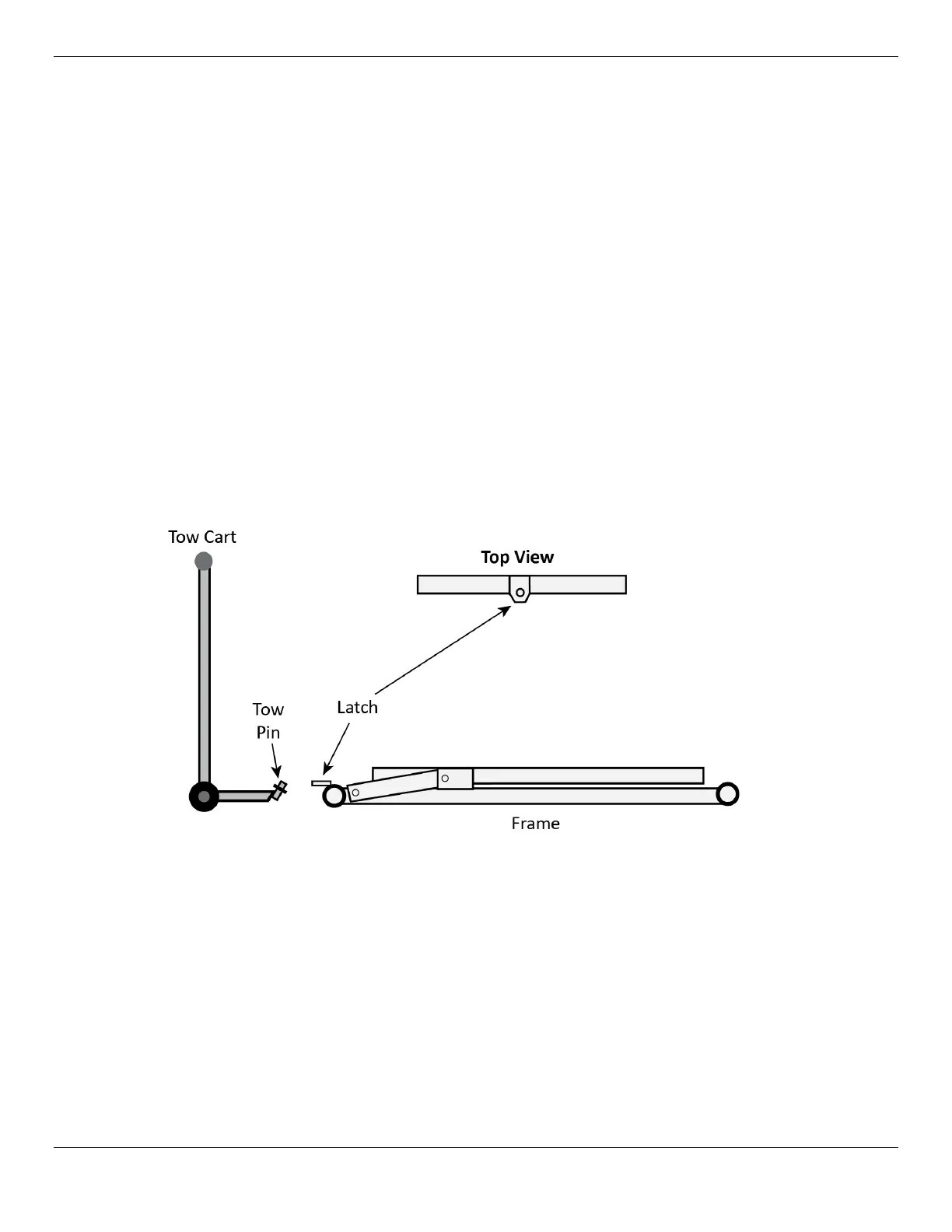

The following drawing shows the components used to move the Lift.
Drawing combines a side view and top view of the Frame. Not drawn to scale. Not all components
shown.
5. Using a downward force, push the Tow Cart to raise the Lift onto its rear wheels, and then carefully
move the Lift to the desired location.
