MD-6XP Mid-Rise Scissor Lift 31 P/N 5900108 — Rev. F — March 2020
Lowering a Vehicle
This section describes how to lower a Vehicle that is raised on the Lift.
To lower a Vehicle:
1. Check the items listed in Safety Considerations.
If you find any issues, resolve them
before
starting to lower the Vehicle.
2. On the Power Unit, press and hold the Up Button for a few seconds.
This moves the Lift off the Safety Lock on which it was engaged.

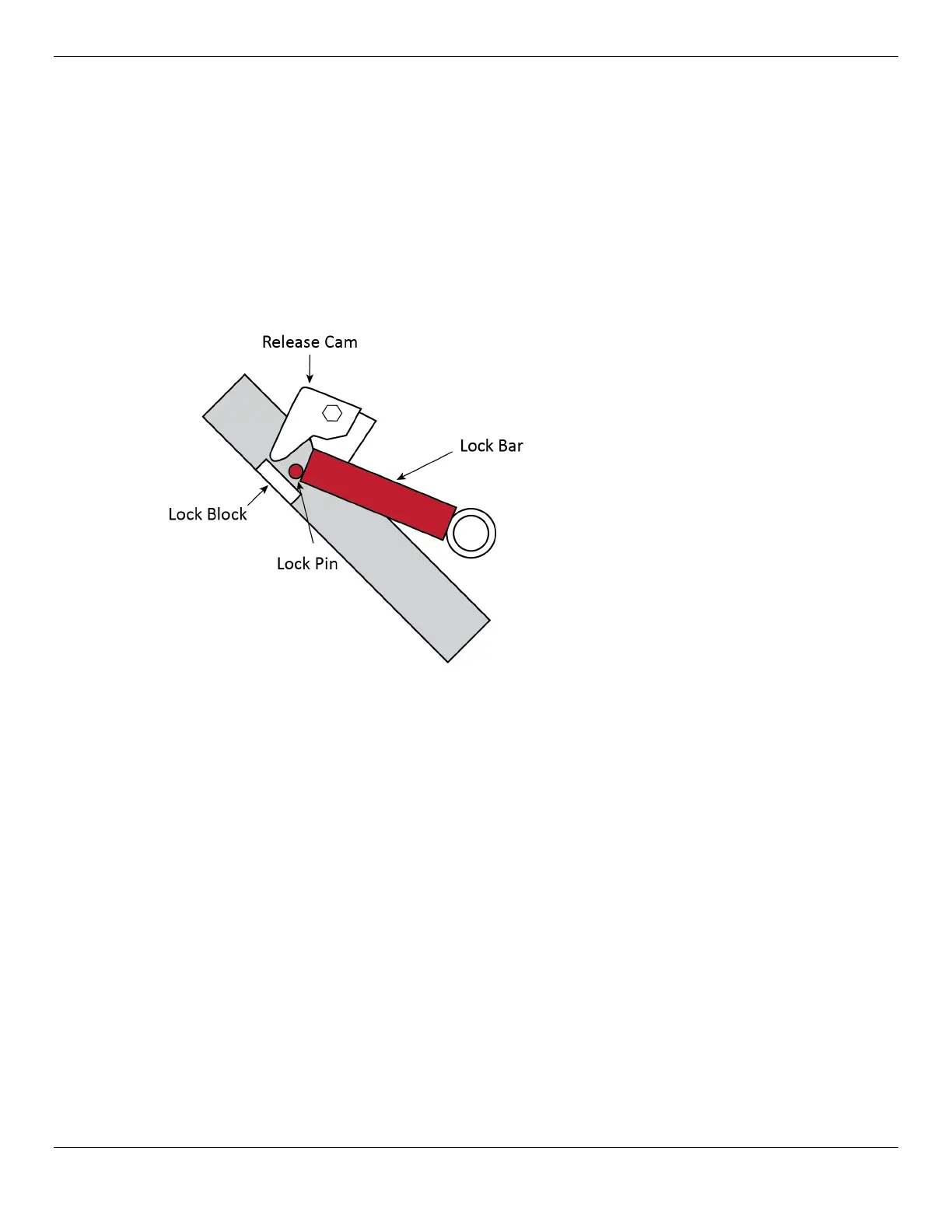

The following drawing shows the Release Cam disengaged from the Lock Block.
3. Press and hold the Lowering Handle on the Power Unit.
4. When the Lift is fully lowered, release the Lowering Handle.
5. Push the Lift Arms in towards the Frame.
This is so they are not in the way when the Vehicle is moved.
6. Carefully drive the Vehicle off the Lift.
