P-9000LT/F Low-Rise Pit Lift 24 P/N 5900022 — Rev. B — Nov. 2019
Connect the Hydraulic Hoses
Hydraulic Hoses route Hydraulic Fluid from the Power Unit to the Hydraulic Cylinders.
Note: Hydraulic Hoses and Fittings are different from Compression Lines and Fittings.
This
section covers Hydraulic Hoses and Fittings only
.
The Lift comes with two Hydraulic Hoses, both of which go from a Hydraulic Power Out connector on
the Power Unit to one of the Hydraulic Cylinders.
Important: The standard P-9000LT/F Power Unit is 208-240 VAC. These Power Units use two
long Hydraulic Hoses to connect to the unit’s Hydraulic Cylinders, which is described
in this section. 110 VAC Power Units are also available for the P-9000LT/F; these
Power Units use a slightly different Hydraulic Hose setup, which is shown and
described in Connect the Hydraulic Hoses: 110 VAC Setup Only.

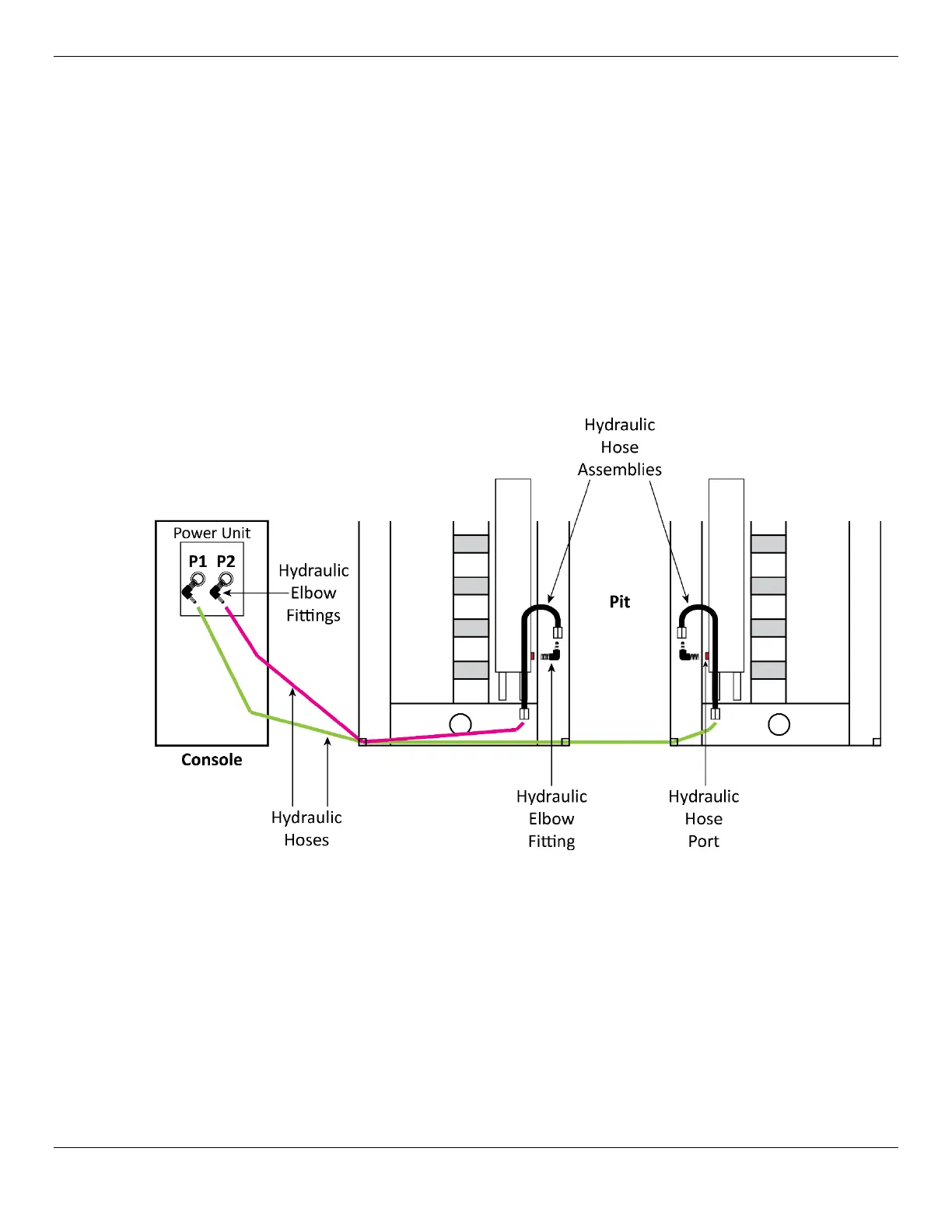

The following drawing shows the arrangement of how Hydraulic Hoses are routed from the Power Unit
to the Hydraulic Cylinders.
Drawing not to scale. Some components not shown, other components exaggerated for clarity.
Fittings shown not connected for clarity.
Important: The Hydraulic Hose Assemblies need to be installed up against, or very near to, the
Hydraulic Cylinders.
To connect the Hydraulic Hoses:
1. If the Platforms are not already on their top Safety Locks, raise them now. It is not possible to
connect the Hydraulic Hoses if the Platforms are lowered.
Refer to Lift the Platforms Off the Bases for additional information.
2. Locate four Hydraulic Elbow Fittings, two Hydraulic Hoses, and two Hydraulic Hose Assemblies.
