PL-12000DP Series Parking Lift 53 P/N 5900285 — Rev. A1 — February 2023
information.
The motor on the Power Unit that comes with the Lift is not thermally
protected
.
The Electrician is responsible for providing:
• an appropriate plug to attach to the Power Unit
• an appropriate Power Cord that goes from the power source to the plug on the Power Unit
• a Power Disconnect Switch
• a Thermal Disconnect Switch
Connecting the Power Source
The standard Power Unit for your Lift is 220 VAC, 60 Hz, 1 Ph. The Power Unit must be connected to
an appropriate power source.
Refer to Wiring Diagrams for wiring information.
⚠ DANGER All wiring
must
be performed by a licensed Electrician. Do not perform any
maintenance or installation on the Lift without first making sure that main electrical
power has been disconnected from the Lift and
cannot
be re-energized until all
procedures are complete. If your organization has Lockout/Tagout policies, make
sure to implement them after connecting to a power source.
Important electrical information:
• Improper elec
trical installation can damage the motor; this is not covered under warranty.
• Use a separate circuit breaker for each Power Unit.
• Protect each circuit with an appropriate time-delay fuse or circuit breaker for the power unit supplied.

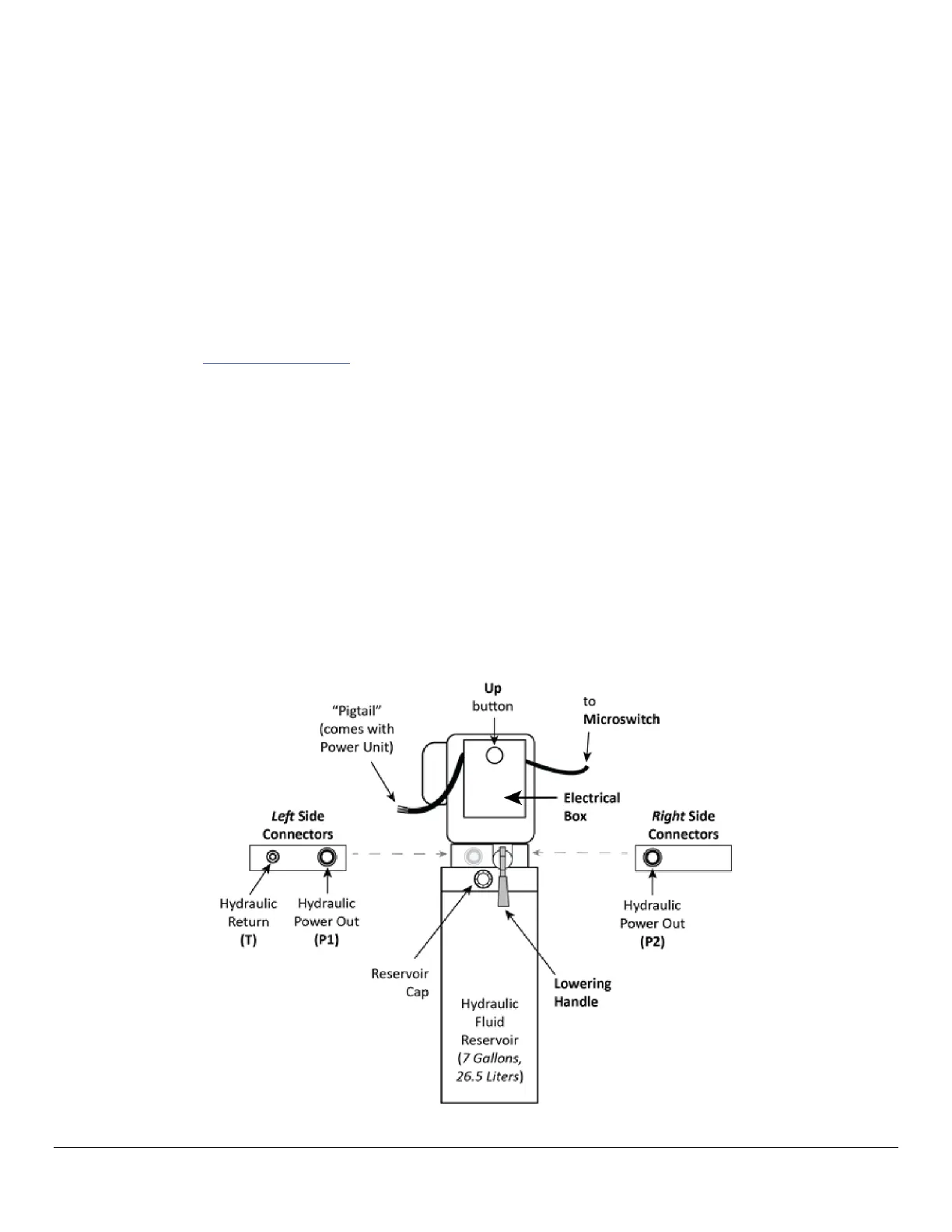

The following figure shows the configuration for the Power Unit. P1/P2 represents the Hydraulic
Power Out; T1/T2 or CV1/CV2 commonly represents the Hydraulic Return.
To Next Page
