PL-12000DP Series Parking Lift 71 P/N 5900285 — Rev. A1 — February 2023

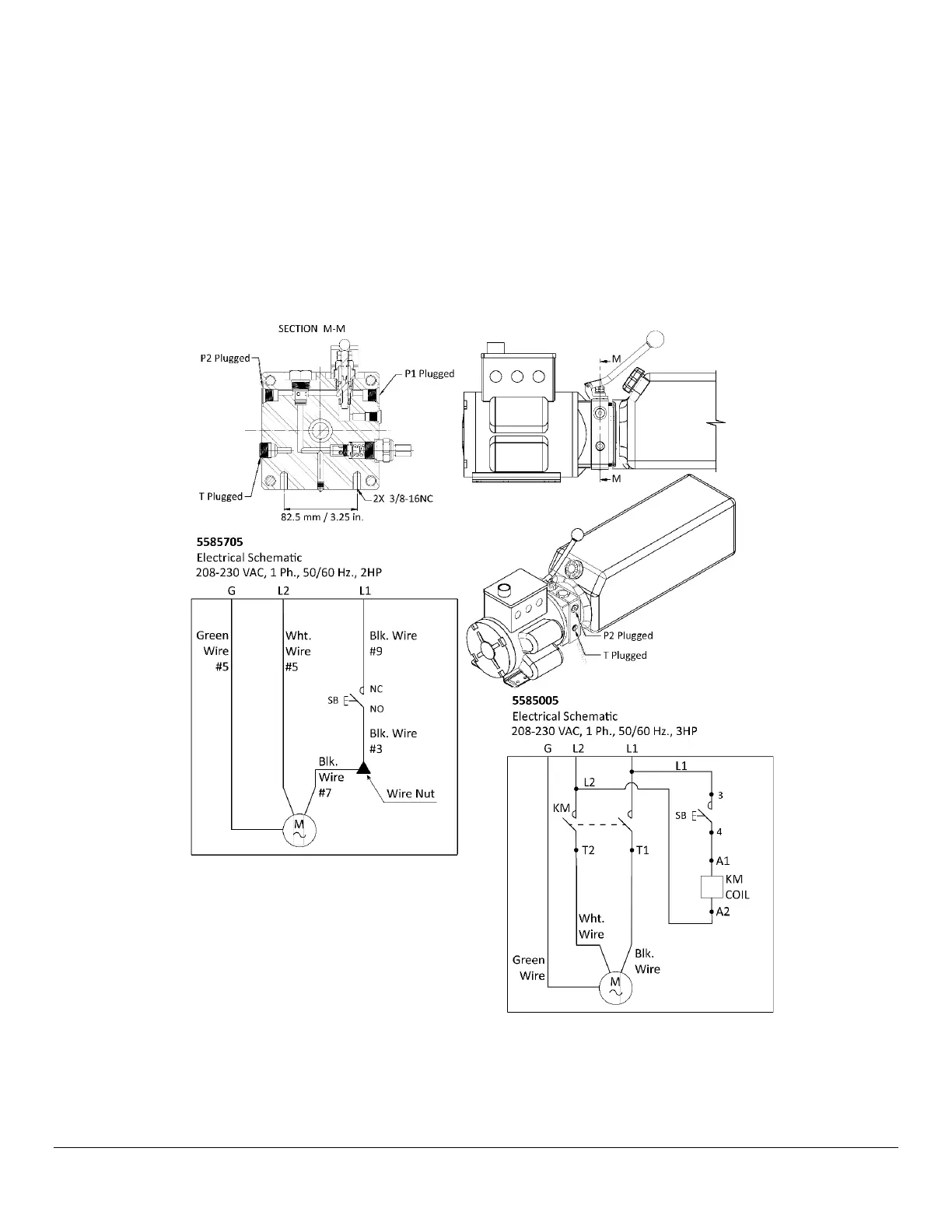

Wiring Diagrams
⚠ WARNING All electrical work
must
be performed by a
Licensed Electrician
in accordance
with all applicable local and national electrical codes.
Damage caused by
improper electrical installation may void your warranty
.
⚠ WARNING An Electrical Disconnect Switch and a Thermal Disconnect must be provided and
installed by a licensed, Electrician.
⚠ WARNING Failure to connect the Motor frame to equipment Ground by using the grounding
cord, green screw, or green wire provided, may result in serious electric shock.
