1010
STEP 3
(Post Preparation)
COMPLETE THE FOLLOWING
PRIOR TO RAISING THE POSTS

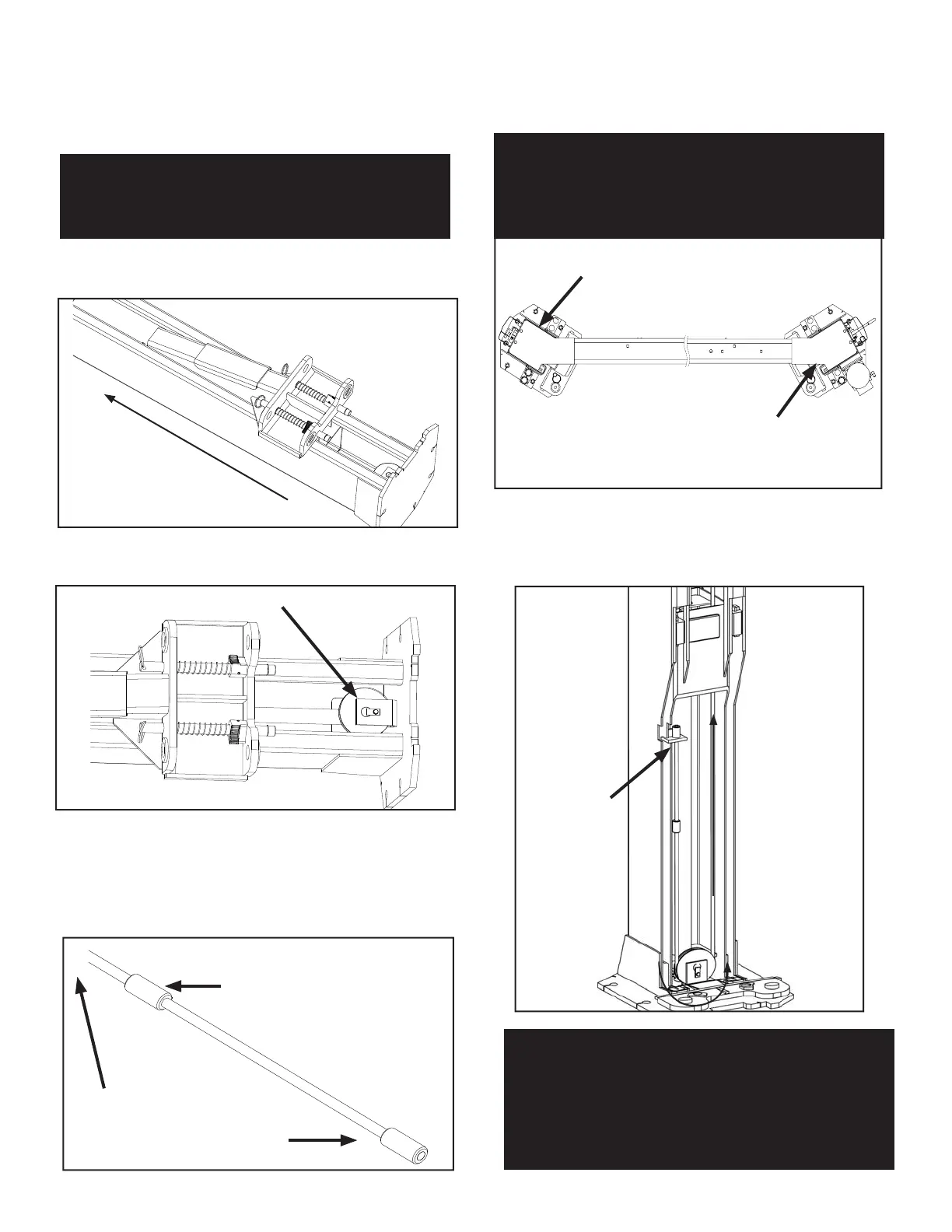

1. Prior to raising posts, slide each carriage upwards to
aid in sheave removal and equalizer cable routing.
2. Remove the cable sheaves located at the inside bot-
tom of each post.
3. Identify the correct cable button on the end of each
equalizer cable that corresponds to your desired lift con-
guration. Route the button around the bottom sheave
and secure at the carriage lock plate located inside each
carriage.
4. Route threaded end of cable upwards through the bot-
tom of the carriage. Leave excess cable resting on top of
carriage until further steps are required. (See Fig 3.8)
5. Install the cylinder ttings in cylinder ports. Pay
attention when installing the ttings to ensure that each t-
ting points towards the side of the post that the hose retainer
clips are located on. (See Fig 3.7)
Fig 3.4
NOTE:
DETERMINE DESIRED LOCATION AND WIDTH
LAYOUT BEFORE RAISING POSTS. REFER TO
LAYOUT CHARTS ON PAGES 13-14.
NOTE:
SYMMETRICAL MODELS BOTH CABLES ARE SAME
LENGTH. ASYMMETRIC MODELS HAVE TWO
DIFFERENT LENGTH CABLES. (SEE FIG. 3.4)
NOTE FOR XPR-10 MODELS:
FOR NARROW CONFIGURATION USE THE
BUTTON LOCATED AT 12” ABOVE CABLE END.
FOR WIDE CONFIGURATION USE THE BUTTON
LOCATED ON THE END OF THE CABLE.
Fig 3.5
Slide carriage
upwards
Remove cable sheaves
For narrow con guration
For wide con guration
To threaded
cable end
For Asymmetric Models Only
Long cable on lock plate
THIS SIDE
Short cable on lock plate
THIS SIDE
For Wide con-
guration, lock
cable button
into second
button position
into Lock Plate
inside of car-
riage
Threaded
end of cable
routed up
through
carriage
towards
Overhead
Assembly
NOTE: Portions of Carriage and Post cut away for clarity
Fig 3.3
Fig 3.2
Fig 3.1
To Next Page
