50
DIMENSIONS ARE IN MM
☺
4
3
1
2

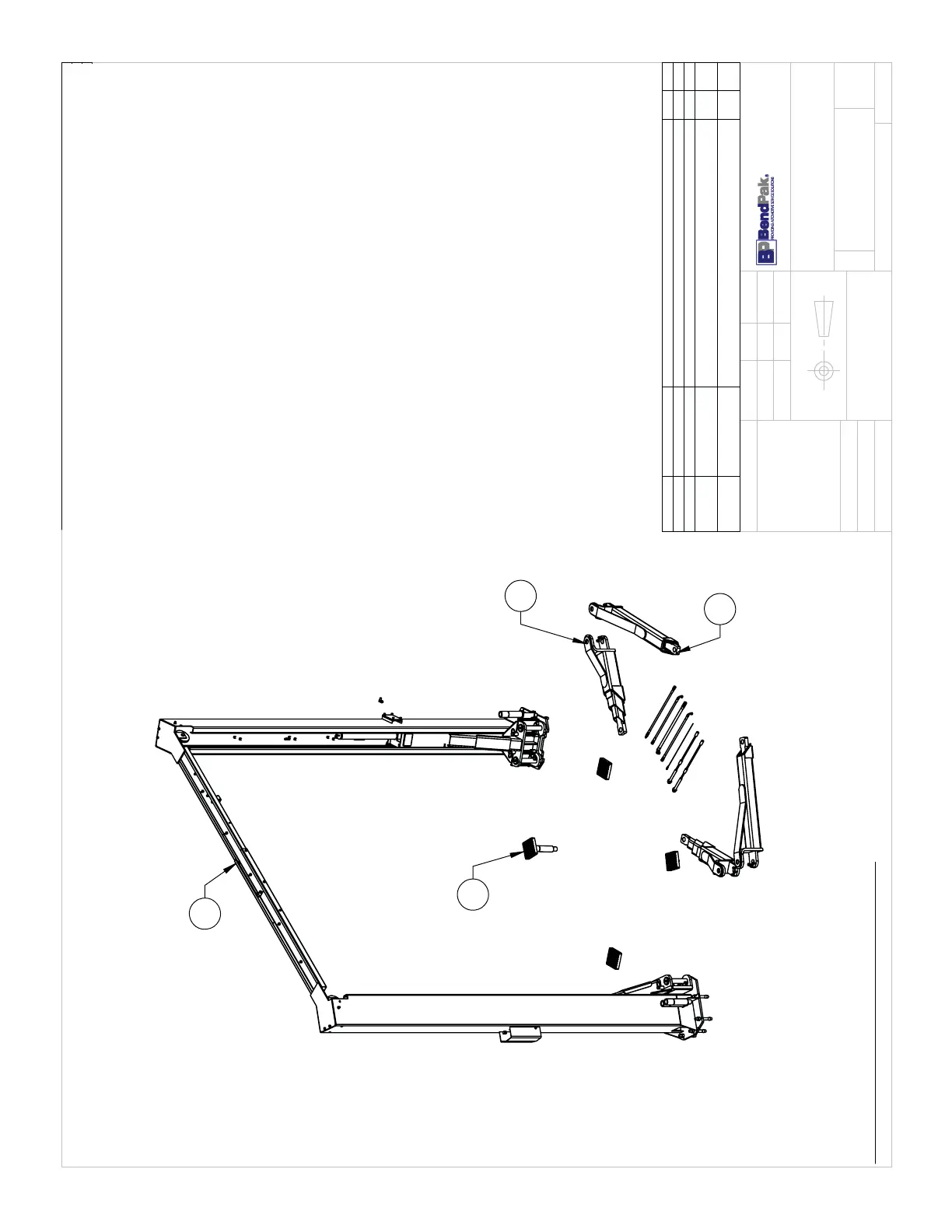

ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5245228
XPR-10A LIFT SUPERSTRUCTURE
1
A
2 5250322
XPR-10A PARTS BOX
1
A
3 5210171
XPR-10AC/ACX LOW PROFILE LONG ARM
ASSEMBLY
2
C
4 5210170
XPR-9F/FD/FS/ 10C/AC LOW PROFILE TRIPLE
TELESCOPING ARM ASSEMBLY
2
C
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5260138
09/02/2010
TM
00396
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5260324
XPR-10A RECEIVED LIFT
---
---
09/02/2010
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
AC
09/20/2010
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
50
