3. Route wire up through post and across Overhead
Assembly through hole in Overhead Assembly into the
Microswitch box. (See Fig. 12.3)
STEP 13
(Installing power unit hose assembly
and Power Side safety cover)
1. With Power Side safety cover loosely positioned route
power unit hydraulic hose through clips in Power Side
safety cover. (See Fig. 13.1)
2. Install the 90°  tting w/ O-ring into the power port of
the power unit. Use te on tape on the pipe  ttings ONLY.
Connect power unit hose assembly to the 90°
w/O-ring  tting on power unit. (See Fig. 13.2)
3. Connect other end of power unit hydraulic hose
assembly to the bulkhead  tting. (See Fig. 13.3)
4. After safeties have been adjusted and checked for
proper operation, install and tighten Power Side safety
cover and Off Side safety cover mounting bolts.
(See Fig. 13.4 and 13.5)

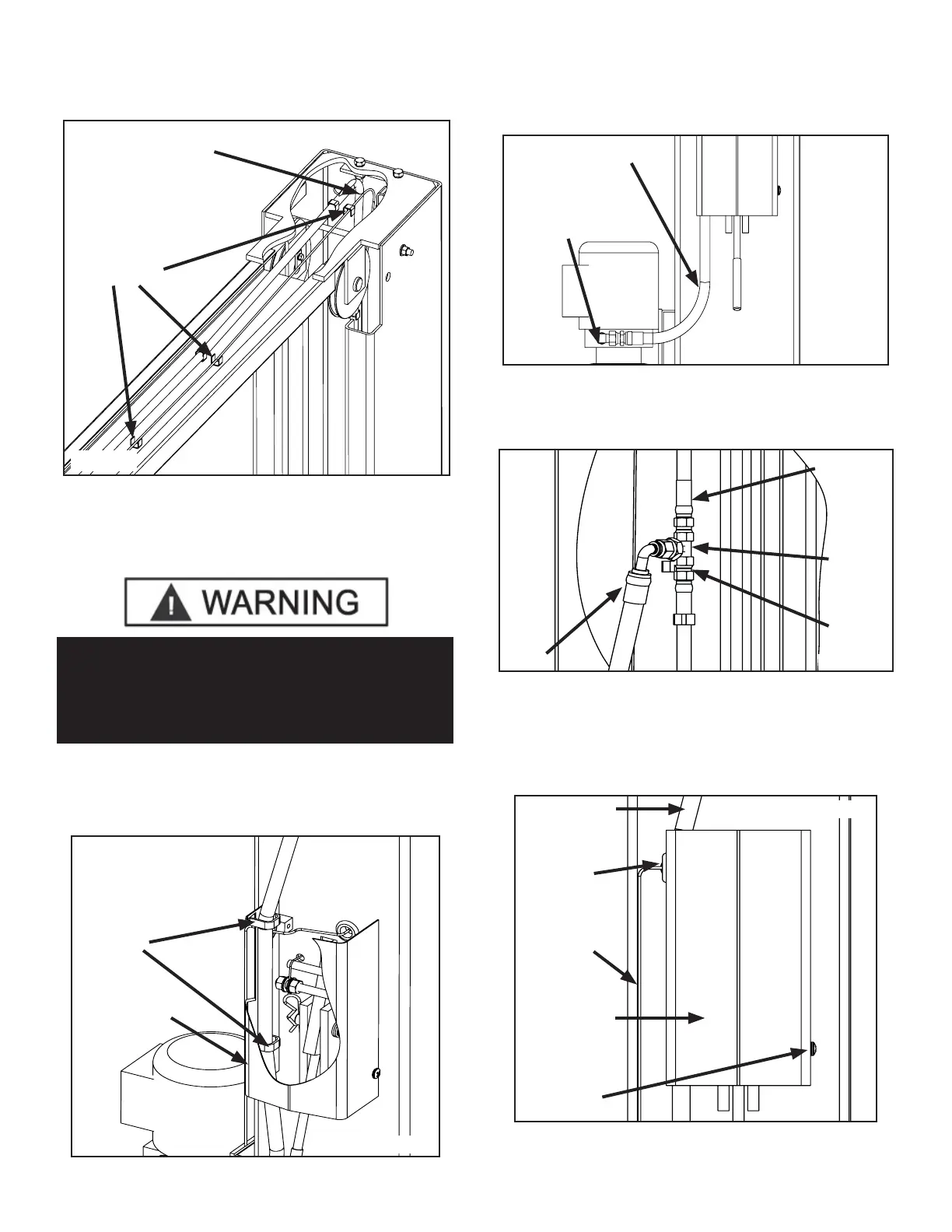

Fig. 12.3
Microswitch
Wire
Microswitch
Wire Clips
WARNING!
POWER UNIT HYDRAULIC HOSE MUST BE ROUTED
THROUGH THE HOSE CLIPS IN POWER SIDE
SAFETY COVER. FAILURE TO DO SO CAN RESULT
IN PERSONAL INJURY OR DAMAGE TO THE LIFT.
Fig. 13.1
Route power
unit hydraulic
hose through
clips in Power
Side safety
cover
Power Side
safety cover
Fig. 13.2
Power unit
90°  tting with
O-ring
Power unit
hose assembly
Fig. 13.3
Power
Side
Post
Power
Hose
Crossover
Hose
Bulk-
head
 tting
Power
Side
Hose
Fig. 13.4
Screw
Screw
Microswitch
Wire
Power unit
hose assembly
Power Side
Safety Cover

BendPak XPR-10 Specifications

General

Capacity	10, 000 lbs
Lift Type	Two-Post Lift
Lifting Time	45 seconds
Voltage	220V
Minimum Height	4.5 inches
Max Lift Height	69 inches
Power Requirements	220 VAC / 60 Hz / 1 Ph
Overall Height	145" / 3683 mm
