10

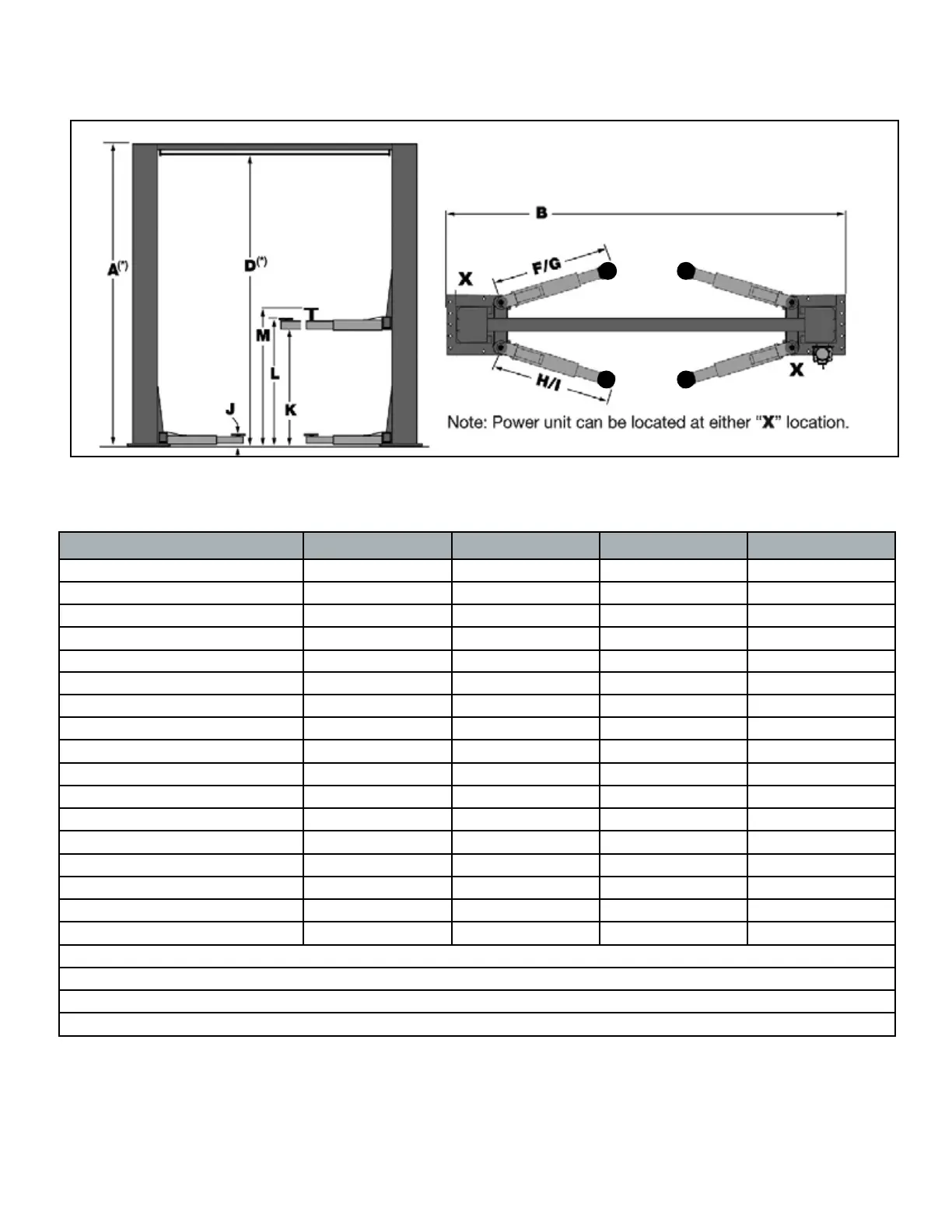

FLOOR PLAN
MODEL
XPR-15CL XPR-15CL-192 XPR-18CL XPR-18CL-192
Lifting Capacity 15,000Lbs. / 6804Kg. 15,000Lbs. / 6804Kg. 18,000Lbs. / 8165Kg. 18,000Lbs. / 8165Kg.
Max Capacity/ Front Axle 7,500 lbs. / 3402 Kg. 7,500 lbs. / 3402 Kg. 9,000 lbs. / 4082 Kg. 9,000 lbs. / 4082 Kg.
Max Capacity/ Rear Axle 7,500 lbs. / 3402 Kg. 7,500 lbs. / 3402 Kg. 9,000 lbs. / 4082 Kg. 9,000 lbs. / 4082 Kg.
A- Height Overall: 170" / 4318 mm. (*) 192.7" / 4895 mm. 170” / 4318 mm. (*) 192.7” / 4895 mm.
B -Width Overall 155" / 3937 mm. 155" / 3937 mm. 155" / 3937 mm. 155" / 3937 mm.
D- Floor to Overhead Switch: 165" / 4191 mm.
(*)
187.7” / 4768 mm.
165" / 4191 mm. (*)
187.7” / 4768 mm.
F -Reach (Front Arm Min.): 39" / 991 mm. 39” / 991 mm. 39” / 991 mm. 39” / 991 mm.
G -Reach (Front Arm Max.): 60" / 1524 mm. 60” / 1524 mm. 60” / 1524 mm. 60” / 1524 mm.
H- Reach (Rear Arm Min.): 39" / 991 mm. 39” / 991 mm. 39” / 991 mm. 39” / 991 mm.
I- Reach (Rear Arm Max.): 60" / 1524 mm. 60” / 1524 mm. 60” / 1524 mm. 60” / 1524 mm.
J- Min. Pad Height: 5" / 127 mm. 5” / 127 mm. 5” / 127 mm. 5” / 127 mm.
K- Rise: 69" / 1753 mm. 69" / 1753 mm. 69" / 1753 mm. 69" / 1753 mm.
L -Max Lift Height (Pad Only): 74" / 1880 mm. 74” / 1880 mm. 74” / 1880 mm. 74” / 1880 mm.
M - Max Lift Height (6" Adapter): 80" / 2032 mm. 80” / 2032 mm. 80” / 2032 mm. 80” / 2032 mm.
Standard Motor(**) 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph.
Time of Full Rise: 45 Seconds 45 Seconds 45 Seconds 45 Seconds
Max Load Per Arm: 3,750 Lbs. / 1701 Kg. 3,750 Lbs. / 1701 Kg. 4,500 Lbs. / 2041 Kg 4,500 Lbs. / 2041 Kg
Emission sound pressure at Operator Position < 70 dB(A)
* An optional bolt-on top extension for column raises the overhead bar an additional 24”. Must be ordered from factory at time of order.
** For CE compliant countries see errata sheet included with control panel.
The design, material and specications are subject to change without notice.
