12
STEP 3
(Post Preparation)
COMPLETE THE FOLLOWING
PRIOR STANDING UP POSTS.

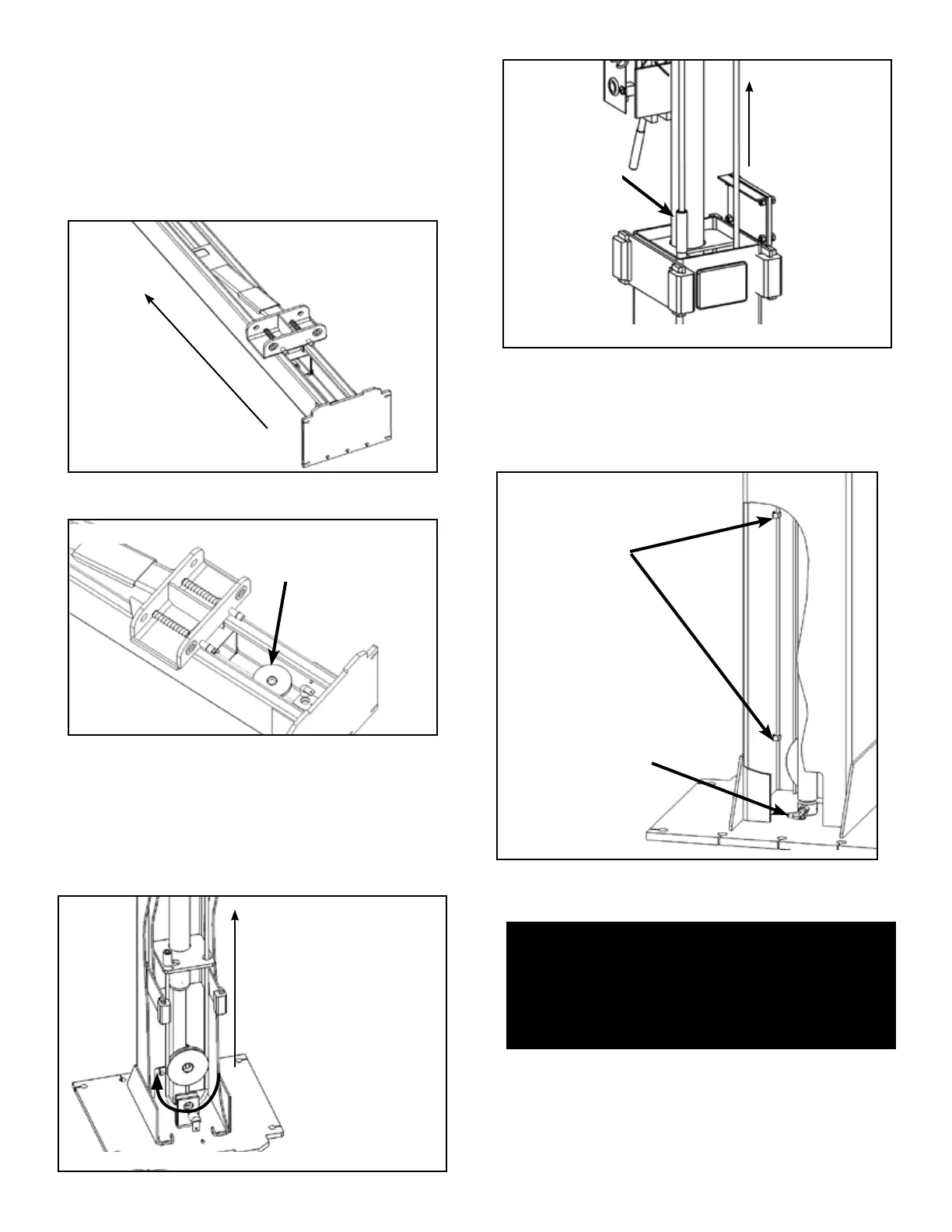

1. Slide the Lift Head up the Post to aid in Pulley (also
sometimes called Cable Sheaves) removal and Equalizer
Cable routing. (See Fig 3.1)
2. Temporarily remove the Cable Sheaves located at
the inside bottom of each Post. (Fig. 3.2)
3. Route the Button end of the Cable around the
bottom sheave and secure at the carriage lock plate
located inside each Lift Head. Route Threaded End of
Cable upwards through the bottom of the carriage.
Leave excess cable resting on top of car-
riage until further steps are required.
(See Fig 3.3 and 3.4)
4. Install the Straight and Elbow Cylinder Fittings in the
Cylinder Ports. Pay attention when installing the Elbow
Fittings to ensure that each Fitting points towards the side
of the Post that the Hose Retainer Clips are located on.
(See Fig 3.5)
Fig 3.1
Slide
Lift Head
upwards
Fig 3.2
Remove cable
sheaves
Threaded end of cable
routed up through
carriage towards
Overhead Assembly
mounting
Fig 3.3
NOTE: Portions of Carriage and Column cut away for clarity
NOTE: Post hidden for clarity. Powerside Post shown.
Fig 3.4
Threaded cable
end from other
side of Lift.
Cable routed up
and across
Overhead
Assembly to
opposite carriage.
Fig 3.5
Elbow Fitting must
be turned towards
hose clips for
Hydraulic Hose
routing
Notice that
the hose clips
are offset for
Hydraulic Hose
routing
NOTE
FOR XPR-12CL/15CL/18CL-192 MODELS FIT
EXTENSION WELDMENTS TO POST ASSEMBLY
IN THIS STEP FOR EASE OF INSTALLATION
AND BOLT TOGETHER AS SHOWN ON PAGE 13
WITH M10 HARDWARE.
To Next Page
