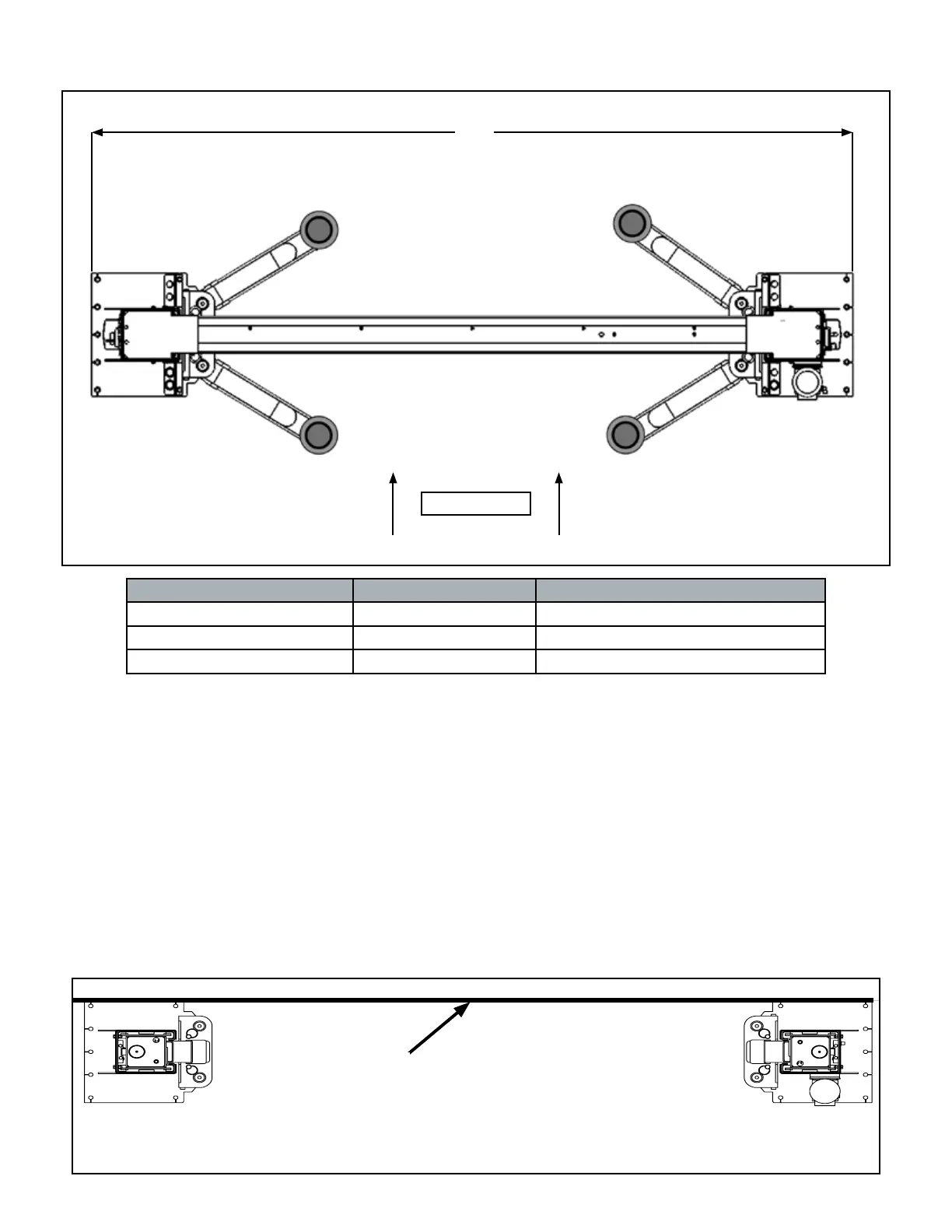

FLOOR PLAN
Model A Capacity
XPR-12CL 155” / 3937 mm 12,000 LBS
XPR-15CL 155” / 3937 mm 15,000 LBS
XPR-18CL 155” / 3937 mm 18,000 LBS
APPROACH
A
STEP 4
(Site Layout)
1. Determine which side of the Lift will be the approach
side.
2. Determine where the Power Unit will be located. The
POWER SIDE Post has the Power Unit Mounting Bracket
attached to the side.
3. Use the chart on page 13 to determine which Lift width
layout you would like to use.
4. Once a location is determined, use a carpenters chalk
line to layout an alignment line for the Post locations. Keep
all dimensions square within 1/8” (3mm) or malfunctioning of
the Lift can occur. (See Fig 4.1)
5. After the Post locations are properly marked, use chalk
or crayon to make an outline of the Posts on the oor
at each Post location using the Post Base Plates as a
template.
6. CHECK ALL DIMENSIONS TWICE and make sure that
the layout is perfectly square.
Fig 4.1.
USE BASE PLATE EDGES TO ALIGN POSTS
CHALK LINE
To Next Page
