9

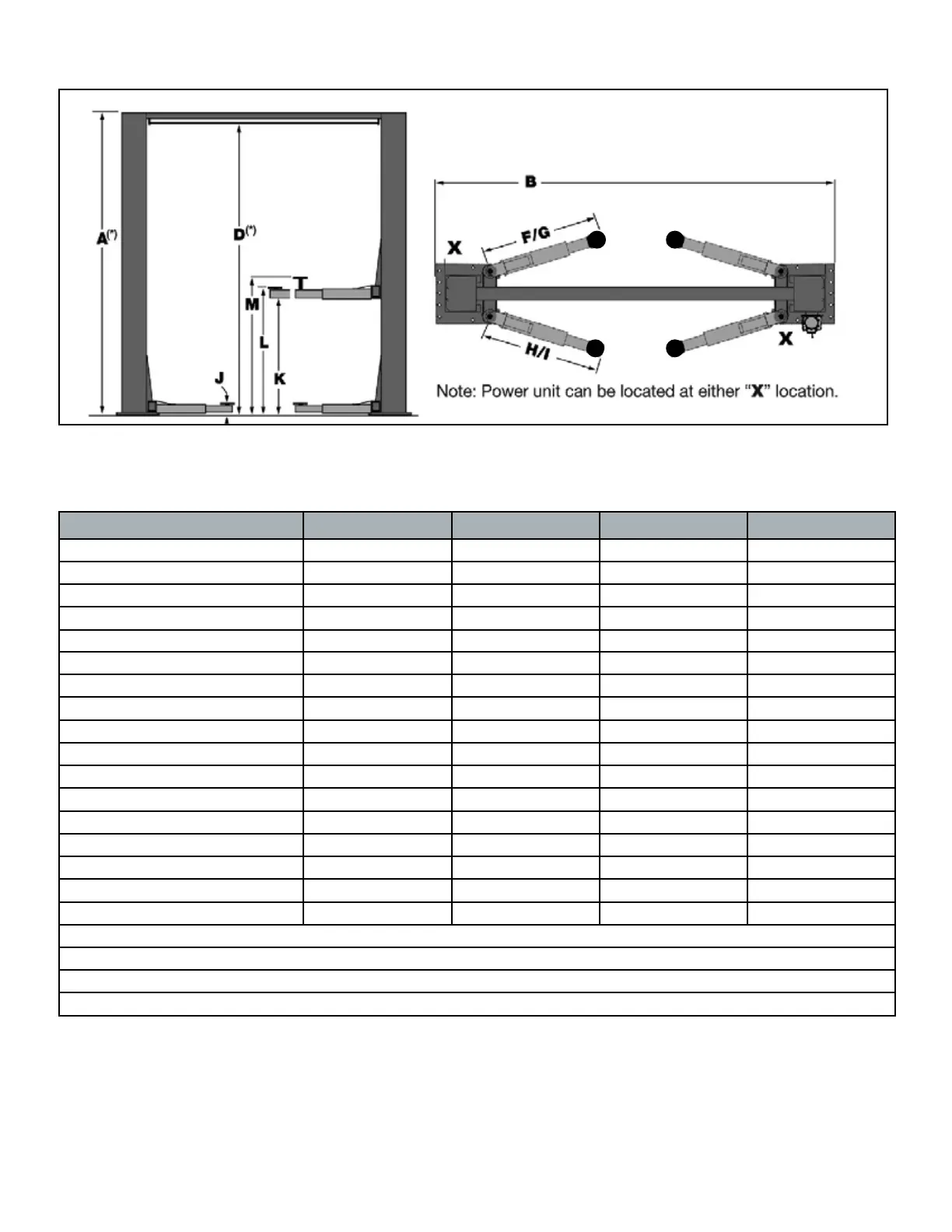

FLOOR PLAN
MODEL
XPR-12CL XPR-12CL-192
XPR-12CL-LTA
XPR-12CL-LTA-192
Lifting Capacity 12,000Lbs. / 5443Kg. 12,000Lbs. / 5443Kg. 12,000Lbs./ 5443Kg. 12,000Lbs. / 5443Kg.
Max Capacity/ Front Axle 6,000 lbs. / 2722 Kg. 6,000 lbs. / 2722 Kg. 6,000 lbs. / 2722 Kg. 6,000 lbs. / 2722 Kg.
Max Capacity/ Rear Axle 6,000 lbs. / 2722 Kg. 6,000 lbs. / 2722 Kg. 6,000 lbs. / 2722 Kg. 6,000 lbs./ 2722 Kg.
A- Height Overall: 170" / 4318 mm.
(*) 192.7" / 4895 mm. 170” / 4318 mm. (*) 192.7” / 4895 mm.
B -Width Overall 155" / 3937 mm. 155" / 3937 mm. 155" / 3937 mm. 155" / 3937 mm.
D- Floor to Overhead Switch: 165" / 4191 mm.
(*)
187.7" / 4768 mm.
165" / 4191 mm. (*)
187.7” / 4768 mm.
F -Reach (Front Arm Min.): 32" / 813 mm. 32” / 813 mm. 35-1/2" / 902 mm. 35-1/2" / 902 mm.
G -Reach (Front Arm Max.): 60" / 1524 mm. 60” / 1524 mm. 71-1/2" / 1819 mm. 71-1/2" / 1819 mm.
H- Reach (Rear Arm Min.): 32" / 813 mm. 32” / 813 mm. 35-1/2" / 902 mm. 35-1/2" / 902 mm.
I- Reach (Rear Arm Max.): 60" / 1524 mm. 60” / 1524 mm. 71-1/2" / 1819 mm. 71-1/2" / 1819 mm.
J- Min. Pad Height: 5" / 127 mm. 5” / 127 mm. 5” / 127 mm. 5” / 127 mm.
K- Rise: 69" / 1753 mm. 69" / 1753 mm. 69" / 1753 mm. 69" / 1753 mm.
L -Max Lift Height (Pad Only): 74" / 1880 mm. 74” / 1880 mm. 74” / 1880 mm. 74” / 1880 mm.
M - Max Lift Height (6" Adapter): 80" / 2032 mm. 80” / 2032 mm. 80” / 2032 mm. 80” / 2032 mm.
Standard Motor(**) 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph.
Time of Full Rise: 45 Seconds 45 Seconds 45 Seconds 45 Seconds
Max Load Per Arm: 3,000 Lbs." / 1361 Kg. 3,000 Lbs." / 1361 Kg. 3,000 Lbs." / 1361 Kg. 3,000 Lbs." / 1361 Kg.
Emission sound pressure at Operator Position < 70 dB(A)
* An optional bolt-on top extension for column raises the overhead bar an additional 24”. Must be ordered from factory at time of order.
** For CE compliant countries see errata sheet included with control panel.
The design, material, and specications are subject to change without notice.
