BendPak XPR-12CL - STEP 13: INSTALLING POWER UNIT ASSEMBLY AND SAFETY COVER; HYDRAULIC HOSE ROUTING WARNING

22

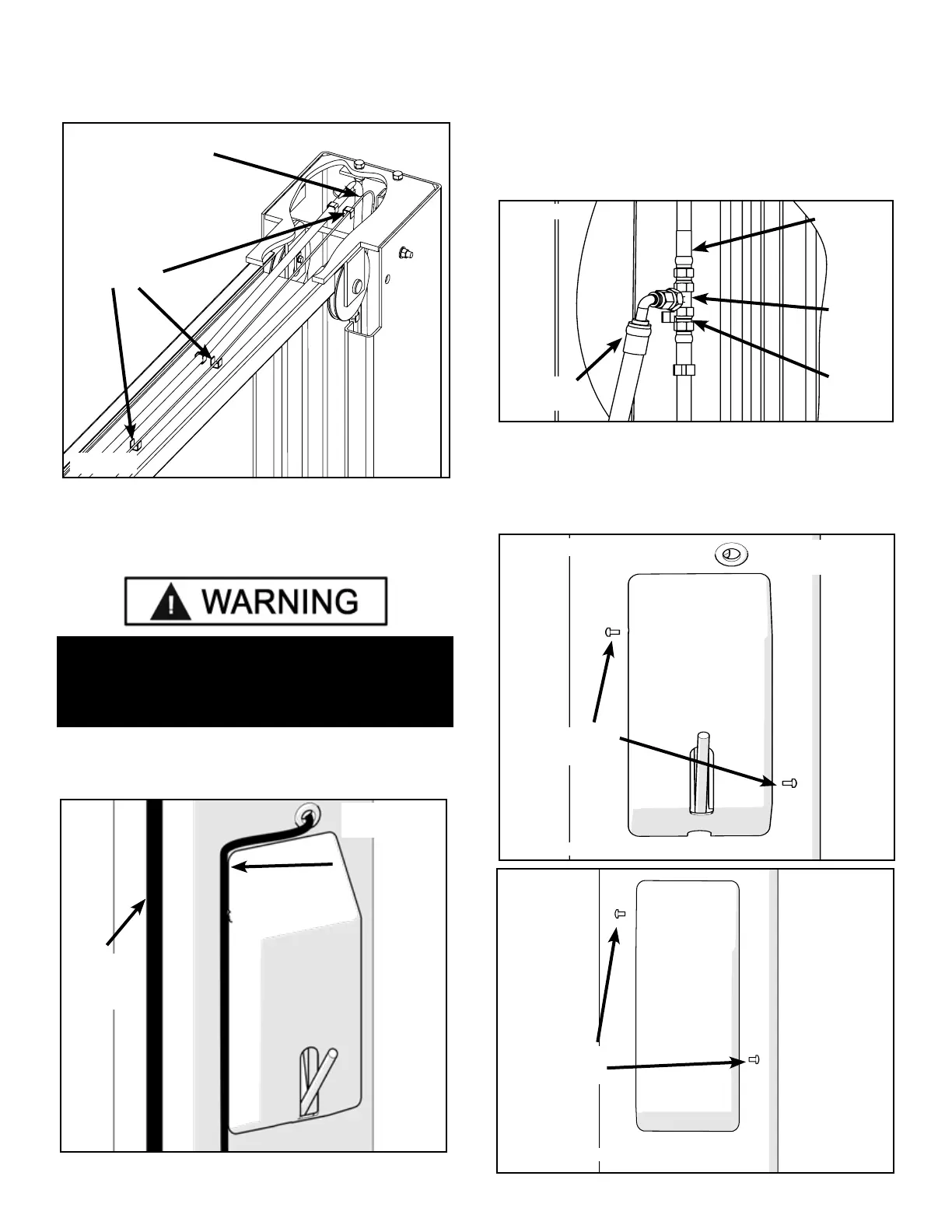

3. Route wire up through Post and across Overhead
Assembly through hole in Overhead Assembly into the
Microswitch box. (See Fig. 12.3)
STEP 13
(Installing Power Unit Assembly
and Power Side Safety Cover)
1. With Power Side Safety Cover loosely positioned,
route the Power Unit Hydraulic Hose along the side of the
Power Side Safety Cover. (See Fig. 13.1)
2. Install the 90° Fitting w/ O-ring into the Power Port of
the Power Unit. Use teon tape on the pipe ttings ONLY.
Connect Power Unit Hose Assembly to the 90° w/O-ring
tting on Power Unit.
3. Connect other end of Power Unit Hydraulic Hose
assembly to the Bulkhead Fitting. (See Fig. 13.2)
4. After Safeties have been adjusted and checked for
proper operation, install and tighten Power Side Safety
Cover and Off Side Safety Cover Mounting Screws.
(See Fig. 13.3 and 13.4)
Fig. 12.3
Microswitch
Wire
Microswitch
Wire Clips
POWER UNIT HYDRAULIC HOSE MUST BE ROUTED
THROUGH THE HOSE CLIPS IN POWER SIDE
SAFETY COVER. FAILURE TO DO SO CAN RESULT
IN PERSONAL INJURY OR DAMAGE TO THE LIFT.
Fig. 13.1
Power
Unit Hose
Assly
Fig. 13.2
Power
Side
Post
Power
Hose
Crossover
Hose
Bulk-
head
tting
Power
Side
Hose
Fig. 13.3
Mounting
Screw
wiring for
Microswitch
Power Side
Safety Cover
Hoses and wiring not shown.
Power Side
Safety Cover
Off Side
Safety Cover
Mounting
Screw
Hoses and wiring not shown.
Fig. 13.4
