BendPak XPR-12CL User Manual

19
ENSURE THAT BOTH THE POWER SIDE & OFF
SIDE SAFETIES ENGAGE PROPERLY PRIOR TO
LIFT OPERATION.

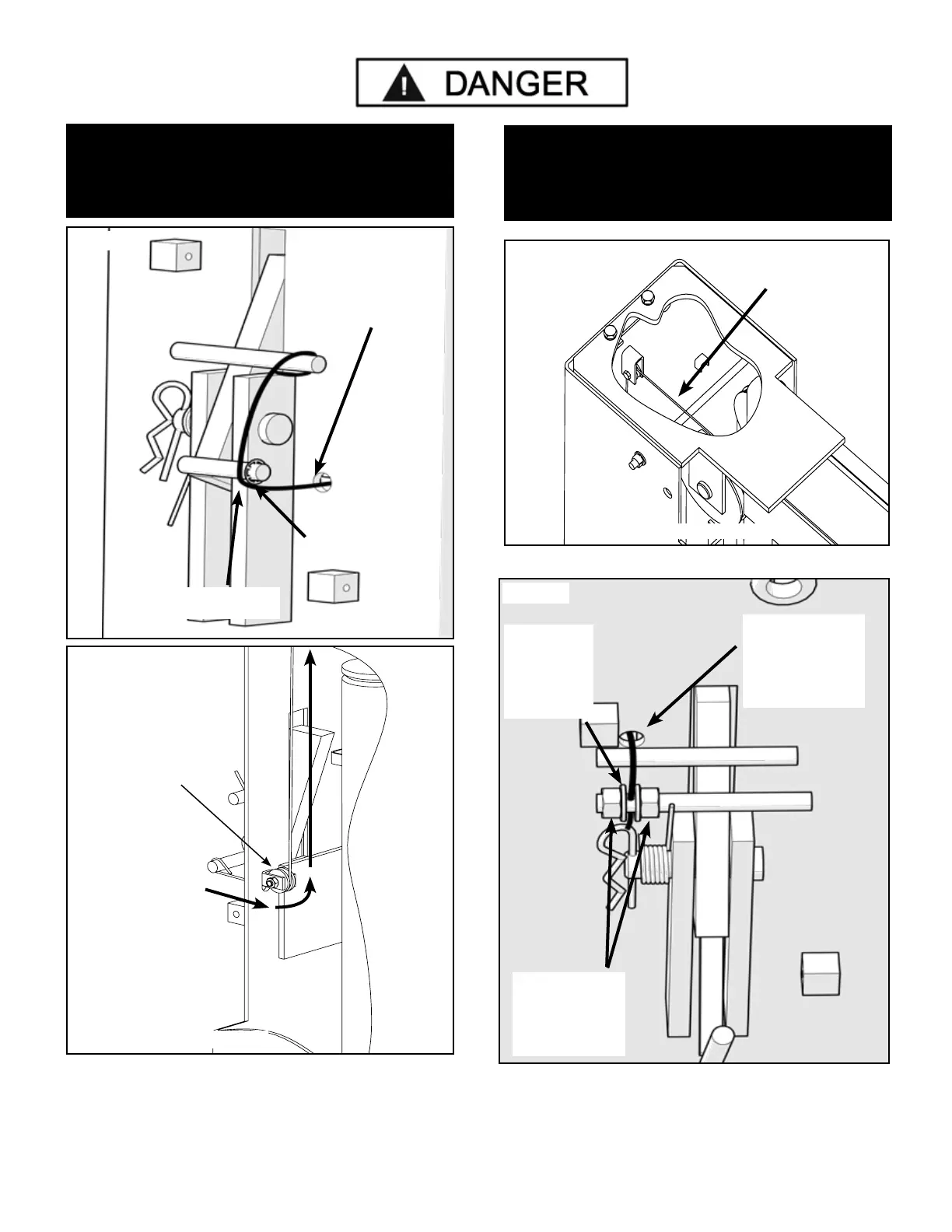

Fig 9.3
Slip looped end
over bottom pin
Insert non-looped
end of Safety
Cable through
hole in Post
Fig 9.4
Route Safety Cable
under Off Side
Safety Sheave and
up towards Overhead
Assembly
NOTE: Post cut away for clarity
Fig 9.5
Safety
Cable
NOTE: Top Plate cut away for clarity
Route Safety
Cable over the
Top Pin of the
Power Side
Safety Weldment
Tighten jam
nuts ensuring
Safety Cable is
centered in hole
Route Safety
Cable the
hole in the
Threaded
Pin
NOTE:
MAKE SURE TO KEEP THE SAFETY CABLE
CENTERED WHEN TIGHTENING JAM NUTS
ON SAFETY.
Fig 9.6
Safety Sheave
Rotor Clip
