FRAME/GEAR CHANGE PEDAL ADJUSTMENT
3
61

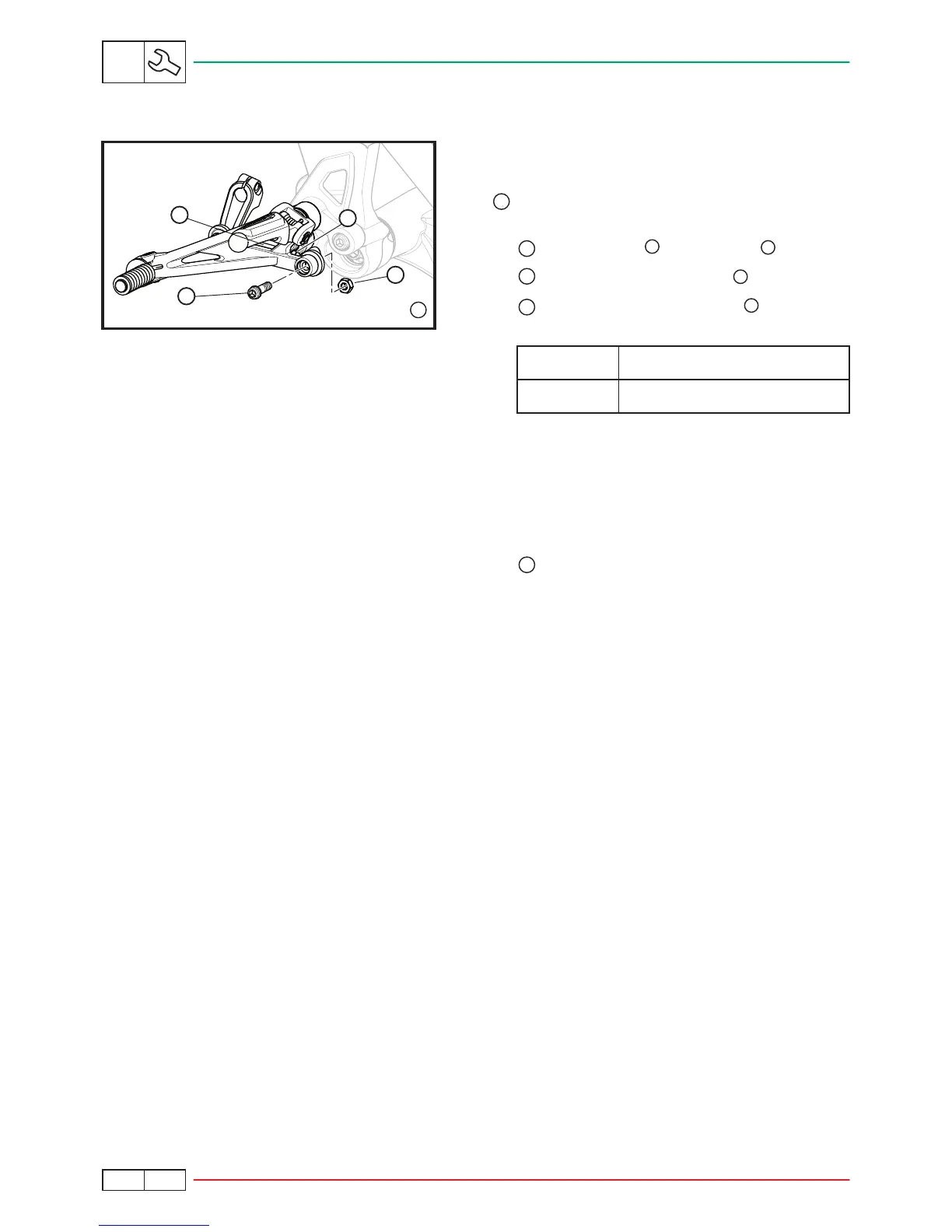

ADJUSTMENT OF PEDAL OF THE
GEAR CHANGE
Adjust:
• the position of the gear change pedal
1
CHK
ADJ
1
Remove the nut and the screw .
Loosen the two nuts of the rod .
Rotate the gears command rod clockwise
or anti-clockwise.
A
a
Once the gear change pedal adjustment is
completed, fasten the rod nuts and fix the rod to
the support using the previously removed screw
and nut.
d
c
b
B
C
B
A
D
C
D
ANTI-CLOCKWISE
CLOCKWISE
the gear change pedal is lowered
the gear change pedal is lifted
