START-UP
Z25 GEAR/SPLINED SHAFT, FEMALE
COLLAR JOINT INSTALLATION
5
130

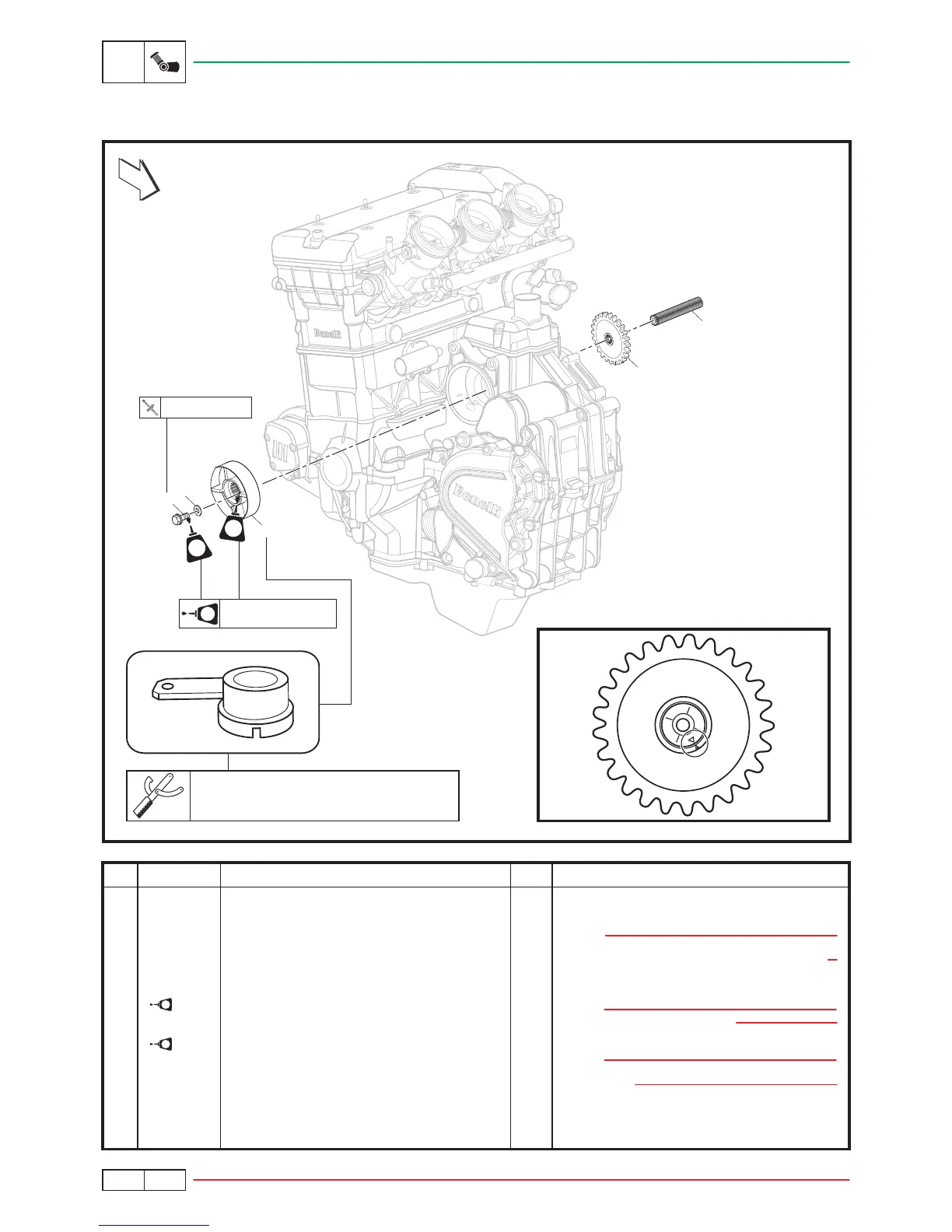

Z25 Gear/Splined Shaft Installation
Z25 Gear
Splined Shaft
Female Collar Joint Installation
Female Joint
Washer
Screw
SQ.
SYMBOLS
INTERVENTION/DESCRIPTION
Q.TY
OBSERVATIONS
1
2
3
4
5
1
1
1
1
1
Install the pieces in the given order.
NOTE:
Insert the splined shaft respecting the phasing
on the relative Z25 gear, as shown in the figure.
NOTE:
Install it using the special tool.
NOTE:
Insert the engine oil once operations have been
carried out.
5
4
3
2
1
ENG
56A
4
8
T
.
R.
50 N m - 5.09 Kgf•m
Arexons SYSTEM 56A48
HIGH TEMPERATURE SEALER
5
6
A
4
8
8
4
A
6
5
8
4
A
6
5
5
6
A
4
8
Special Tools: ALTERNATOR SPANNER
Cod e: R300097161000
