FRONT AND REAR BRAKES
4
32
2
1
4
Measure:
• the wear limit of the brake pads
If out of specification Replace the brake
pads together.
4
CHAS

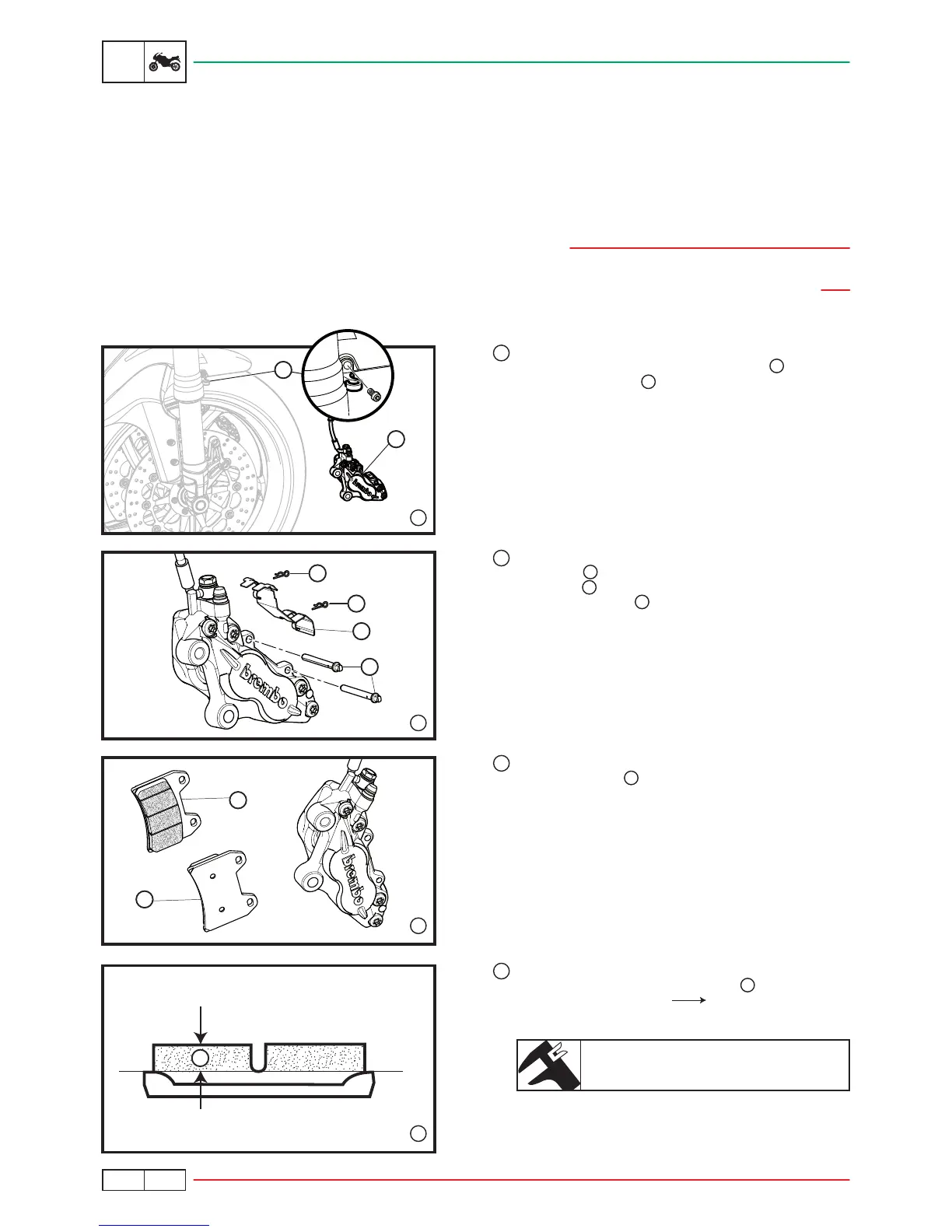

FRONT BRAKE PADS REPLACEMENT
The procedure below can be applied to both the
brake callipers.
A
Disconnect:
• the support of the brake flexible tube
• the brake calliper
1
Disconnect:
• the clips
• the pins
• the safety spring
2
3
Disconnect:
• the brake pads
3
NOTE:
To replace the brake pads, always replace in pair to
guarantee an even pressure.
It is not necessary to disconnect the flexible tube.
A
B
B
E
C
D
C
F
F
F
G
G
Wear limit of the brake pads
1 mm (0.04 in)
C
D
E
