Parts of the display and their functions 15

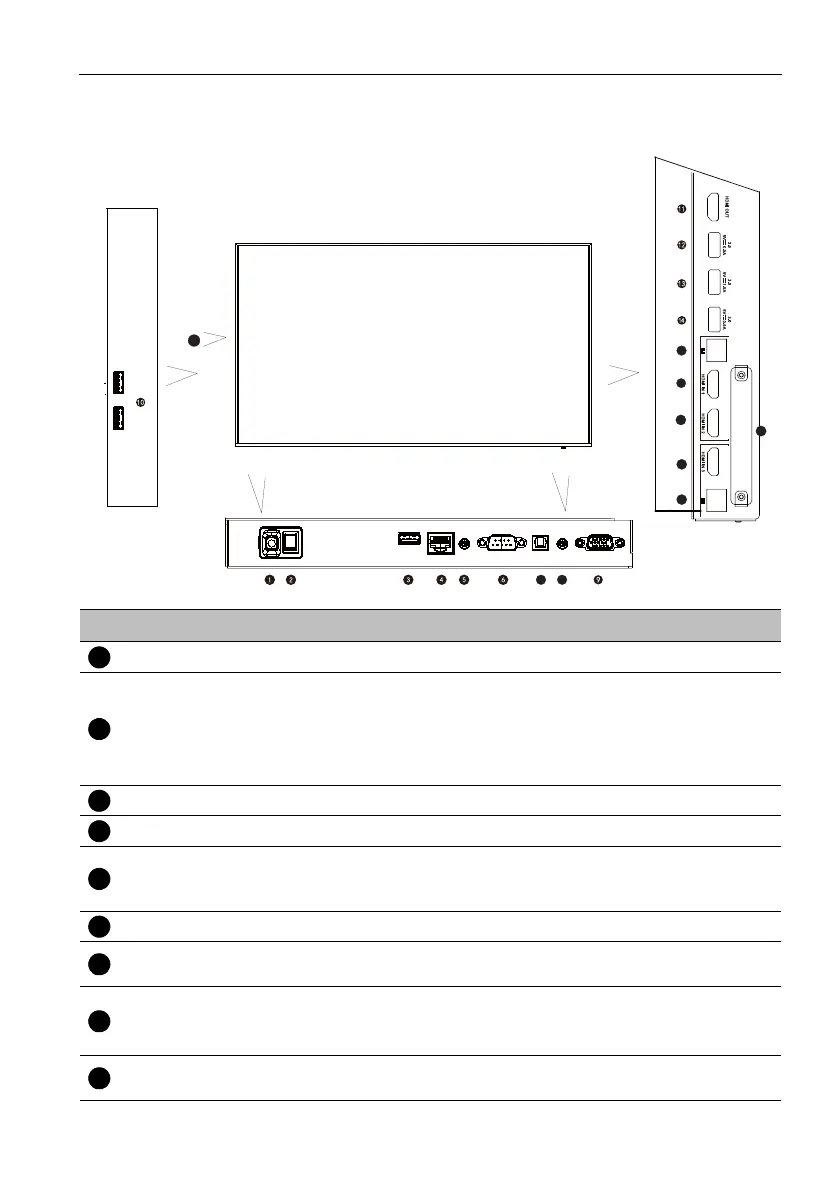

Input/output terminals
No. Name Description
Power-in Connects with the supplied power cord.
Power Switch
Used to isolate the power supply from the system.
• When the switch is set to ON (I), the system will automatically
enter standby mode.
• When the switch is set to OFF (O), this will completely cut off
the power supply.
USB 2.0 Connects the dongle to pair with the remote control.
LAN 10/100/1000 Mbps, connecting RJ45 terminals.
AUDIO OUT
Connects to an external audio device (such as a speaker, stereo
system, or headphone) to output the audio that is supplied by the
video source.
RS232 Serial interface, used for mutual transfer of data between devices.
SPDIF
Connects the SPDIF cable from external devices to the display for
audio in.
AUDIO IN/MIC IN
• AUDIO IN: Receives audio signals from an external device.
• MIC IN: Connects to a microphone (integrated amplifier with
power).
VGA
Receives analog RGB signals from an external device (such as a
computer).
To Next Page
