BenQ W1050 - Projector Exterior View; Component Identification

Introduction10

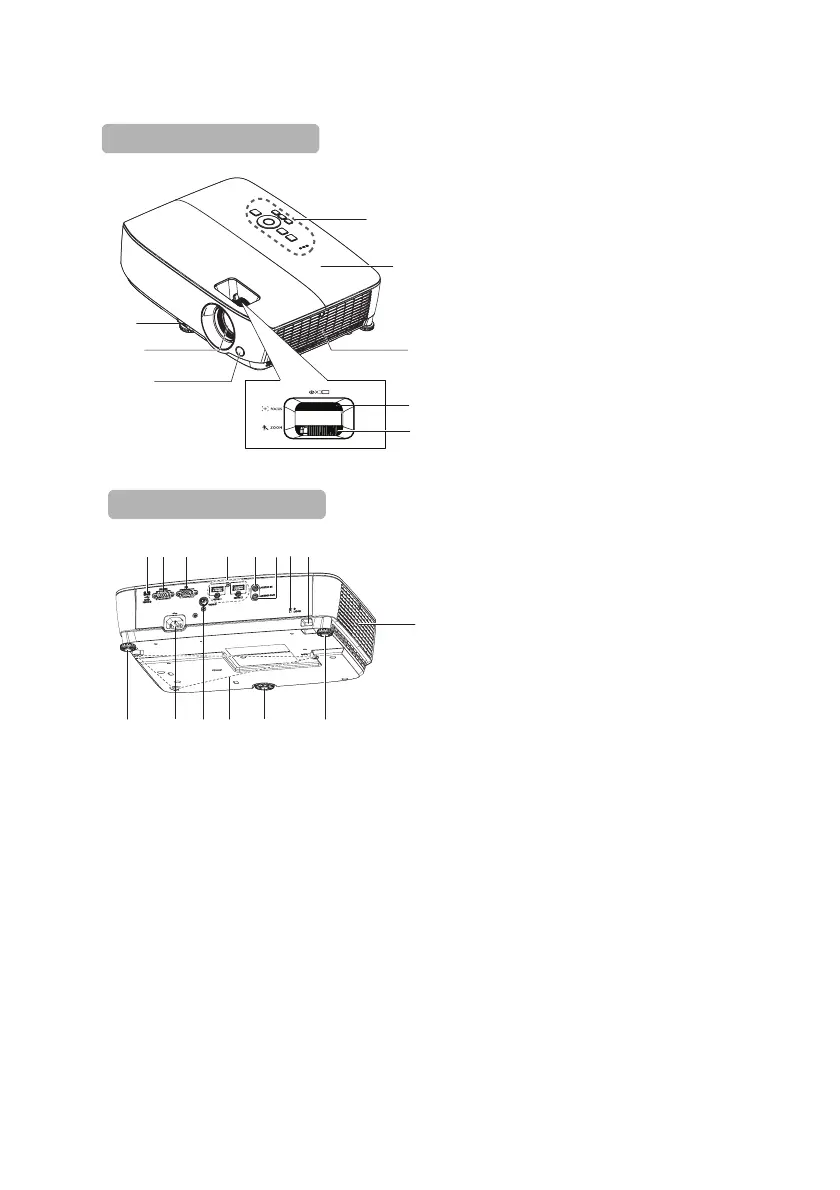

Projector exterior view
1. External control panel
(See "Projector" on page 11 for
details.)
2. Lamp cover
3. Vent (air inhale)
4. Focus ring
5. Zoom ring
6. Front IR remote sensor
7. Projection lens
8. Quick-release lever
9. USB mini-B input jack
10. RS-232 control port
11. RGB (PC) signal input jack
12. HDMI input jack
13. Audio input jack
14. Audio output jack
15. Kensington anti-theft lock slot
16. Security bar
17. Vent (heated air exhaust)
18. Rear adjuster foot
19. Front adjuster foot
20. Ceiling mount holes
21. Video input jack
22. AC power cord inlet
1
2
7
6
8
4
5
3
Front/upper side
9
10 11
12
13 14
15
16
17
1819
18
2021
22
Rear/lower side
