Multifunction Control Panel

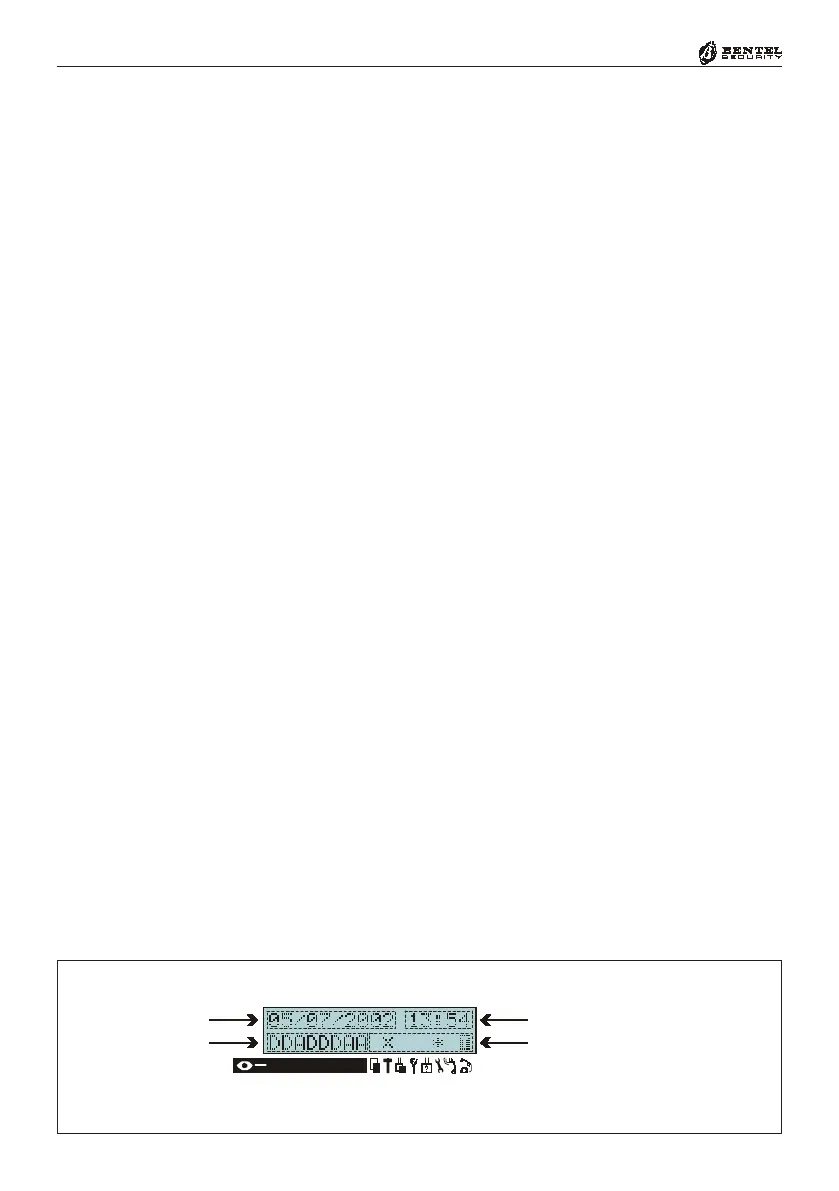

Figure 1 - An example of the Display during Standby status
The Liquid Crystal Display (LCD)
During Standby status the display will show:
1st line: Date and Time
2nd line: Partition status (4 or 8 Partitions depending on the system). This line
will also show:
z Trouble and Tamper —
ûû
ûû
û will be shown above the respective icon;
z Special Functions —
**
**
* will be shown above the respective icon ( t
or r );
z Telephone Line status — ÿ will be shown above the i icon.
In the example in Figure 1, Partition 3 is armed, the 24h Tamper line is in
Alarm status, Teleservice is enabled and the Telephone line is busy.
