Bentone B 70-3 - 17 Displays and Keys

46
Bentone
PGM
EXIT
(1)
(3)
(2)
(6)
(4)
(5)

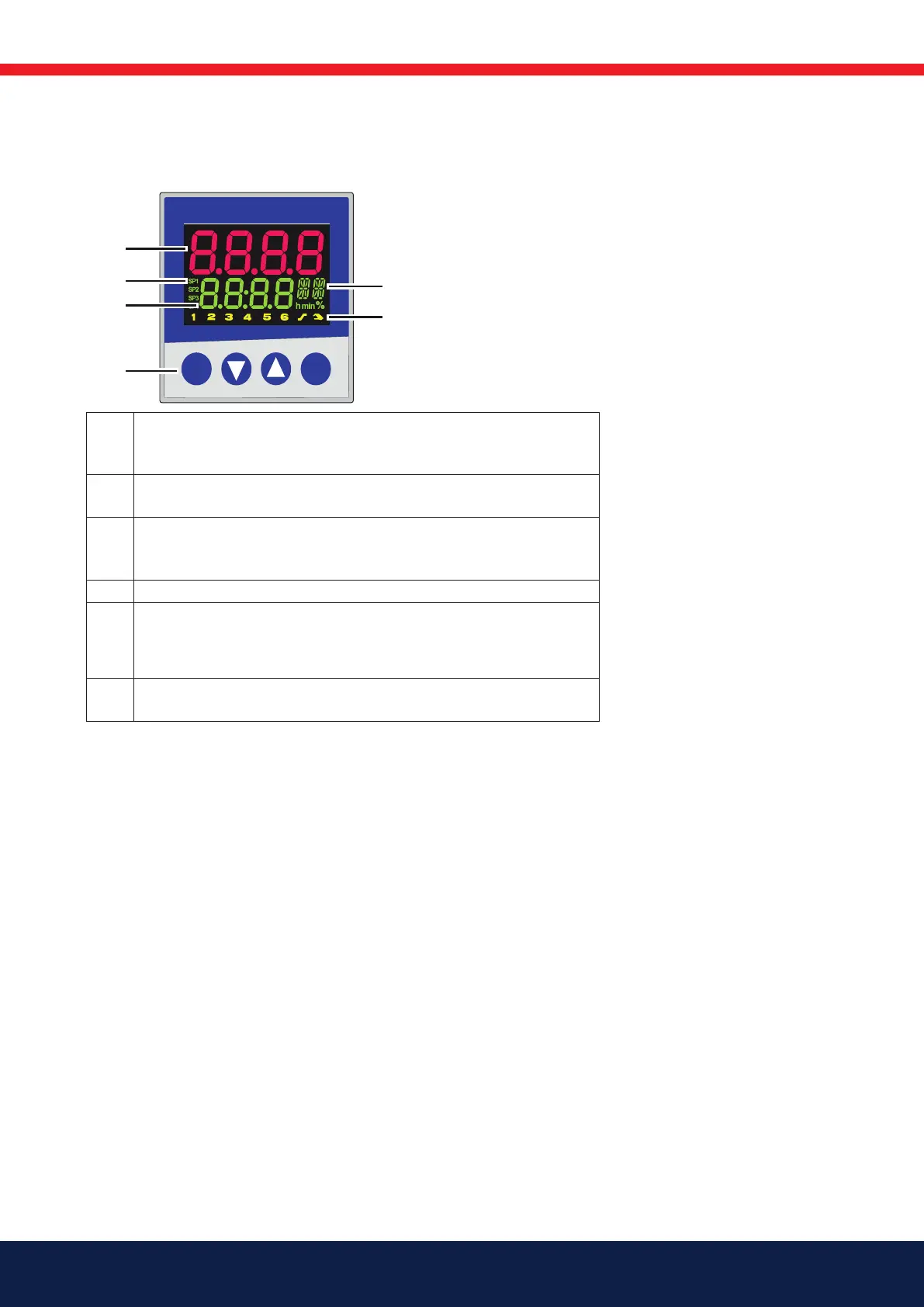

16. Displays and keys
(1) 7-segment display (factory setting: process value)
four-digit, red, decimal place is configurable (automatic adjustment on
display overflow)
(2) Active setpoint (factory setting: SP1)
SP1, SP2, SP3, SP4 (SP=setpoint); green;
(3) 7-segment display (factory setting: setpoint)
four-digit, green, decimal place is configurable; also used for operator
prompting (display of parameter and level symbols)
(4) Keys
(5) Indication
yellow, for - ramp/program function is active
binary outputs 1 ... 6 - manual operation is active
(6) 16-segment display + dim. units
two-digit, green; for the unit °C/°F and symbols for h, min, %
Different values can also be visualized on the display.
see the comprehensive operating manual on the CD
