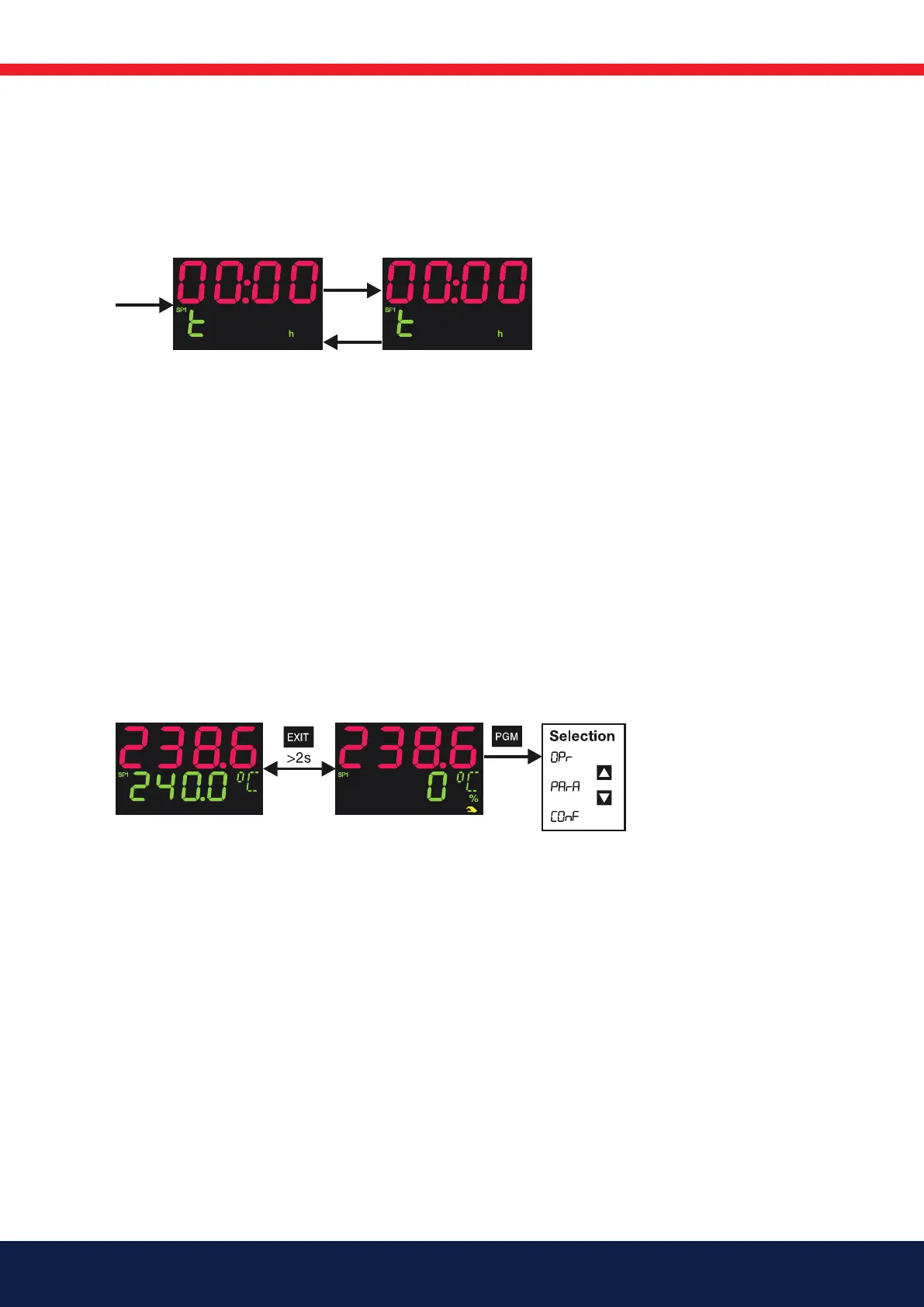

17.3 Entering times
When entering times (e.g. time of timer), the time unit is shown in addition.
The highest time unit of the
display is shown for the unit.
For example, if “h” is show
n for the hour, then the time format for the value is
hh:mm.
h
Select parameter with I or D
h
Change to the entry mode with P (lower display blinks)
h
Alter value with I and D
The value alters dynamically with the duration of the key stroke.
h
Accept the setting with P or automatically after 2 sec
or
h
Cancel entry with X.
The value is not accepted.
ID/
P
I
D
IIIIIIIIIIII
I
I
I
I
I
I
I
I
I
I I I I I I I I I I I I I I
I
I
I
I
I
I
I
I
Select
parameter
Alter
parameter
17.4 Operation of the fixed-setpoint controller
H
The fixed-setpoint controller will only function if
- the fixed-setpoint controller function has been configured ( Fnct = 0)
h Alter the present setpoint
with
I and D
The value is accepted
automatically.
The controller output appears in the
lower display. The hand symbol and the
unit “%” light up in addition.
h Alter the output with
I and D
In the case of a modulating controller,
the actuator is opened or closed using
the keys.
The output entry on a changeover is
configurable.
h Return to the normal display with X
(press for more than 2 seconds)
Normal display
Manual mode
