Bentone B 70-3 - Working Field B 70-3; Setting of Brake Plate and Air Flow

8
Bentone
Burner, Type a b c d
B70-3 3,5-4,0 8,0-10,0 2,0-3,0 10,0-13,0
a
d
b
c
2.2 Working field B 70-3
41-139 kg/h
486-1649 kW

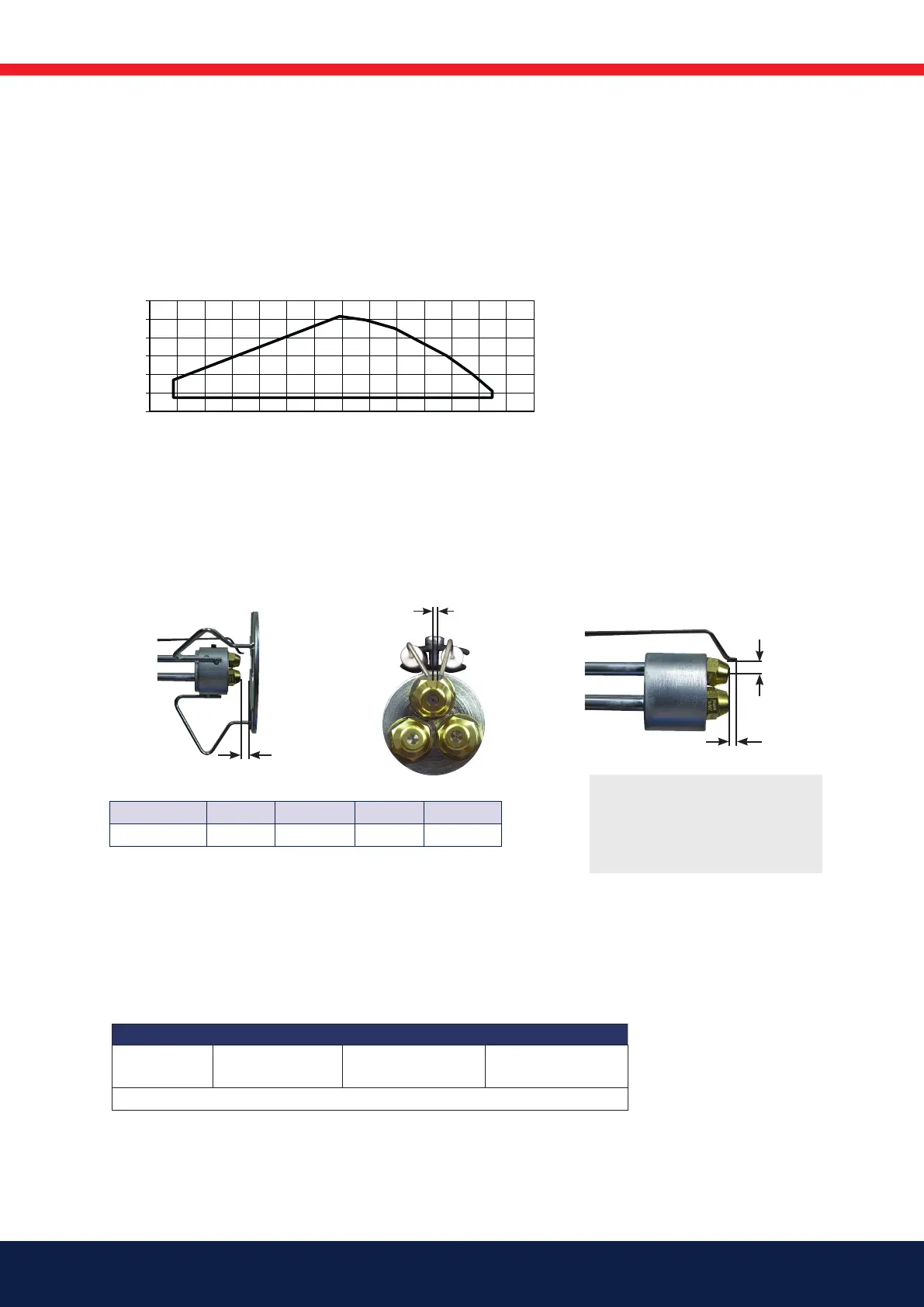

2.3 Setting of brake plate and air flow
2.3.1 Electric Specification
Burner correspond to IP 20
-2
0
2
4
6
8
10
400 600 800 1000 1200 1400 1600 1800
mbar
kW
Type Motor supply Main supply Sound
B 70-3
230/400V
10,4/6,0A
230V 0,7 A 50Hz 89 dBA ± 0,5 dBA
Max operating current, see data plate
!
*NB It is important that
the spark does not strike
against the brake plate or
nozzle
