Bentone B55 - Page 9

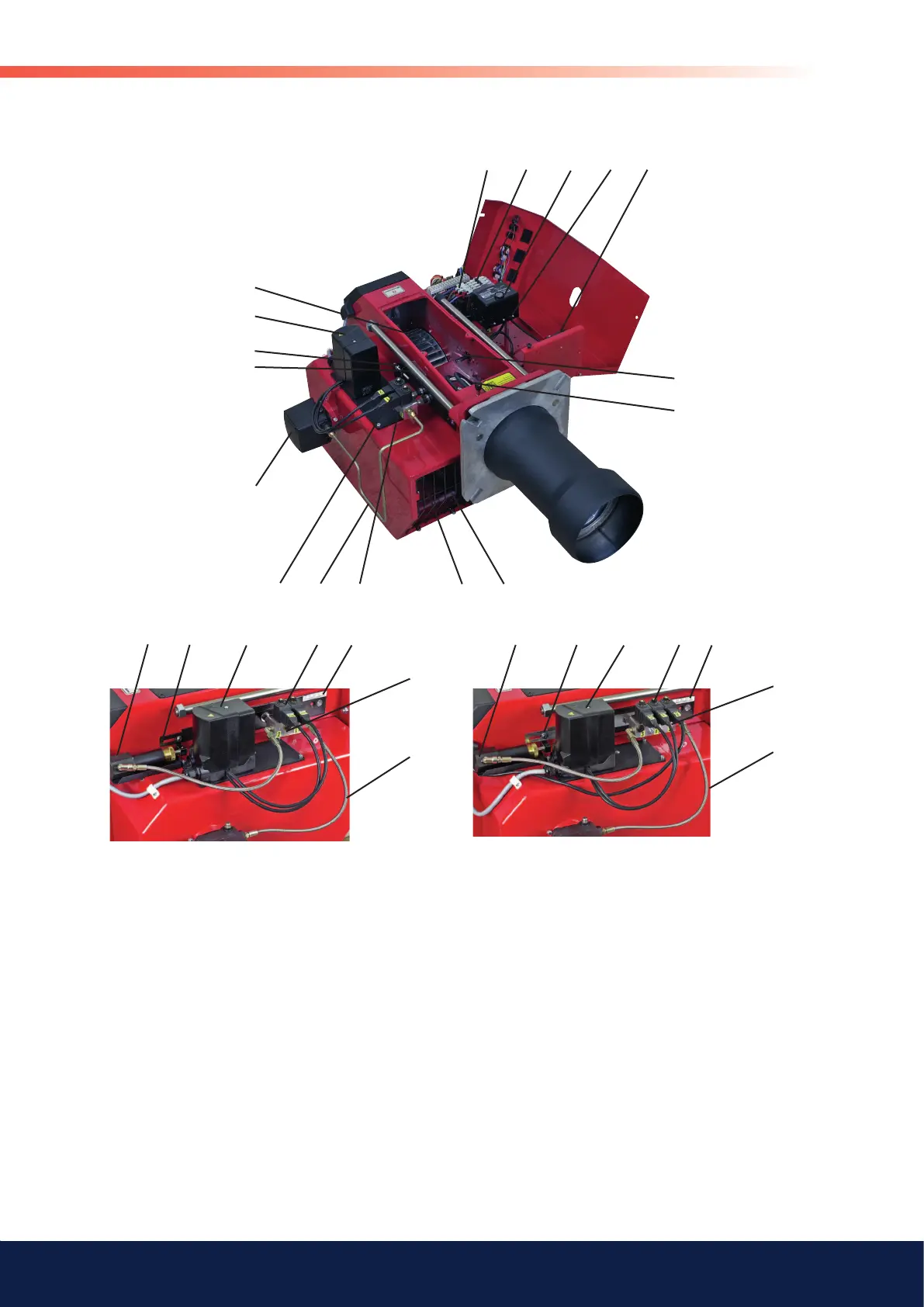

9
Bentone B55/B65
General
16
19
18
9 10
7
8
6
292425a
23a22
30
26a
27a
35
26b31b 22 27b
25a
23b
35
31b 26b
22
27b
25b
23b
35
Components
6. Ignition cablesr
7. Ignition transformer
8. Photocell
9. Control box
10. Front plate, relay base
16. Fan wheel
18. Contactor
19. Thermal overload protection
22. Solenoid valve
23a. Connecting pipe
23b. Hydraulic hose
24. Air intake
25a. Solenoid valve bloc Stage 2
25b. Solenoid valve bloc Stage 3
26a. Nozzle assembly adjustment
fixed
26b. Nozzle assembly adjustment
hydrauli
27a. Scale, air regulation
27b. Scale, Nozzle assembly
29. Air damper
30. Pump
31b. Adjustment device, Nozzle
assembly
35. Damper motor
Description B55/B65
