Bentone B55/B65
General
1. GENERAL

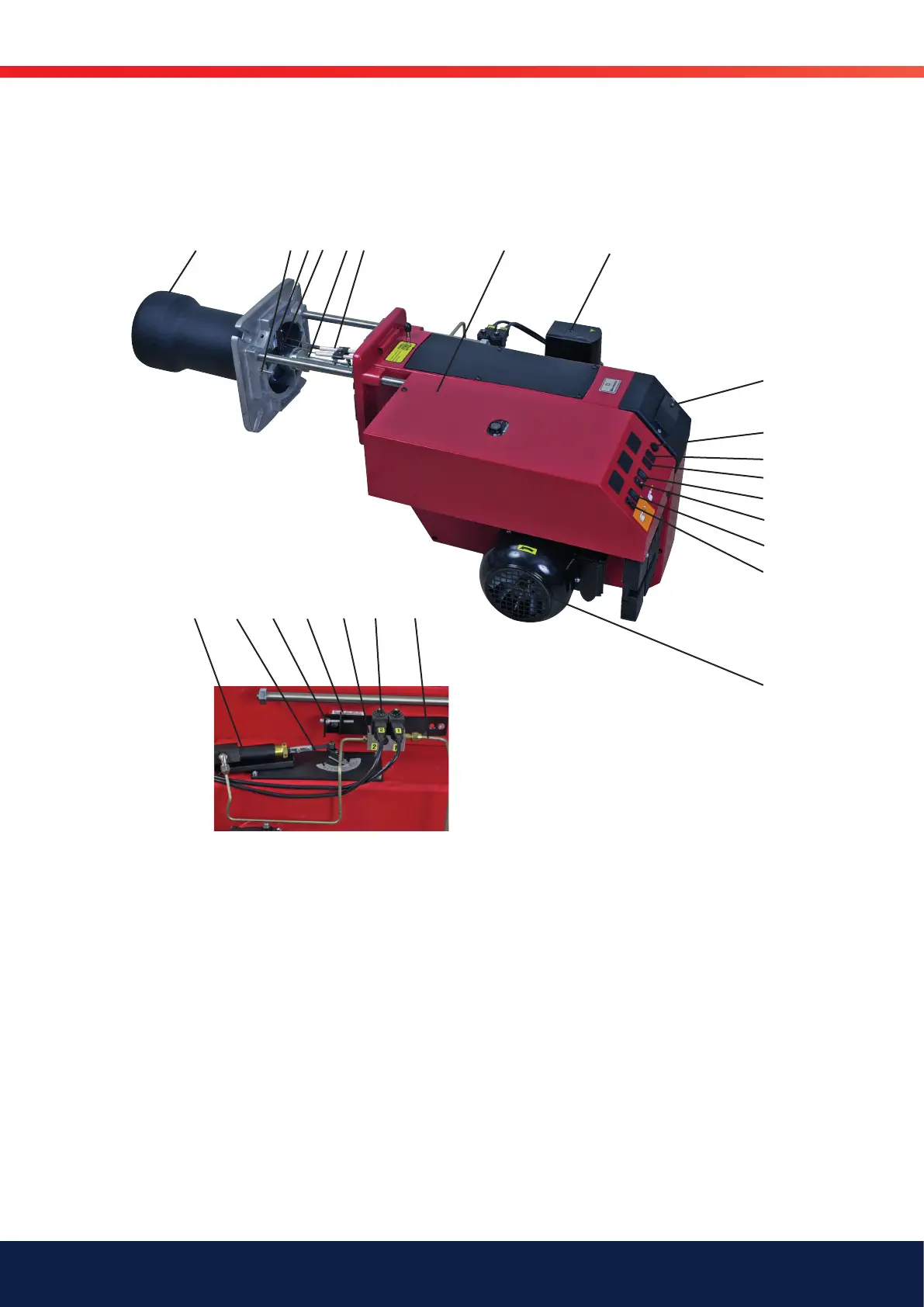

1.1 Description B55/B65
31a 27a
26a
27b
25a
22 23a
21
1
2
3 4 5 17
13
34
33
32
12
11
14
15
20
35
Components
1. Flame cone
2. Brake plate
3. Nozzle
4. Nozzle assembly
5. Ignition electrodes
11. Switch l-ll
12. Indicating lamp Stage 2
13. Cover, inspection glass
14. Indicating lamp Stage 1
15. Switch 0-l
17. Electric panel
20. Motor
21. Locking device, flange
22. Solenoid valves
23a. Connecting pipe
25a. Solenoid valve bloc Stage 2
26a. Nozzle assembly adjustment
fixed
27a. Scale, air regulation
27b. Scale, nozzle assembly
31a. Adjustment device, air damper
32. Switch ll-lll
33. Indicating lamp Stage 3
34. Fuse
35. Damper motor
