GAS SOLENOID VALVE MVD
172 505 12 05-01
MVD:

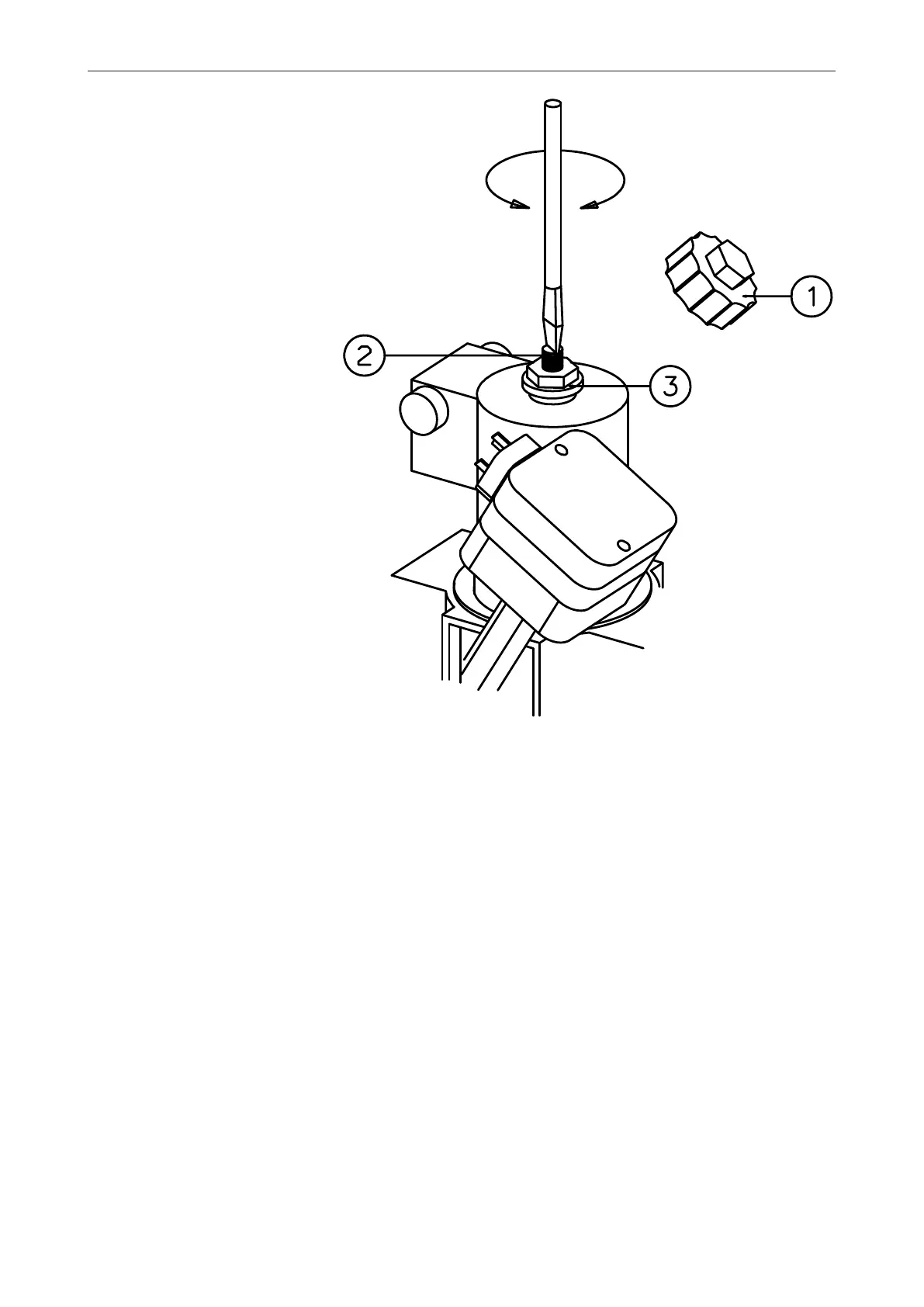

1-step valve fast opening with max. flow adjustment.
1. Protection cover
2. Flow adjustment
3. Lock nut
Flow adjustment MVD/5 Remove protection cover 1. Loosen lock nut 3. Turn the flow adjustment
screw 2 to the right = gas flow decrea-ses or to the left = gas flow
increases. Tighten the lock nut.
